INSTALLATION
INSTRUCTIONS
9518 Instructions 6-26-13.Doc Page 4 of 7

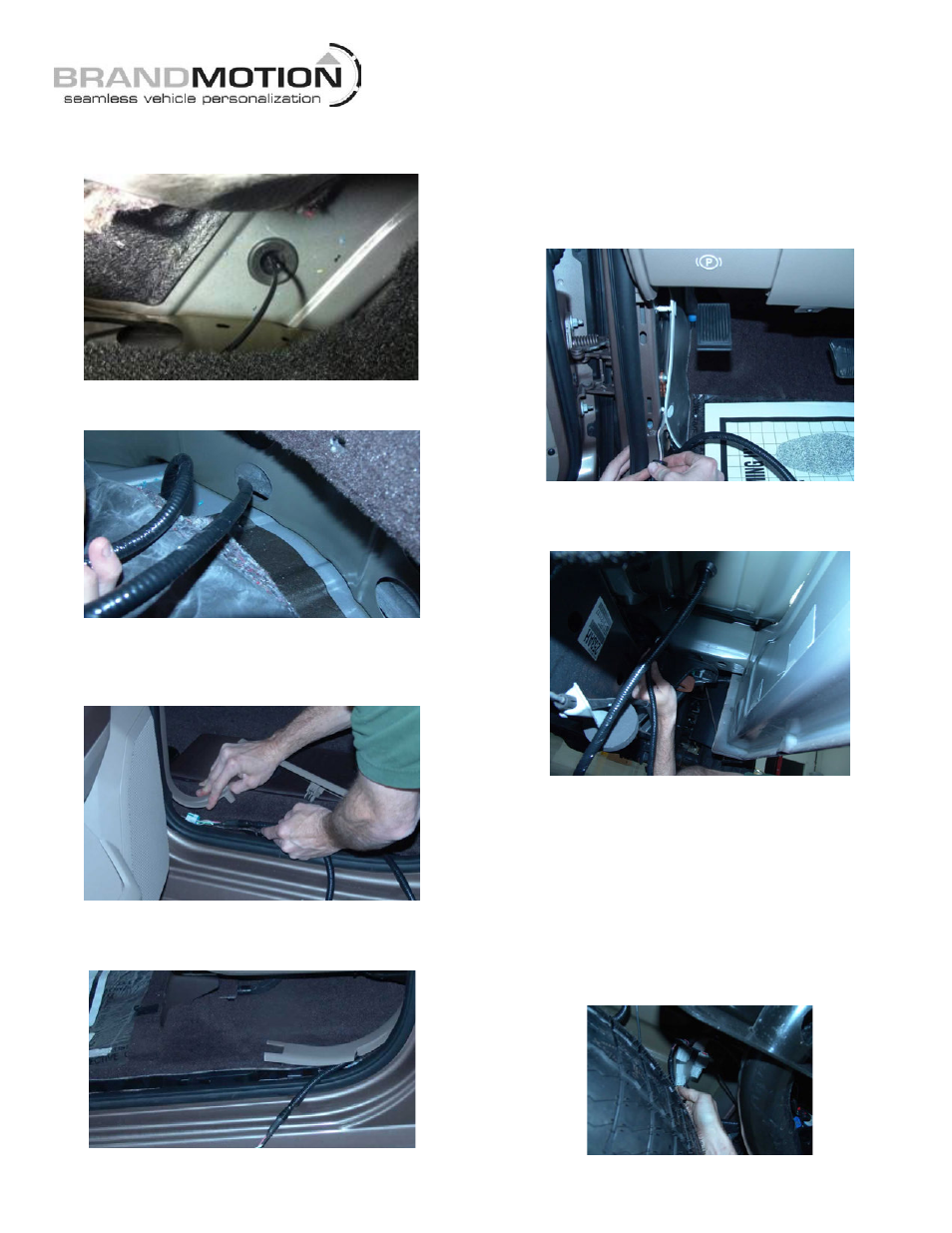

26. Seat grommet affixed to the supplied Chassis
Harness in the body floor plug hole by firmly
pressing it with your fingers.
27. Route the Chassis Harness 6-pin mirror connector
through the seat riser reinforcement hole.
28. Reinstall carpet and reinstall the three pushpins
removed earlier.
29. Route Chassis Harness around B-pillar trim by lifting
up on the trim and feeding harness through to front.
30. Continue to route Chassis Harness along the driver’s
side front door opening sill area. NOTE: This will be
a tight fit, following the existing wiring harness.
31. Reinstall rear sill plate by pressing it back into place
with your hands.
32. Remove driver’s side kick panel insulation pad
retainers using a Pushpin Removal Tool. Route the
supplied Chassis Harness behind the insulation
(between insulation and metal frame) then reinstall
the insulation).
33. Route Chassis Harness behind rear cab mount.
RECOMMENDED: Use a wire tie to secure Chassis
Harness between the cab and bed mount.
34. Continue to route supplied Chassis Harness next to
the existing wiring harness along the inside edge of
the frame rail. RECOMMENDED: Secure supplied
Chassis Harness to the existing wiring harness with
wire ties.
35. Once the Chassis Harness has been routed to the
rear of the truck bed, coil and secure any excess
length on the harness and tuck above the spare tire.
Secure with Wire Ties (recommended).
36. Plug Camera Harness connector into the Chassis
Harness connector at the rear of the vehicle.
