INSTALLATION
INSTRUCTIONS
9518 Instructions 6-26-13.Doc Page 3 of 7
17. Taking care not to damage the Camera Harness,
reinstall tailgate by lifting it into place, rotating it
down about ten degrees, and sliding it to the left.
18. Reinstall both tailgate straps by placing the large
opening of the tailgate strap hangers over the
tailgate strap mounts and pulling down.
19. Seat the Camera Harness grommet in the pass
through hole you drilled in the end of the pickup bed
using your fingers.
20. Plug in the tailgate power lock harness connector
(removed in Step 2) and slide the red tab to the
locked position. Reinstall the black plastic filler panel
at rear of pickup bed adjacent to the license plate.
Install Chassis Harness

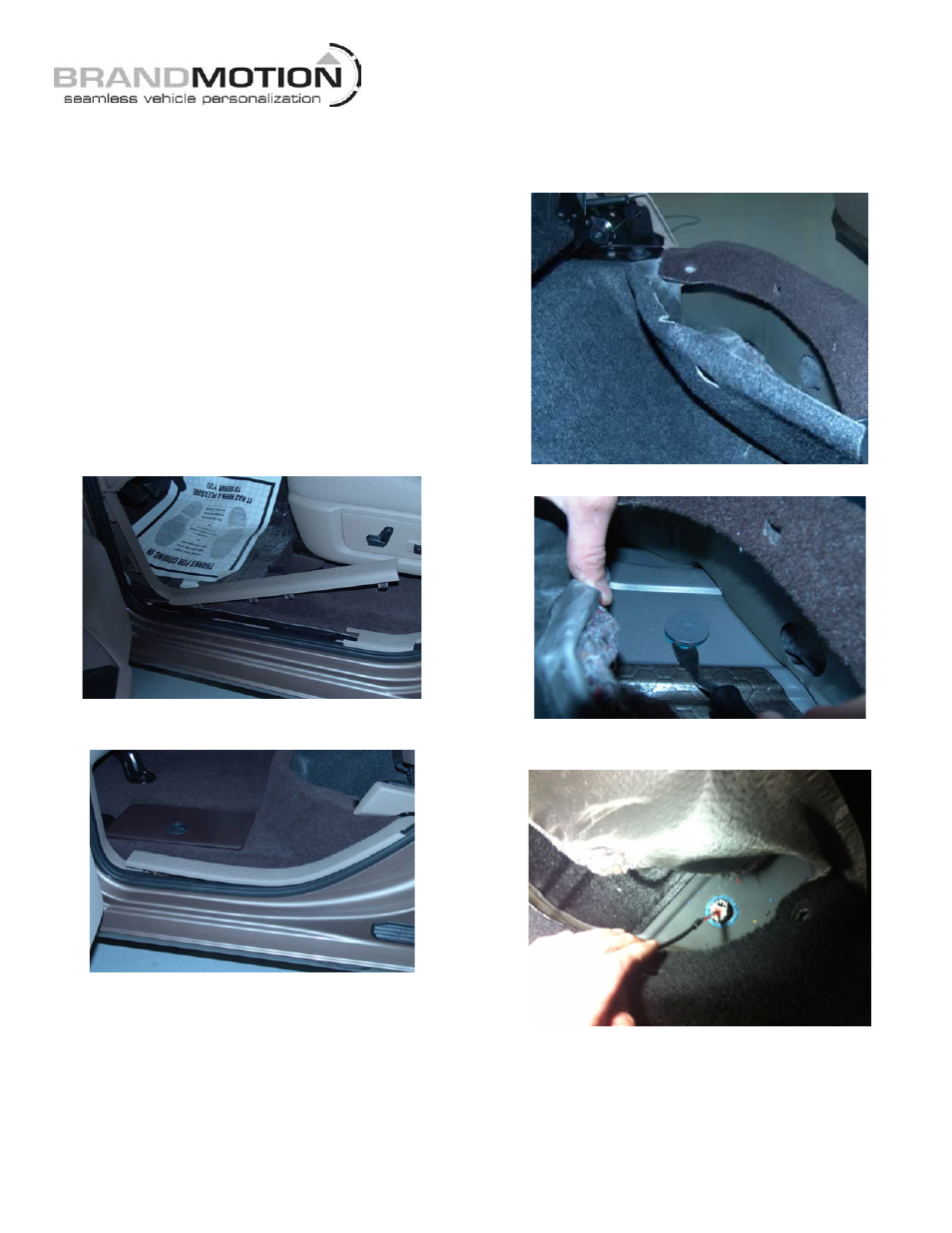

21. Remove front driver’s side kick panel/sill plate by
lifting it at the rear and working your way forward
with your hands.
22. Remove rear driver’s side sill plate by lifting it at
front and working your way back with your hands.
23. Lift driver’s side rear seat to expose the under seat
storage compartment. Pull three pushpins out of the
driver’s side rear seat storage compartment using a
pushpin removal tool.
24. Pull back carpeting and remove the body floor plug.
25. Insert the large gray connector end of the supplied
Chassis Harness into the body floor plug hole.
