Rockwell Automation 1769-L23E-QB1B_L23E-QBFC1B_L23-QBFC1B CompactLogix Packaged Controllers Quick Start and User Manual User Manual
Page 36
36
Publication IASIMP-QS010B-EN-P - October 2009
Chapter 2 Prepare the Computer, Network, and Controller

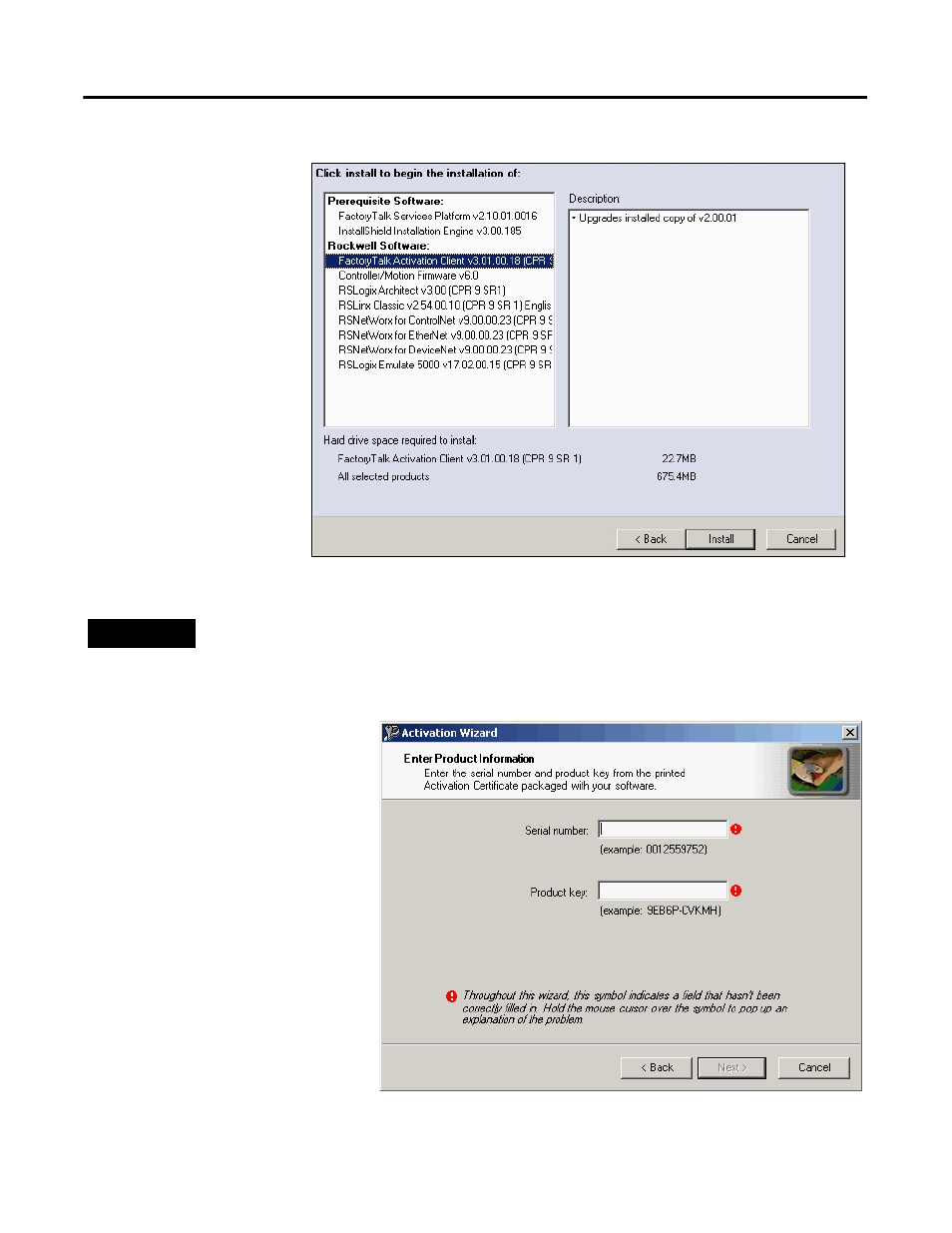

13. Click Install to
complete the
installation.
The installation
dialog box displays
progress while the
software installs.
TIP
As the installation progresses, you may be prompted to complete additional set-up tasks depending on
your system configuration. Follow those prompts and enter information as indicated in the dialog boxes to
complete your installation.
After a few moments, the
FactoryTalk Installation
Wizard starts.
14. Click Next.
15. Enter the Serial number
and Product key from the
certification letter packaged
with your software.
16. Click Next.
