104 Publication IASIMP-QS010B-EN-P - October 2009
Chapter 6 Add a PanelView Plus 600 Terminal

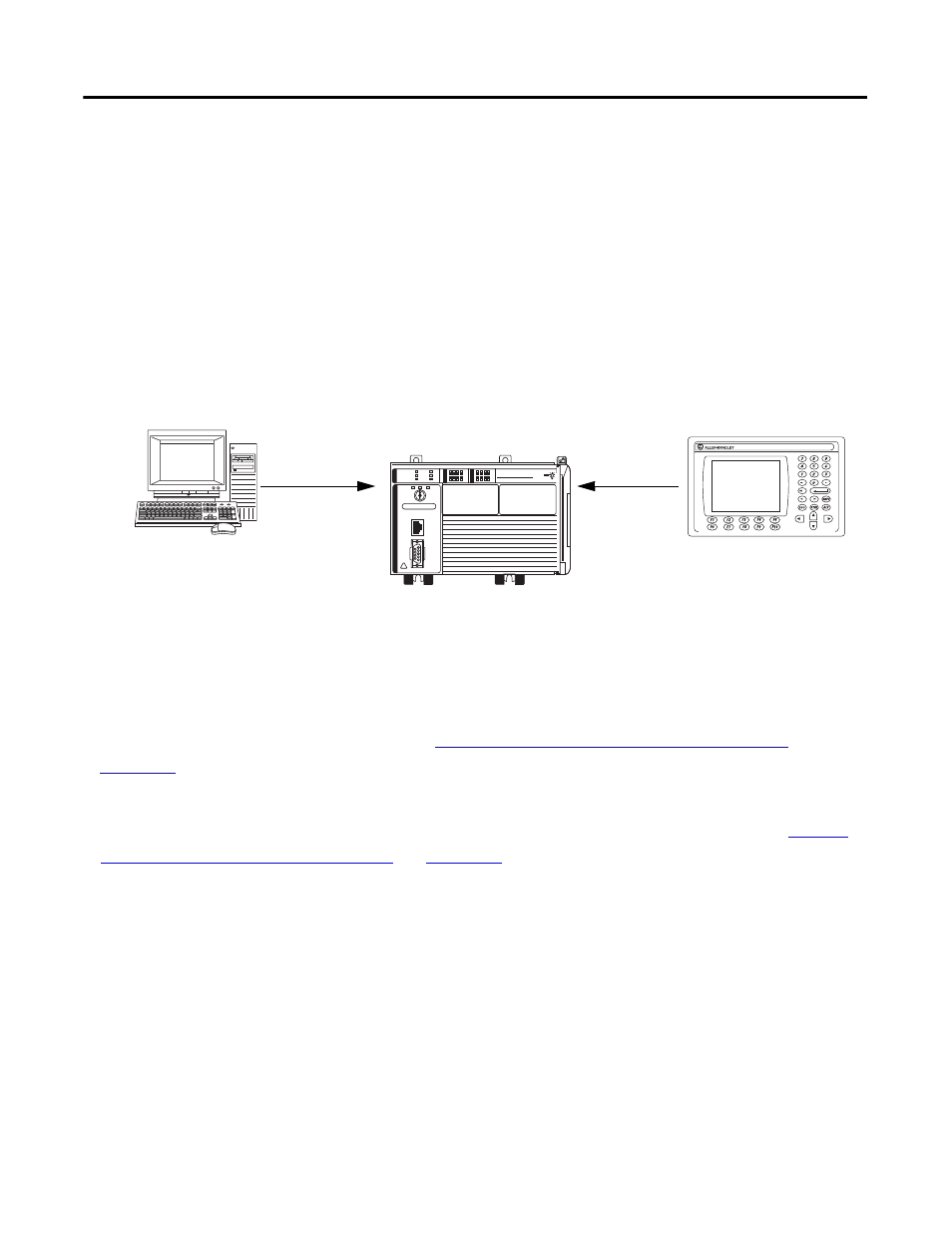

About the Design(Local) and Runtime(Target) Paths
PanelView Plus 600 PanelView Plus 600
CompactLogix L23E
• The Design(Local) tab defines the path from the computer to the controller. The local path is the
communication path used when in Test Run mode and when browsing tags during online application of an HMI
display.
• The Runtime(Target) tab defines the path from the PanelView Plus terminal to the controller. The PanelView
Plus terminal also needs to communicate with the controller, but sometimes a different path is used.
Computer
Controller
Terminal
Runtime(Target) Design(Local)
If you are using an Ethernet network (that is, either a 1769-L23E-QB1B or
1769-L23E-QBFC1B controller), go to
Create Device Shortcuts to the Controller on
page 105 .
If you are using an serial network (that is, a 1769-L23-QBFC1B controller), go to Create
Device Shortcuts to the Controller on page 107 .
