6-6 MD60 AC Drive User Manual
2 Wire SRC Control - Run
FWD/Run REV
P036 (Start Source) = 2, 3,
or 4
Input must be active for the
drive to run. When input is
opened, the drive will stop as
specified by PO37 (Stop
Mode).
If both Run Forward and Run
Reverse inputs are closed at
the same time, an
undetermined state could
occur. Internal Supply (SRC) External Supply (SRC)
2 Wire SNK Control - Run
FWD/Run REV Internal Supply (SNK)
3 Wire SRC Control -
Non-Reversing
P036 (Start Source) = 1
A momentary input will start
the drive. A stop input to I/O
Terminal 01 will stop the
drive as specified by P037
(Stop Mode). Internal Supply (SRC) External Supply (SRC)
3 Wire SNK Control - Non-
Reversing Internal Supply (SNK)
3 Wire SRC Control -
Reversing
P036 (Start Source) = 1
A momentary input will start
the drive. A stop input to I/O
Terminal 01 will stop the
drive as specified by P037
(Stop Mode). I/O Terminal 03
determines direction. Internal Supply (SRC) External Supply (SRC)
Input/Output Connection Example

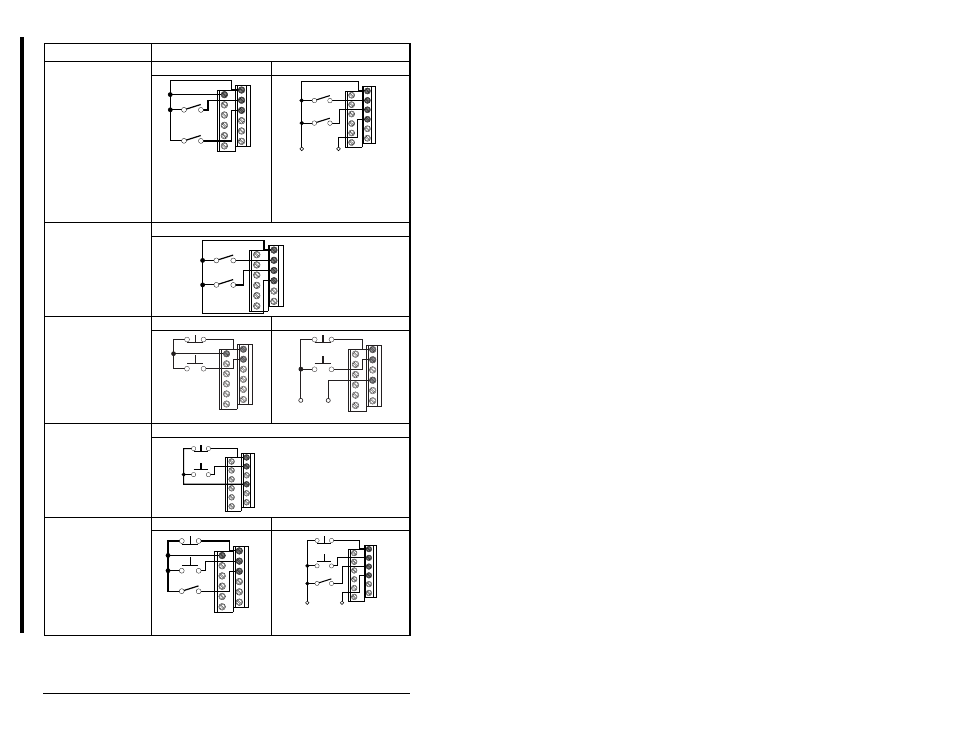

Figure 6.2 – I/O Wiring Examples
11 01
02
03
Stop-Run
Forward
Stop-Run
Reverse Common
01
02
03
04
Stop-Run
Forward
Stop-Run
Reverse
+24V
Stop-Run
Forward
Stop-Run
Reverse
01
02
03
04
11 01
02
Stop
Start
01
02
04
+24V Common
Stop
Start
Stop
Start
01
02
03
04
11 01
02
03
Stop
Start
Direction
+24V Common
Stop
Start
Direction
01
02
03
04
