Rockwell Automation FlexPak 3000 DC Drive Version 4.3 User Manual
Page 43

Install and Wire the Drive
2-29
2.5.5.1 Wire the COAST/STOP Digital Input
The user must provide an external operator-accessible coast/stop pushbutton at
terminals 7 and 8 on the Regulator board to disable the machine in case of improper
operation. Uncontrolled machine operation might result if this is not done.
The customer interlock is a software-based stop function unless wired in series with
the coast/stop input. Any safety-related stops must be wired through the coast/stop
input. Use the following procedure to wire the coast/stop input.
Step 1. Remove the two screws from the drive cover. See figure 2.23.

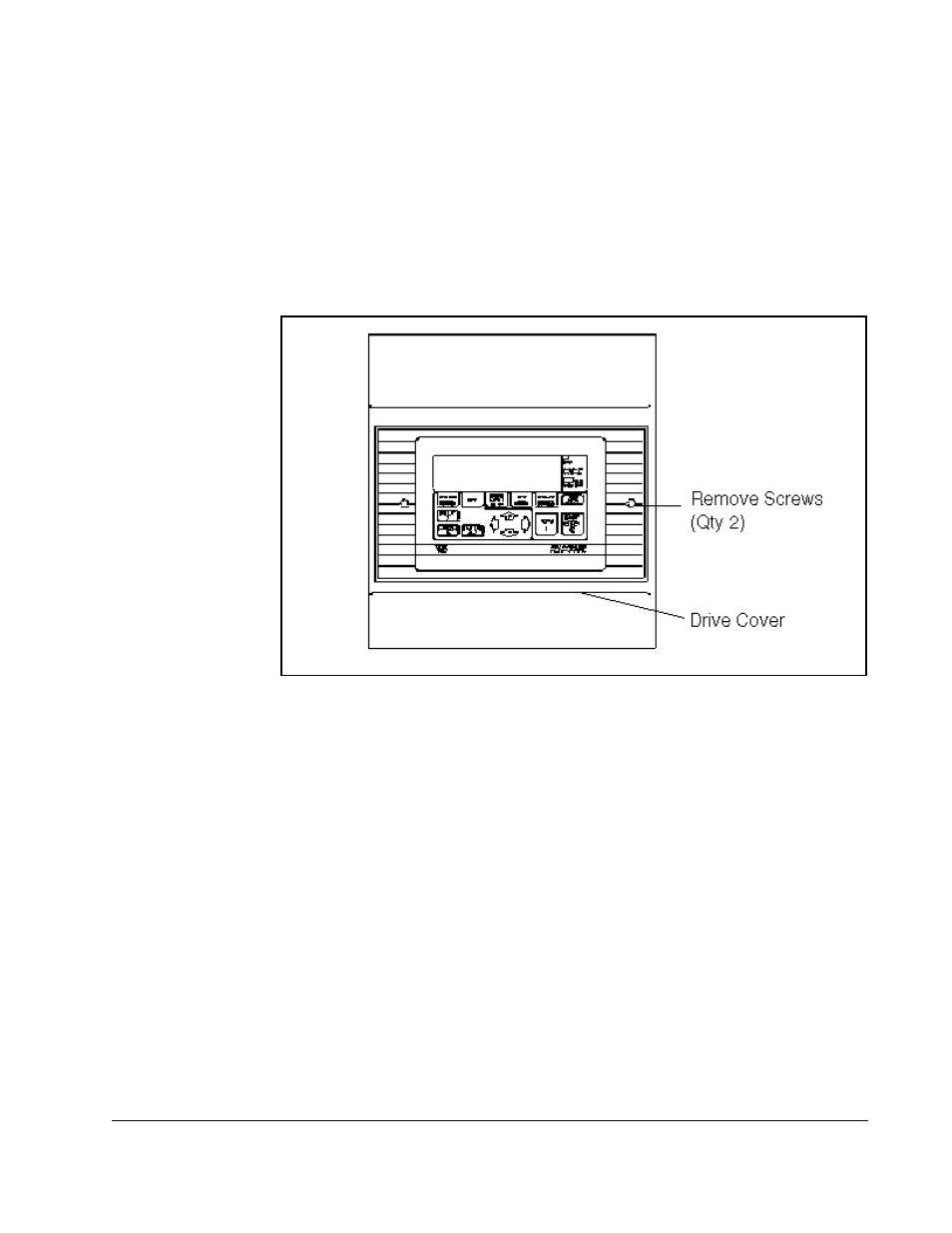

Figure 2.23 – Drive Cover Removal
Step 2. Locate the terminal strip (1 to 32) at the bottom of the regulator board. See
figure 2.25.
Step 3. Connect a normally closed Coast/Stop pushbutton to terminals 7 (+24V) and
8. See figure 2.24.
Step 4. Tighten these terminal connections to a torque not to exceed 7 lb-in (0.8
Nm).
2.5.5.2 Compliance with EN 60204-1: 1992
This section applies to users who must comply with EN 60204-1: 1992, part 9.2.5.4,
Emergency Stop.
In order to fully comply with EN60204-1: 1992, part 9.2.5.4, at least one of the stop
methods must be a category 0 stop. See section 2.6.5 for more information.
