Introduction to the FlexPak 3000 Drive
1-3
The drive employs a wireless construction and uses a keypad for drive setup,
including parameter adjustments and unit selection, monitoring, and diagnostics.
Multiple language capability in English, French, German, Spanish, Italian and
‘Numeric Code' is available. Reference, feedback, and metering signals can be
interfaced to the drive. The drive can be controlled locally by the Operator Interface
Module (OIM) keypad or remotely by using the terminals at the regulator board
terminal strip. You can select one of the following active control sources using the
CONTROL SOURCE SELECT key:
•
KEYPAD
•
TERMBLK (regulator board terminal strip)
•
NETWORK (if an optional network communication board is installed)
•
SERIAL (CS3000).

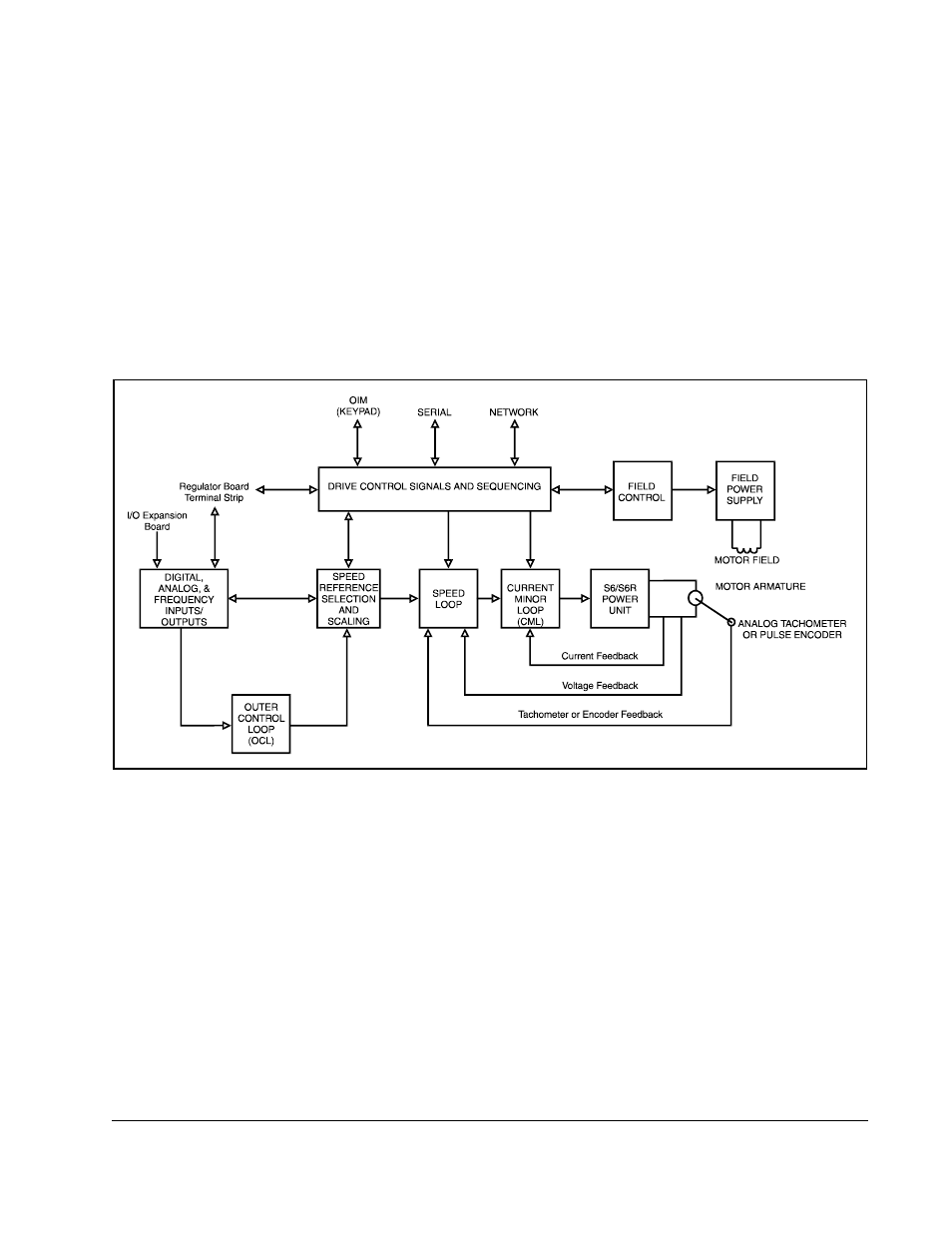

Figure 1.3 – FlexPak 3000 Functional Block Diagram
1.5
Additional Information
Refer to the following publications as necessary for more information.
•
D2-3405
FlexPak 3000 DC Drives Software Start-up and Reference Manual
•
D2-3344
FlexPak 3000 Operator Interface Module (OIM) User Guide
•
D2-3348
Control and Configuration Software (CS3000)
•
D2-3412
DC Contactor Use with Integrator Drives
