Wire the module – Rockwell Automation 1756-Enxxx_Ewxxx EtherNet/IP Modules Installation Instructions User Manual
Page 48
48
Rockwell Automation Publication ENET-IN002F-EN-P - January 2014
Chapter 2 Install a 1768 EtherNet/IP Communication Module

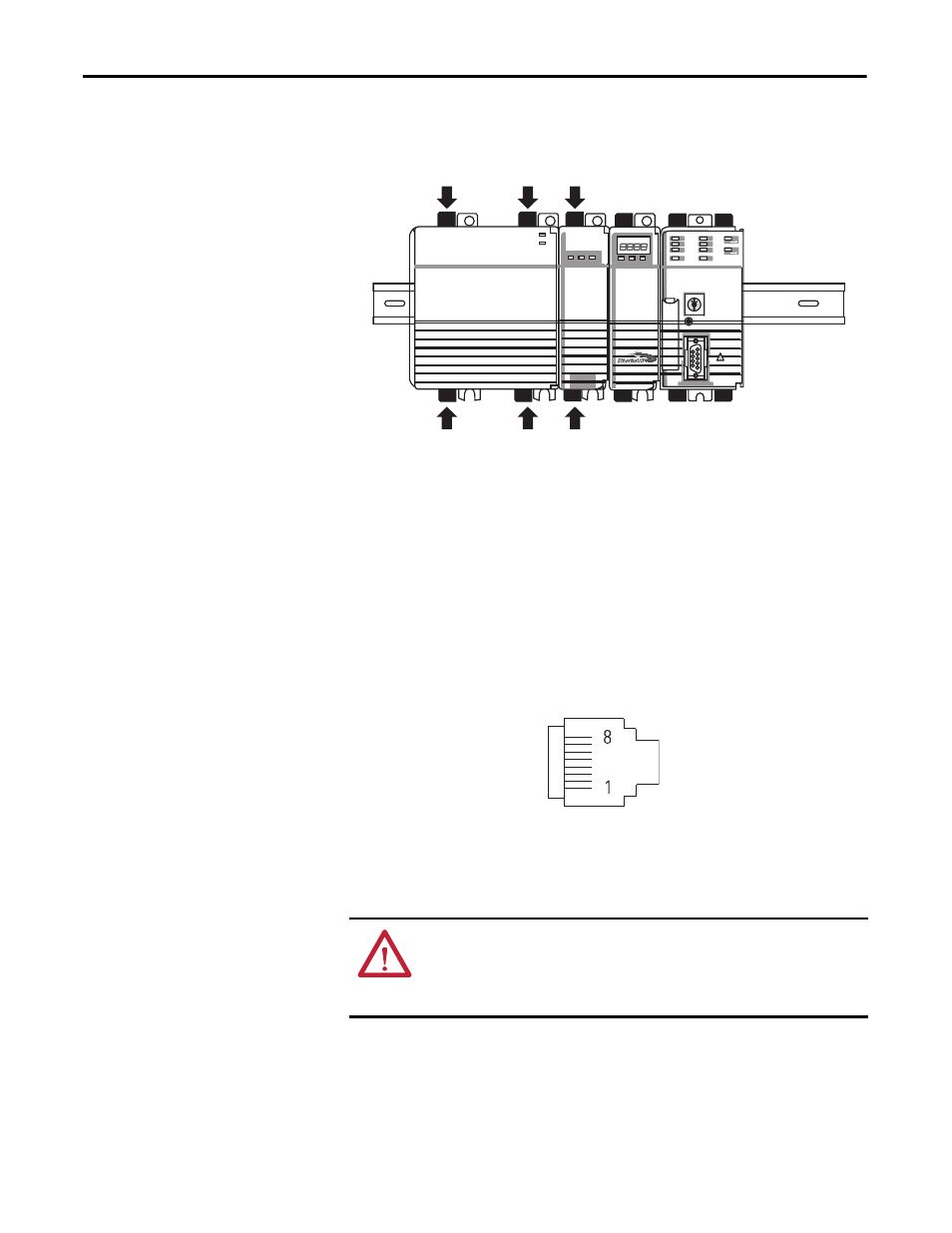

5. Mount the 1768 power supply and additional 1768 modules to the left of
the controller.
6. Close the DIN rail latches.
In this example, the 1768 EtherNet/IP communication module is installed in
slot 1 and the 1768 CompactLogix controller is installed in slot 0.
Wire the Module
Use the following information to wire the module.
Connect the Module to an EtherNet/IP Network via an RJ45
Connection
Wire the RJ45 connector as shown.
Follow these steps to connect the module to the network.
31599-M
WARNING: If you connect or disconnect the communication cable with power
applied to this module or any device on the network, an electrical arc can
occur. This could cause an explosion in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
8 ------ NC
7 ------ NC
6 ------ RD-
5 ------ NC
4 ------ NC
3 ------ RD+
2 ------ TD-
1 ------ TD+
