C-4 FanMaster Screens and Field Descriptions
Allen-Bradley® FanMaster™ Energy Saving Package Installation Manual - Publication FANM-IN001B-EN-P – December, 2009 PN-65329

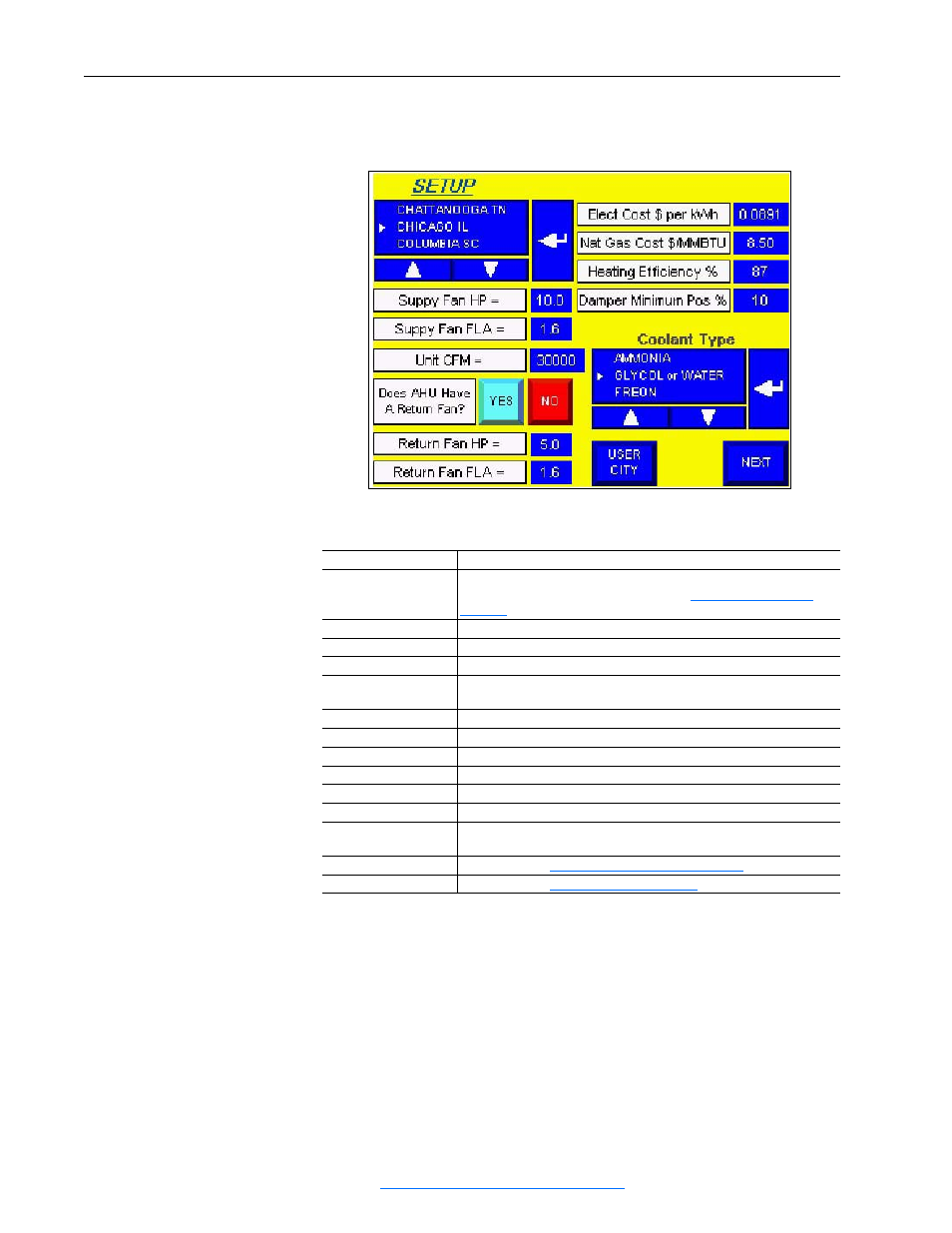

Setup Screen #1 The first Setup screen is used to enter data required to configure the
FanMaster for your installation.
Table C.C Setup Screen #1 Fields
Field Name Description
(City, State/Country) City and State location selection. Choose the city and state / country using
the up or down and Enter arrow buttons. See
City Climate Profiles on
page A-3 for a complete list of available cities.
Supply Fan HP Supply fan motor rated horsepower
Supply Fan FLA Supply fan motor rated full load amps.
Unit CFM AHU air flow volume.
Does AHU Have A
Return Fan? Return fan installed selection.
Return Fan HP Return fan motor rated horsepower
Return Fan FLA Return fan motor rated full load amps.
Elect Cost $ per kWh Electricity cost in dollars per kilowatt hour.
Nat Gas Cost $/MMBTU Natural gas cost in dollars per one million BTUs.
Heating Efficiency %
Percentage of heating efficiency.
Damper Minimum Pos % Outside air damper minimum open percentage.
(Coolant Type)
AHU coolant type. Choose the coolant type using the up, down and Enter
arrow buttons.
User City Press to view the User City Weather Data Setup Screen .
Next Press to view the Setup Date and Time Screen .
