FanMaster Diagrams B-13
Allen-Bradley® FanMaster™ Energy Saving Package Installation Manual - Publication FANM-IN001B-EN-P – December, 2009 PN-65329

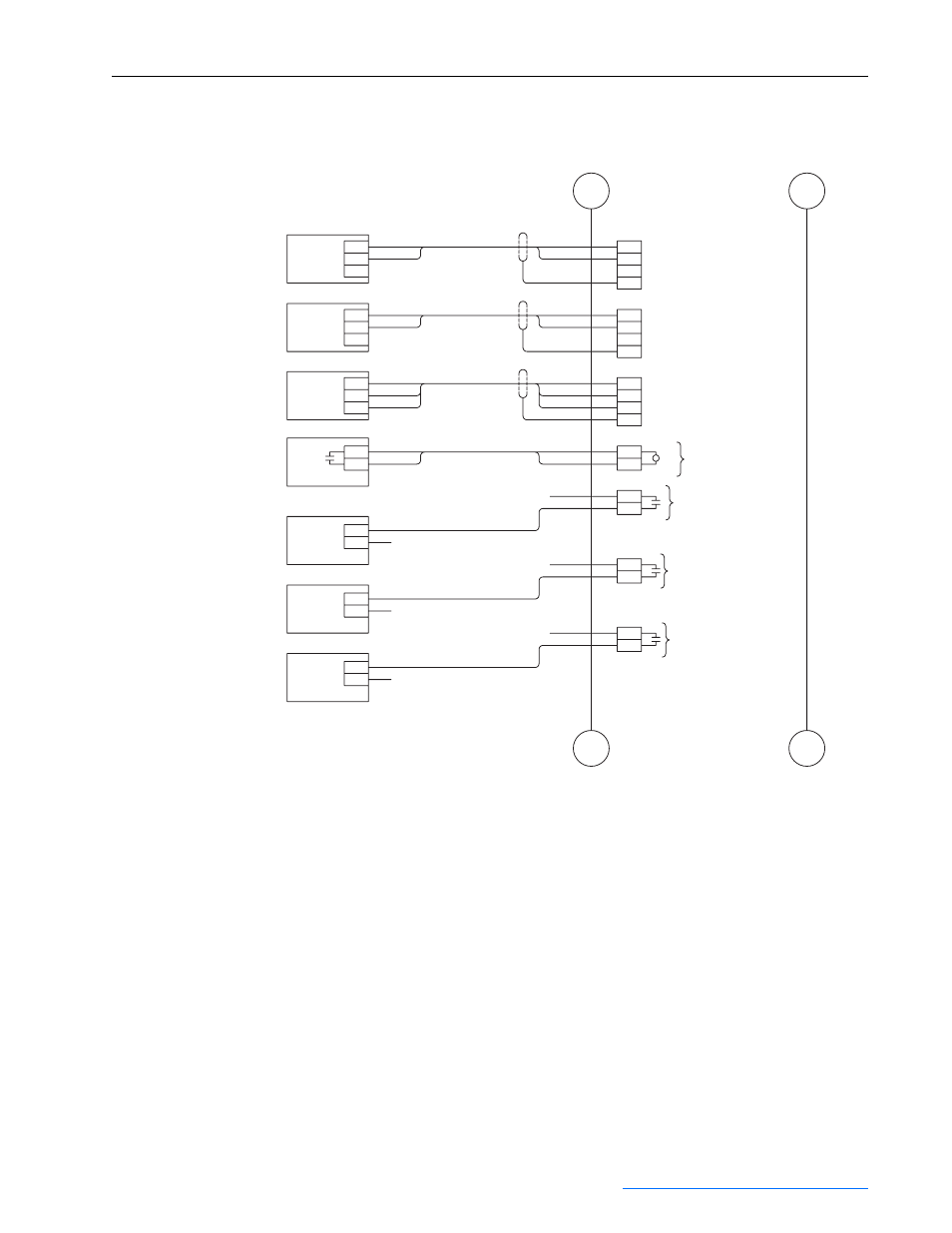

Figure B.12 Interconnect Diagram - Sheet 2
FanMaster
B B
To Sheet 3 To Sheet 3
TB2
Signal = 4-20 mA
Supply Air
Temperature Sensor
Power
Out
Com
100
123
102
124 Supply Air Temp. Sensor +24V DC
Supply Air Temp. Sensor Signal Input
A A
From Sheet 1 From Sheet 1
Mixed Air
Temperature Sensor
Power
Out
Com
Signal = 4-20 mA
Signal = 4-20 mA Carbon Dioxide Sensor
BAS Start/Stop
24 V or 120 V AC = Run (1)
Customer Fan Proof of
Running Relay (Optional)
Customer Carbon Dioxide
Alarm Horn or Beacon
(Optional)
Customer FanMaster
Not Faulted Relay
(Optional)
Power
Out
Com
Signal = 24V or 120V AC
Line
Com
Line
Com
Line
Com
Customer Supplied Line
Signal = Customer Selected
Customer Supplied Neutral
Customer Supplied Line
Signal = Customer Selected
Customer Supplied Neutral
Customer Supplied Line
Signal = Customer Selected
Customer Supplied Neutral
Supply Air Temp. Sensor Common
Shield
Mixed Air Temp. Sensor +24V DC
Mixed Air Temp. Sensor Signal Input
Mixed Air Temp. Sensor Common
Shield
100
125
102
126
TB2
TB2
100
127
102
128 Carbon Dioxide Sensor +24V DC
Carbon Dioxide Sensor Signal Input
Carbon Dioxide Sensor Common
Shield
BAS Start Fan Command Input
159
160
TB2
A2
A1
CR4
TB2
113
114
Fan Proof of Running Output
High Carbon Dioxide Alarm Output
TB2
117
118
FanMaster Not Faulted Output
TB2
121
122
Note: All Power, I/O and signal wire is customer supplied.
(1) CR4 in FanMaster to be 700-HK32A24 for 24V AC
or 700-HK32A1 for 120V AC BAS Start Signal.
