FanMaster Screens and Field Descriptions C-15
Allen-Bradley® FanMaster™ Energy Saving Package Installation Manual - Publication FANM-IN001B-EN-P – December, 2009 PN-65329

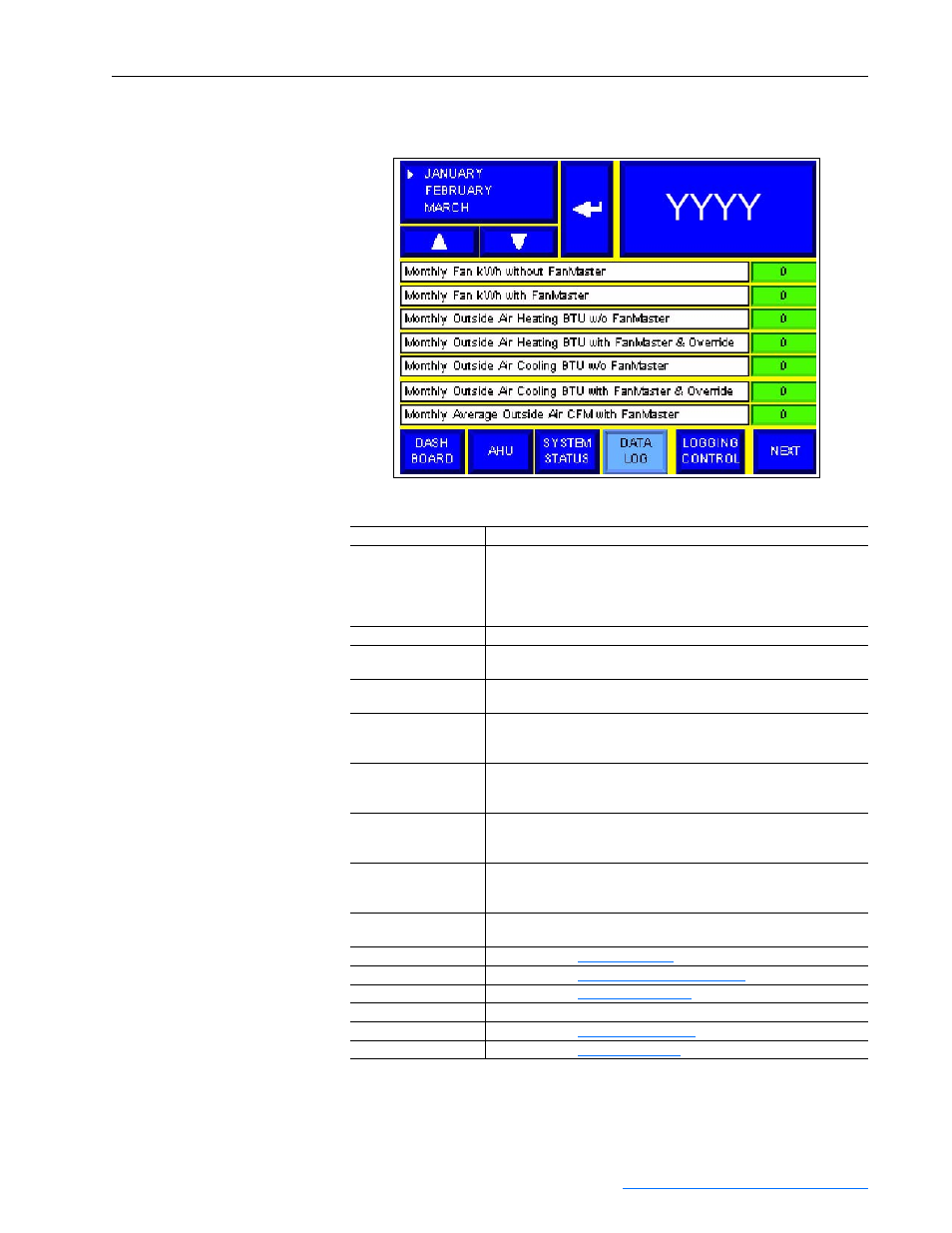

Data Log #1 Screen The first Data Log screen is used to display detailed monthly energy and
savings data calculated by FanMaster for up to five years running.
Table C.N Data Log #1 Screen Fields
Field Name Description
January, February, March
… Month selection. Choose the month for which you want to view data using
the up or down and Enter arrow buttons.
Note: When the current month is selected, data displayed represents the
month to date values. When a previous month is selected, data displayed
represents values for the entire month.
(YYYY) Year selection. Choose the year for which you want to view data.
Monthly Fan kWh without
FanMaster Monthly kilowatt hours used to run the AHU fan(s) without FanMaster.
Monthly Fan kWh with
FanMaster Monthly kilowatt hours used to run the AHU fan(s) using FanMaster.
Monthly Outside Air
Heating BTU w/o
FanMaster Monthly BTU’s used to heat the outside air without FanMaster.
Monthly Outside Air
Heating BTU with
FanMaster & Override Monthly BTU’s used to heat the outside air using FanMaster and the
outside air damper override.
Monthly Outside Air
Cooling BTU w/o
FanMaster Monthly BTU’s used to cool the outside air without FanMaster.
Monthly Outside Air
Cooling BTU with
FanMaster & Override Monthly BTU’s used to cool the outside air using FanMaster and the
outside air damper override.
Monthly Average Outside
Air CFM with FanMaster Average volume of outside air (in cubic feet per minute) provided by the
AHU as calculated by FanMaster.
Dashboard Press to view the Dashboard Screen .
AHU Press to view the Air Handler Unit Diagram Screen .
System Status Press to view the System Status Screen .
Data Log Screen you are currently viewing.
Logging Control Press to view the Data Collection Screen .
Next Press to view the Data Log #2 Screen .
