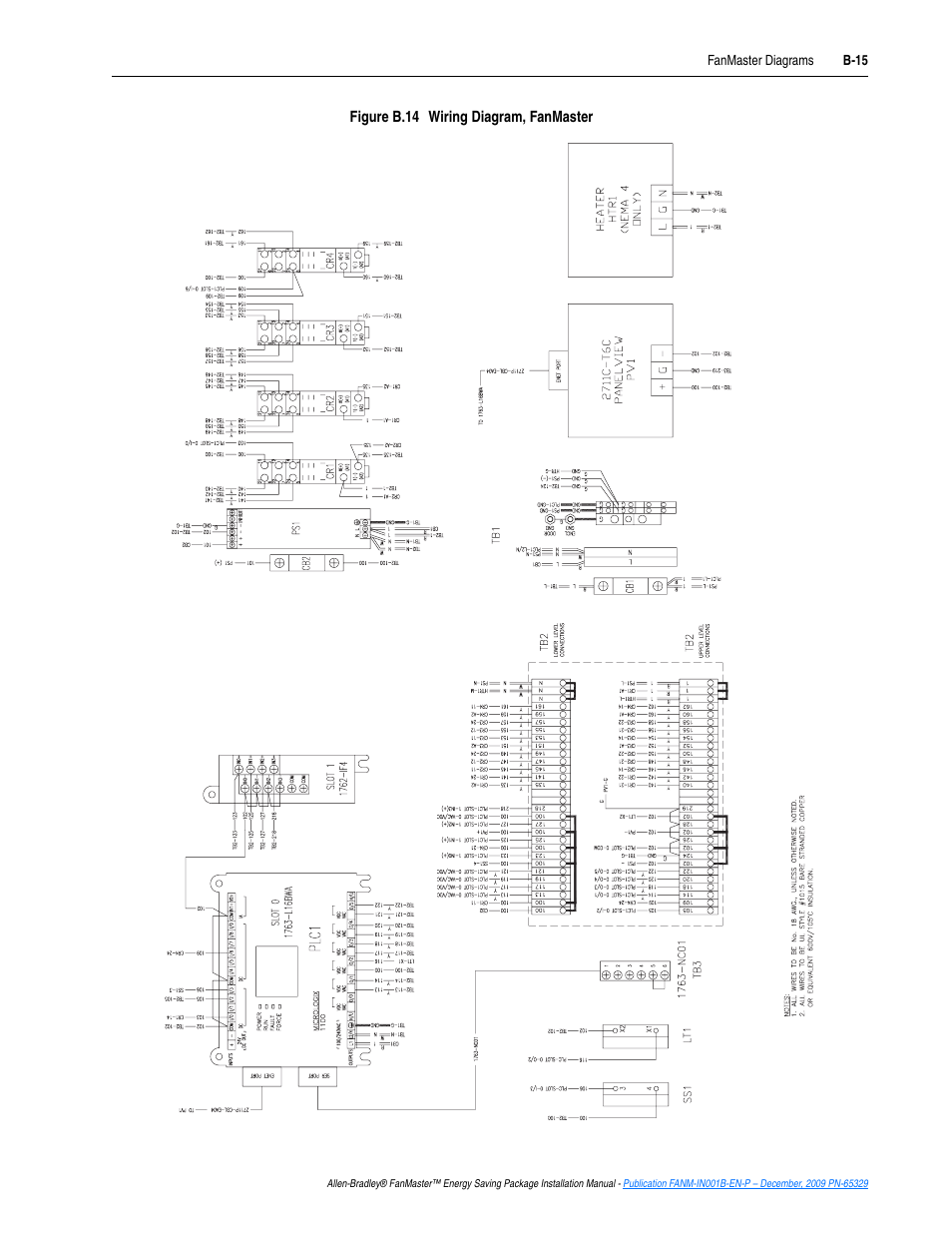

Figure b.14, Wiring diagram, fanmaster, B-15 – Rockwell Automation FANM FanMaster Energy Saving Package User Manual
Page 89
