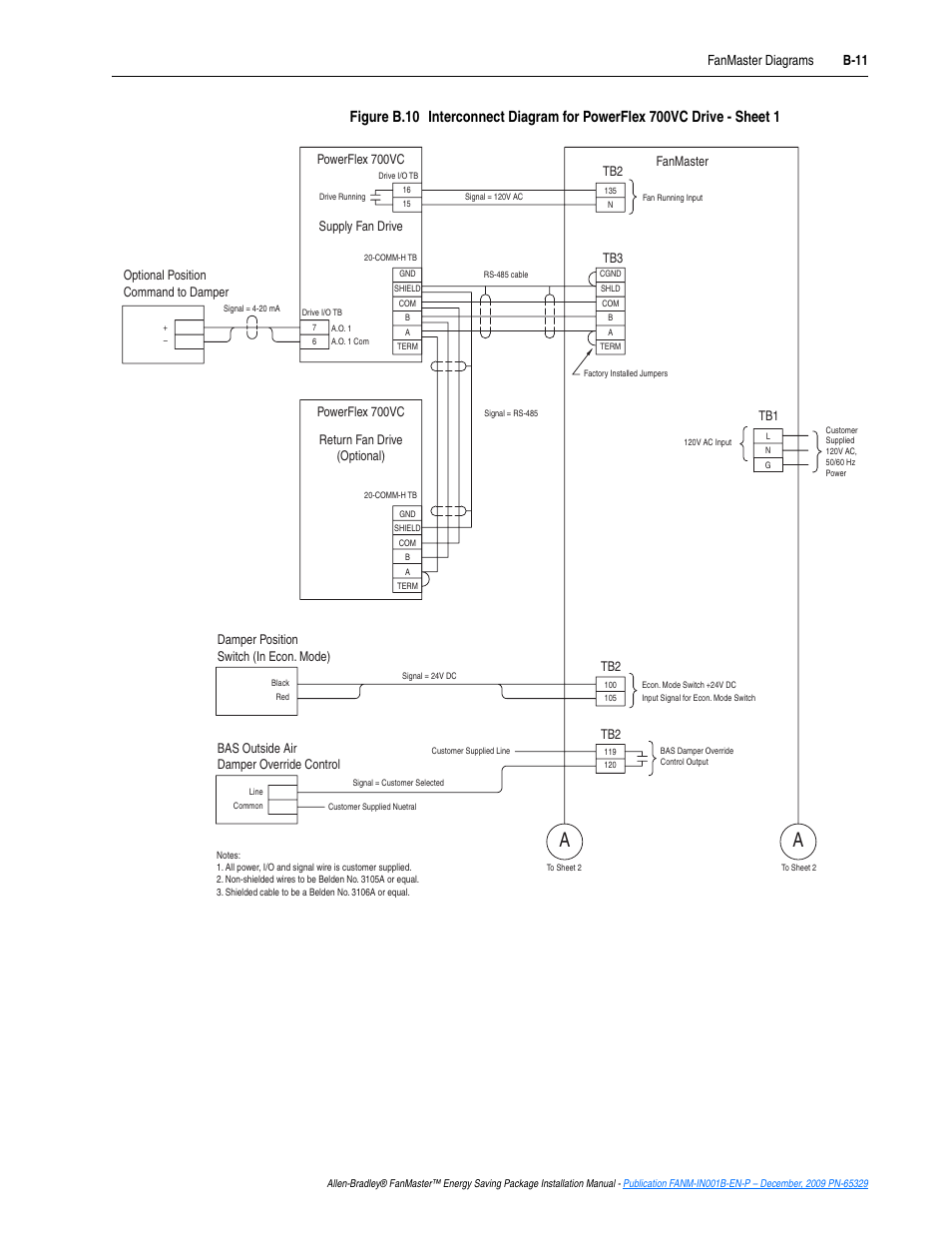

Figure b.10, B-11, Fanmaster diagrams b-11 – Rockwell Automation FANM FanMaster Energy Saving Package User Manual
Page 85
