Rockwell Automation GV3000/SE, VTAC 7 Super Remote Meter Interface Board M/N 2SI3000 M/N 2SI3000E User Manual
Page 34

3-20
Super Remote Meter Interface (RMI) Board
Step 5.7 Replace the terminal cover (below the keypad). Fasten it using the M4
screws removed earlier.
Step 5.8 VTAC 7 drives: Reinstall the Power Module in the drive cabinet.
Step 5.9 VTAC 7 drives: Close the outer cabinet door.
Step 5.10 Remove the lockout and tag. Apply power to the drive. SELF will be
displayed while the drive performs power-up diagnostics.
This completes the hardware installation of the RMI board. Refer to chapter 4 for the
required software parameter settings for your drive.

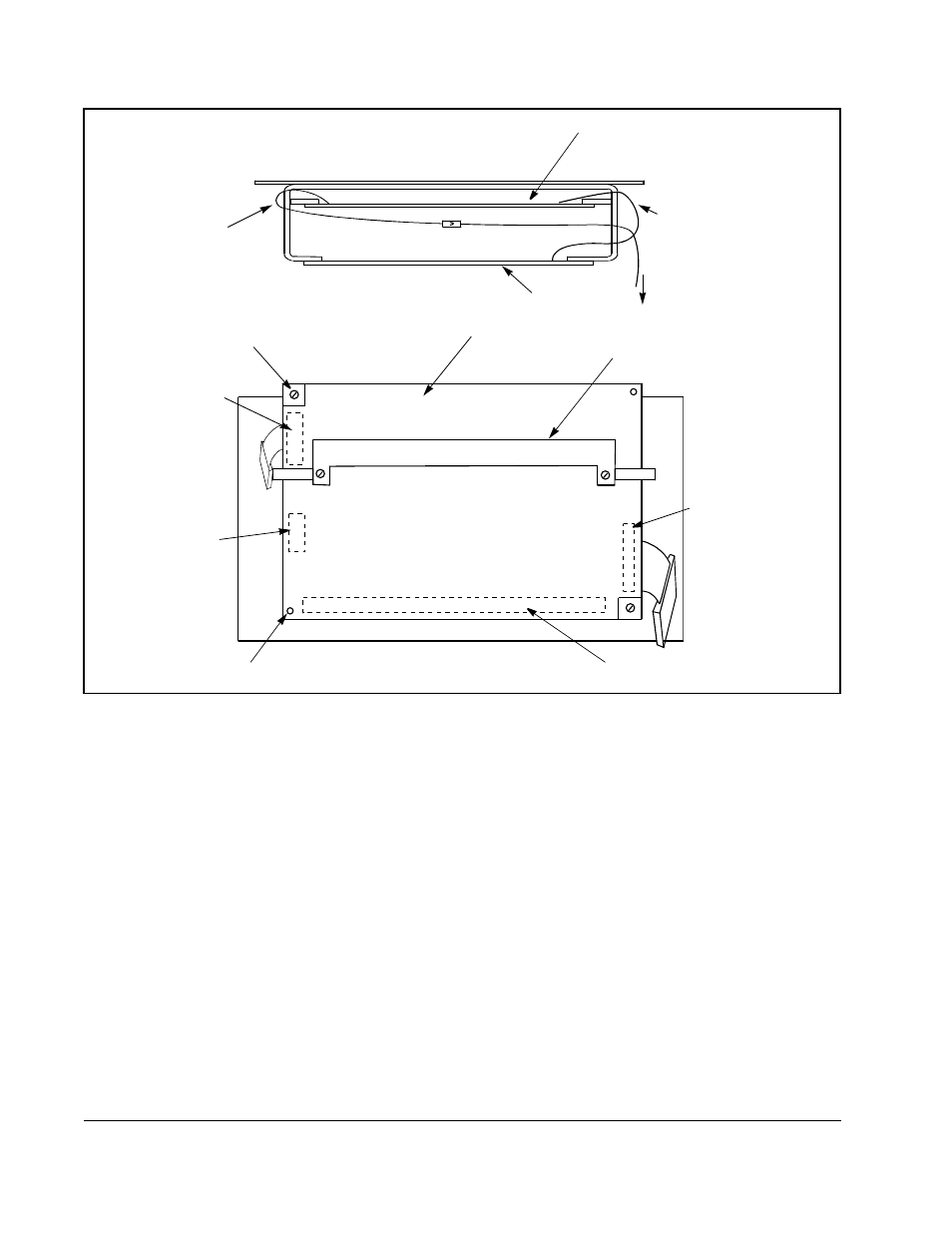

Figure 3.9 – Regulator Board’s Connection to RMI Board, Keypad, and Base Board
Regulator Board
Top View
Ribbon Cable
Connecting
Regulator Board and
Base Board
To Base Board
Front
Metal Screw
Ribbon Cable
Connector to
Connect Base
Board
Ribbon Cable
Connector to
Connect Keypad
Plastic Rivet
Terminal Strip
Back Side of
Insulator
Rear View of Regulator Board
Regulator Board
RMI Board
Ribbon Cable
Connector to
Connect
RMI Board
Ribbon Cable
Connecting
Regulator Board
and RMI Board
