2-2
Super Remote Meter Interface (RMI) Board
2.2
Terminal Strip Signals
The following signals are available at the terminal strip. Refer to figure 3.21 for
terminal identification.
2.2.1 Digital Inputs
Four 24 volt DC digital inputs provide additional speed reference options. The inputs
are active high. A 24 VDC supply is provided by the RMI board for use with the digital
inputs. The supply is short circuit- and overvoltage-protected. See figure 2.2.
Important: This supply should not be used as an external supply for anything other
than the four digital inputs.
2.2.2 Digital Outputs
Four 24 volt digital outputs are turned on and off as a result of data comparisons in the
drive. Refer to table 3.9 and chapter 4 for the related parameters and programming
information.
All digital outputs are source-driven (active high with common ground) and short
circuit-protected. Each output has an adjustable time delay that can be programmed
as an on-delay or an off-delay. An option to select an external 24 volt supply for
increased current capability at the outputs is jumper-selectable as shown in table 2.1.
Refer to figure 2.1 for the jumper location.

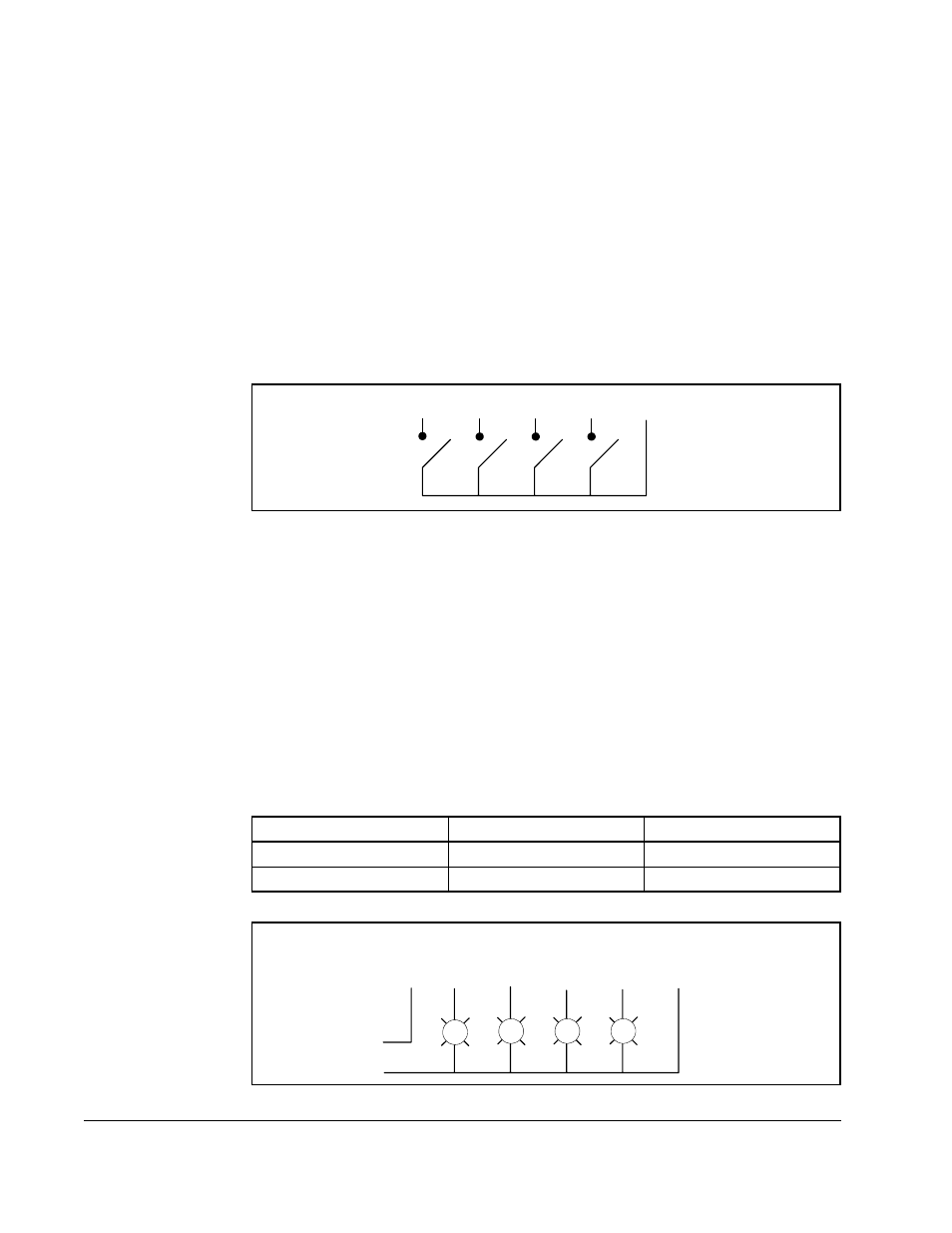

Figure 2.2 – Digital Input Circuit
,Q
,Q
,Q
9'&
,Q
Table 2.1 – Jumper Selections for Digital Output Supply Source
Jumper Selection
24VDC Supply Source
Output Result
24 V INT
Internal
20mA per output
24 V EXT
External
100mA per output
Figure 2.3 – Digital Output Circuit
2SWLRQDO
([WHUQDO
9
2XW
2XW
2XW
2XW
9
&RPP
