Sleep pwr connector, Hard drive led connector, Power led – Rockwell Automation 6180 Processor Board (for 6180 Industrial Computers) User Manual
Page 32

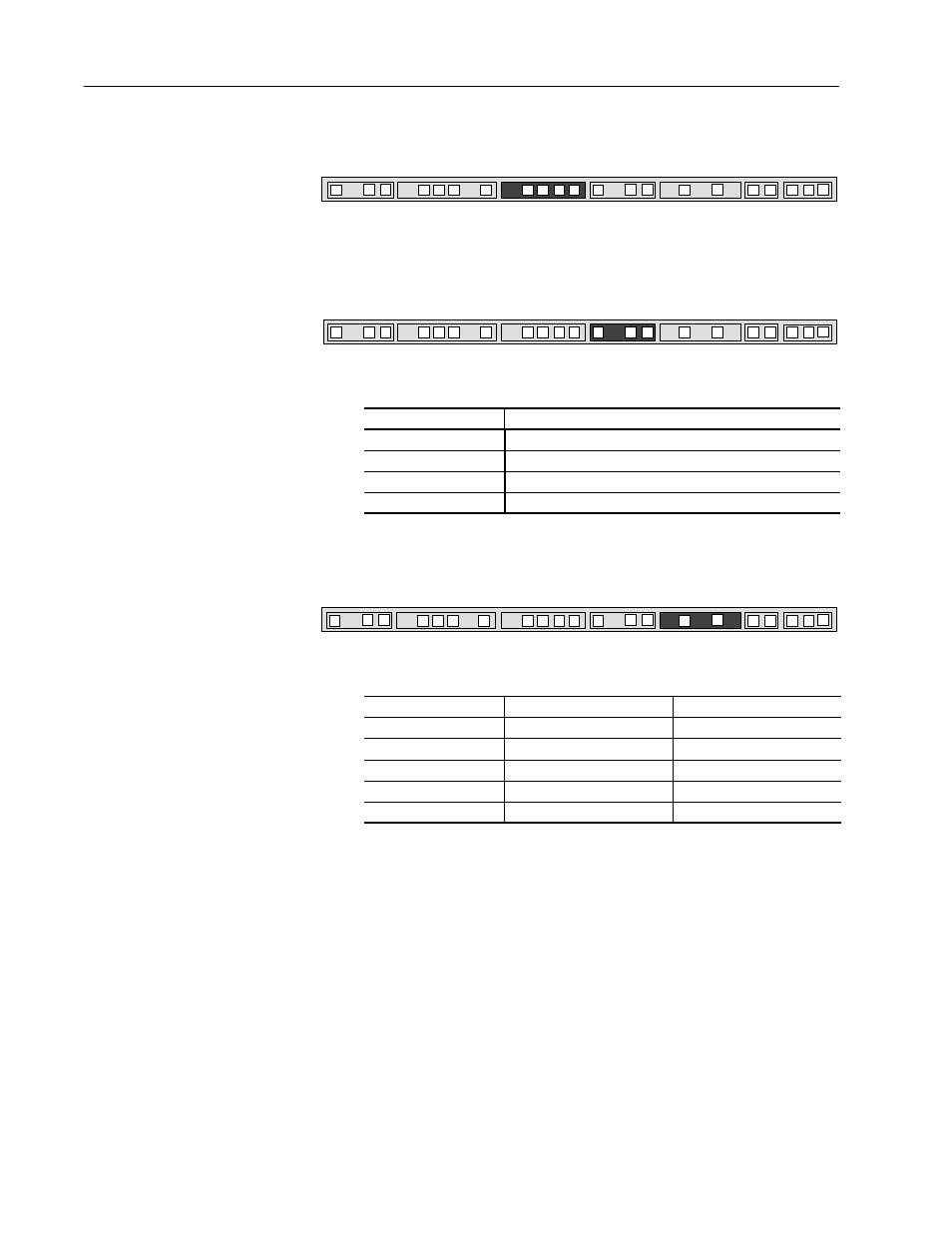

Processor Board Connectors
B–4
SLEEP PWR Connector
SPKR
IR
SLEEP PWR
HD LED
PWR LED
FAN
RST
1 2 3 4 5
Hard Drive LED Connector
SPKR
IR
SLEEP PWR
HD LED
PWR LED
FAN
RST
1 2 3 4
Pin #
Signal Name
1
+5 V
2
No connect
3
HD ACTIVE#
4
+5 V
Power LED
SPKR
IR
SLEEP PWR
HD LED
PWR LED
FAN
RST
1 2 3 4 5
Pin #
Signal Name
Wire Color
1
No connect
2
LED-PWR
Green
3
No connect
4
Ground
5
No connect
Blue
