2–3 Processor Board

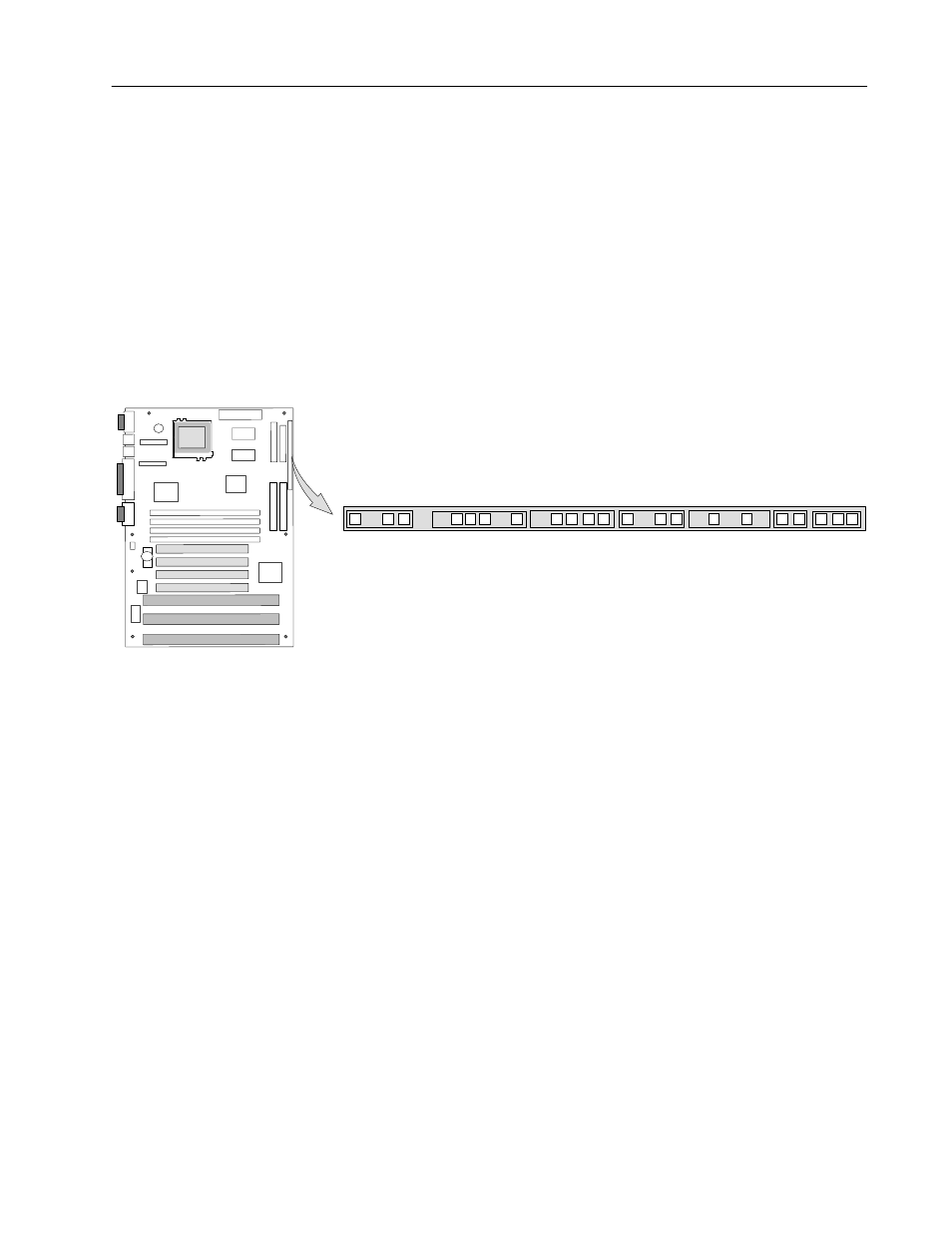

The front panel connectors on the processor board support:
•
System Reset
•
Power LED
•
Hard Drive Activity LED
•
System Speaker
•
CPU Fan
•
Infrared (IrDA) port
•
Sleep/Resume
Some of these front panel connections may or may not be used
depending on the 6180 Computer hardware configuration.
ООООО ООООО
ООООО ООООО
ПП
ПП
ПП
ПП
ПП
ПП
ПП
ПП
ПП
ПП
ПП
П
П
ПП
П
П
ПП
ПП
ПП
ПП
SPKR IR SLEEP PWR HD LED PWR LED FAN RST
Infra-red (IrDA) Connector
Serial port 2 may be configured to support an IrDA module through
the 6-pin front panel connector. Once configured for IrDA, files can
be transferred to/from portable devices using application software
such as LapLink
t. Appendix B shows the IrDA connections.
Reset
Connections for a Reset button (2-pin SPST, normally open) provide
for a hard reset. Appendix B shows the Reset connections.
CPU Fan
Connections for a CPU Fan. Appendix B shows the fan connections.
Front Panel Connectors
