Page 44: Appendix

44
6185 Economy Line Monitors
Publication 6185-UM003C-EN-P
Appendix
Appendix
Appendix
Appendix D
D
D
D: Video Cables
: Video Cables
: Video Cables
: Video Cables
You can use a HD-15 connector cable to connect your monitor to the
host computer.
The HD-15 video cable you use with this monitor is equipped with a
conventional HD-15 connector at each end.
Note:

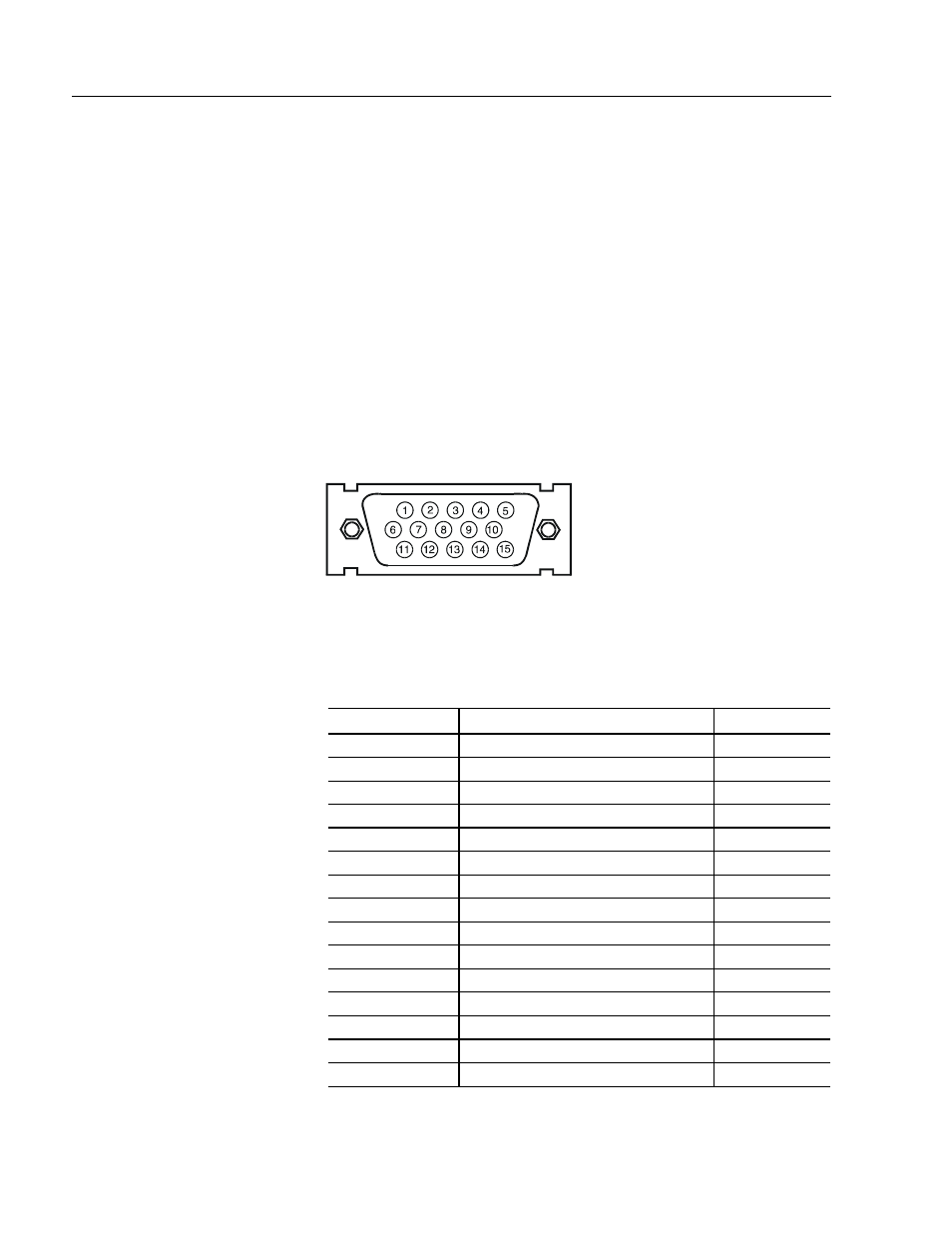

The following figure is the view looking into the pin end of
the male connector or solder term end of the female
connector.
Figure 27
HD-15 Video Connector
The following table provides the pin numbers and corresponding pin
assignments for the HD-15 video connector with the DDC2B capability:
Table H
Standard HD-15 Video Cable
Monitor (Female)
Signal Description
Host (Male)
1
Red Video
1
2
Green Video
2
3
Blue Video
3
4
Not Used
4
5
Return
5
6
Red Video Ground
6
7
Green Video Ground
7
8
Blue Video Ground
8
9
Not Used
9
10
Sync Ground
10
11
Not Used
11
12
Bi-Directional Data
12
13
Horizontal Sync
13
14
Vertical Sync (VCLK)
14
15
Data Clock (SCL)
15
HD-15 Video Connector
