Appendix A: Installing Rack Brackets on the 6185-H
35
Publication 6185-UM003C-EN-P
Appendix
Appendix
Appendix
Appendix A
A
A
A: Installing Rack
: Installing Rack
: Installing Rack
: Installing Rack
Brackets on the 6185-H
Brackets on the 6185-H
Brackets on the 6185-H
Brackets on the 6185-H
You can install the 6185-H (15” panel mount) monitor into a rack using
optional rack adapters. The rack adapters are designed for installation in
a rack cabinet that conforms to EIA standards for equipment with 19"
(483 mm) wide panels. The rack adapter option is Accessory option R.
Installing Rack Adapter Brackets on a 6185-H Monitor
1. Carefully remove the monitor from its packaging.
2. Locate four mounting studs on each side of the monitor’s back
enclosure.
3. Install handles onto rack adapter brackets, if required.
4. Install the rack adapter brackets onto the four mounting studs on the
monitor’s back enclosure.

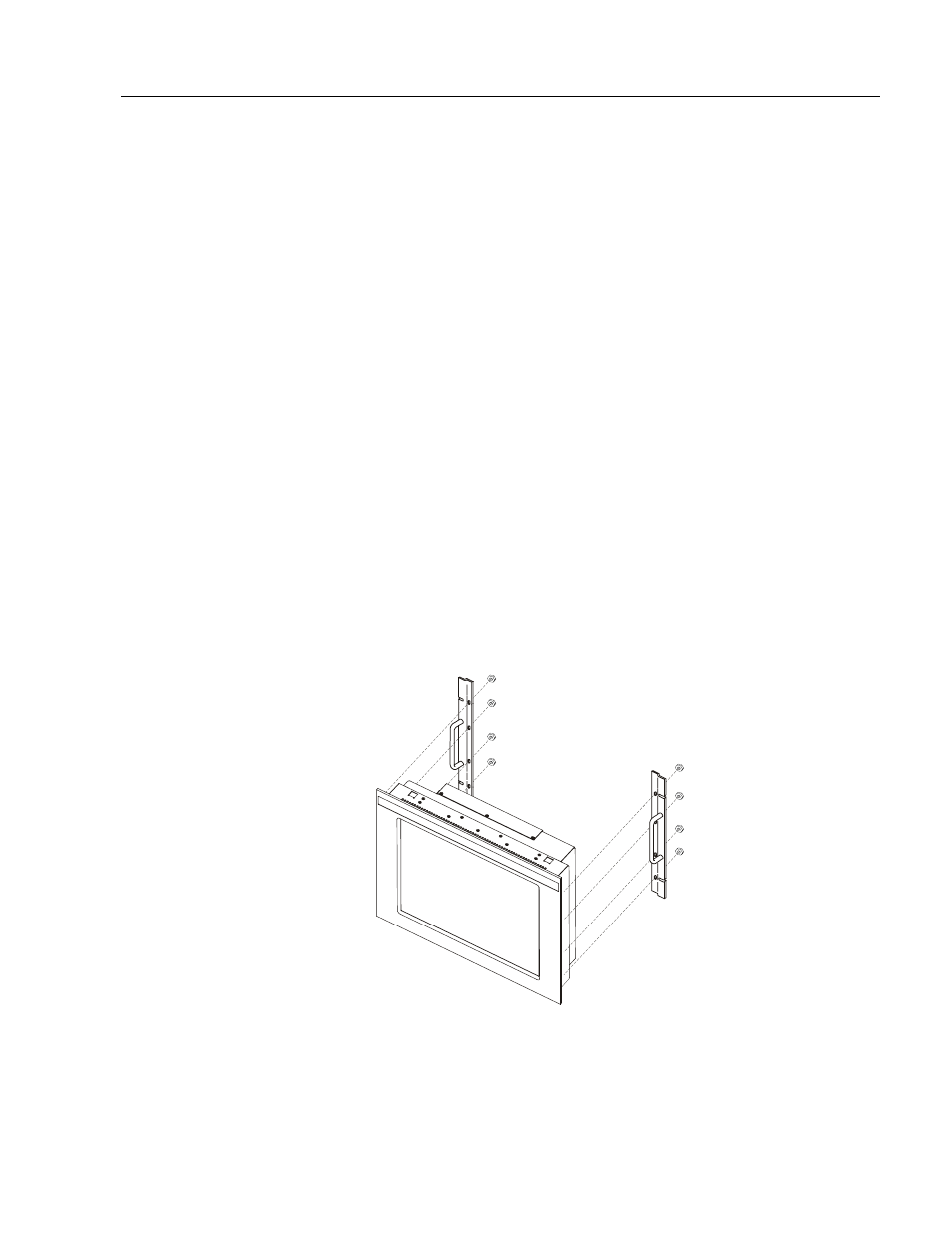

Figure 18
Generic Rack Adapter Brackets Diagram
Note:
Your monitor may differ from the above graphic.
5. Secure the rack adapter brackets with the provided nuts for all eight
mounting studs (4 studs for each rack adapter bracket).
