Configuring Video Setup
25
Publication 6185-UM003C-EN-P
You may want to fine tune or verify setup for your monitor. Use the
control buttons and On-screen Display (OSD) to modify your monitor’s
settings, while viewing the ScreenSet setup screen.
From the OSD main menu you can select any function.
Note:
The 6185-H, 6185-J and 6185-K OSD main menus differ
slightly.

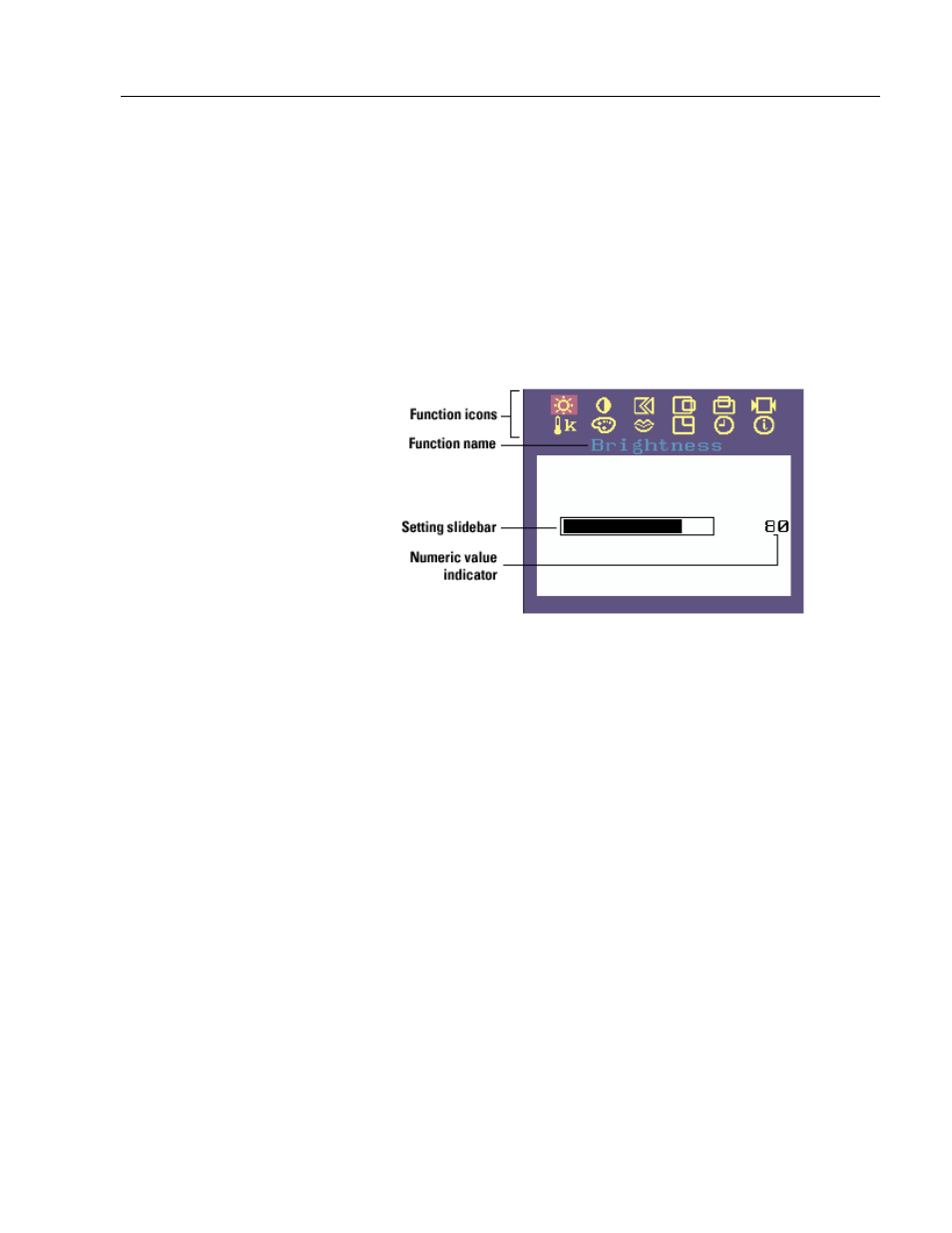

Figure 13
OSD Main Menu
OSD Menu Navigation
Refer to the following for OSD menu navigation guidelines:
• Press the MENU button. This opens the OSD main menu.
• Press the “-” and “+” buttons to move between the function icons.
• As you move from one function to the other, the function menu
changes to represent the correct icon.
• To activate the highlighted function, press the MENU button.
• Use the “-” and “+” buttons to make your changes.
• Press the EXIT button once to return to the main menu where you can
select another function.
• To exit the main menu, press the EXIT button again.
• If an icon has more than one sub-function, use the “-” and “+” buttons
to select the sub-function.
• To activate a highlighted sub-function, press the MENU button.
Note:
For OSD icons and descriptions, see OSD Menu Reference
on page 28.
Adjusting Your Monitor
Using the On-screen
Display
