7–6 Adding and Removing Removable Media
Publication 6180-6.0

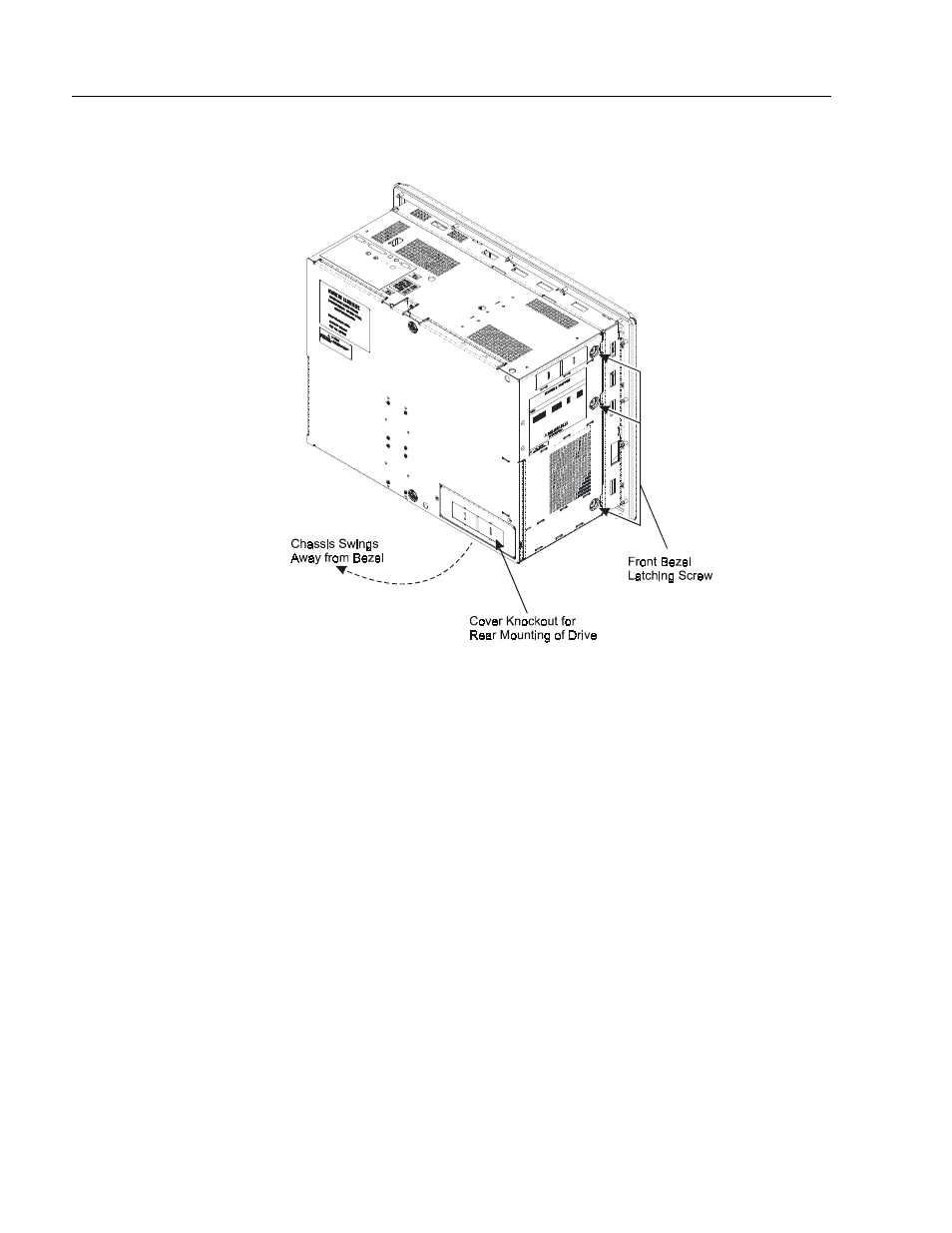

Figure 7- 5
3. Position the accessory drive / bracket assembly into the chassis.
Note:
For rear facing drives, you may have to remove the
panel knockout (shown above) if a rear mounted drive
was not previously installed. Insert screwdriver into
slot on knockouts and pry back and forth on knockout
to remove. Use pliers to remove the center rib between
the two knockouts.
For front facing drives, if a floppy drive was not
previously installed, you may have to replace the
floppy drive cover behind the front access door with a
cover having an opening.
Note:
You may have to remove the side panel knockout
(shown below) if a side mounted drive was not
previously installed. Insert screwdriver into slot on
knockouts and pry back and forth on knockout to
remove. Use pliers to remove the center rib between
the two knockouts.
