Adding and Removing Memory 5–5
Publication 6180-6.0
4. Holding the DIMM only by the edges, remove it from its anti–static
package.

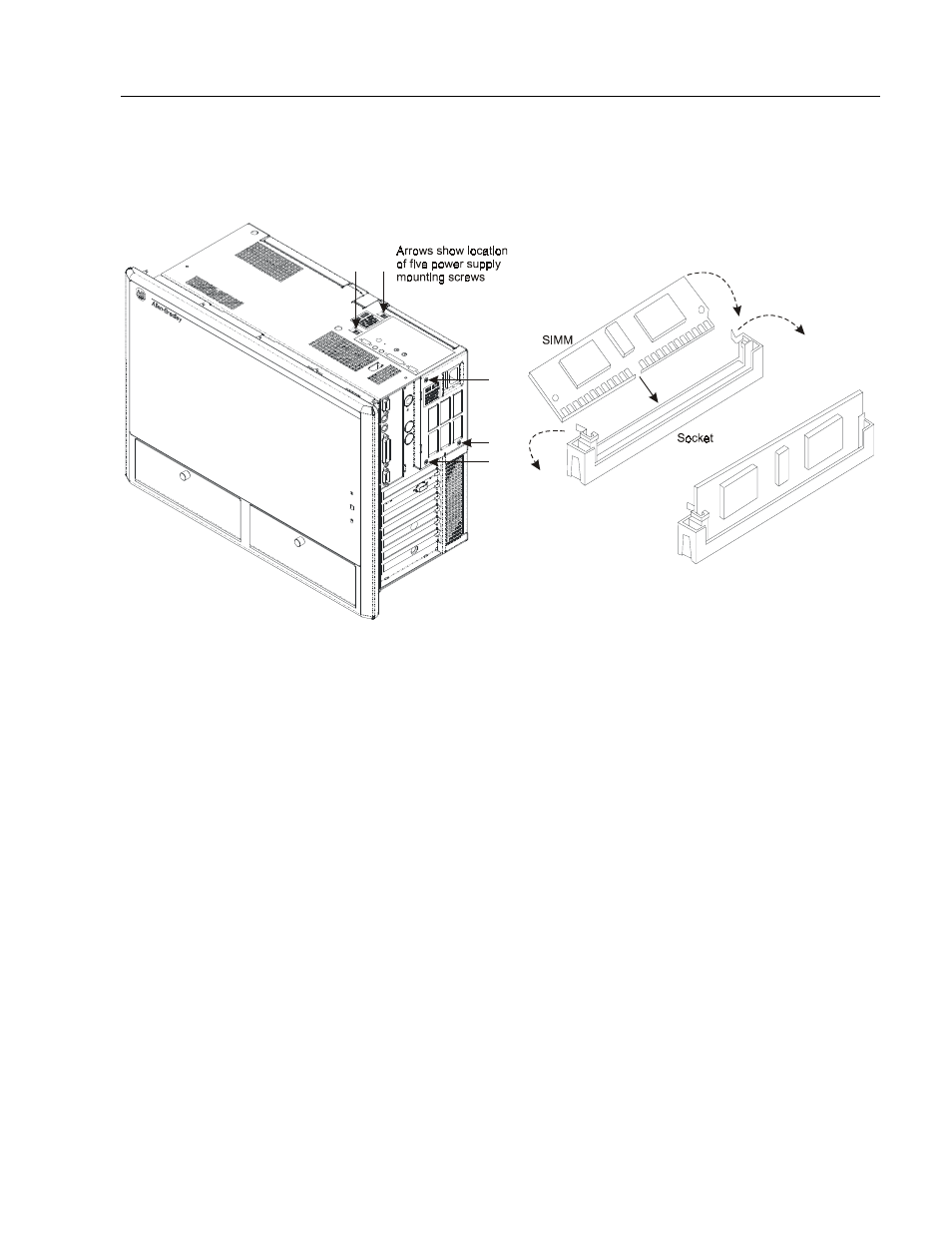

Figure 5- 2
5. Make sure the clips at either end of the socket are pushed away from
the socket.
6. Position the DIMM above the socket. Align the two small notches in
the bottom edge of the DIMM with the keys in the socket.
7. Insert the bottom edge of the DIMM into the socket (see the figure
above).
8. When the DIMM is seated, push down on the top edge of the DIMM
until the retaining clips snap into place. Make sure the clips are
firmly in place.
9. If you installed a DIMM with ECC memory, turn on the computer
and use the ECC Configuration feature in Setup to enable ECC (see
the associated motherboard guide).
10. After the DIMMs are installed, return the power supply to its
mounting position in the chassis. Dress the cables to their original
position and ensure that the air diverting flap (s) are installed near
the processor heat sink, as originally positioned.
