Mounting hardware tools required – Rockwell Automation 6180 Industrial Computers User Manual
Page 38
2–2 Installation
Publication 6180-6.0

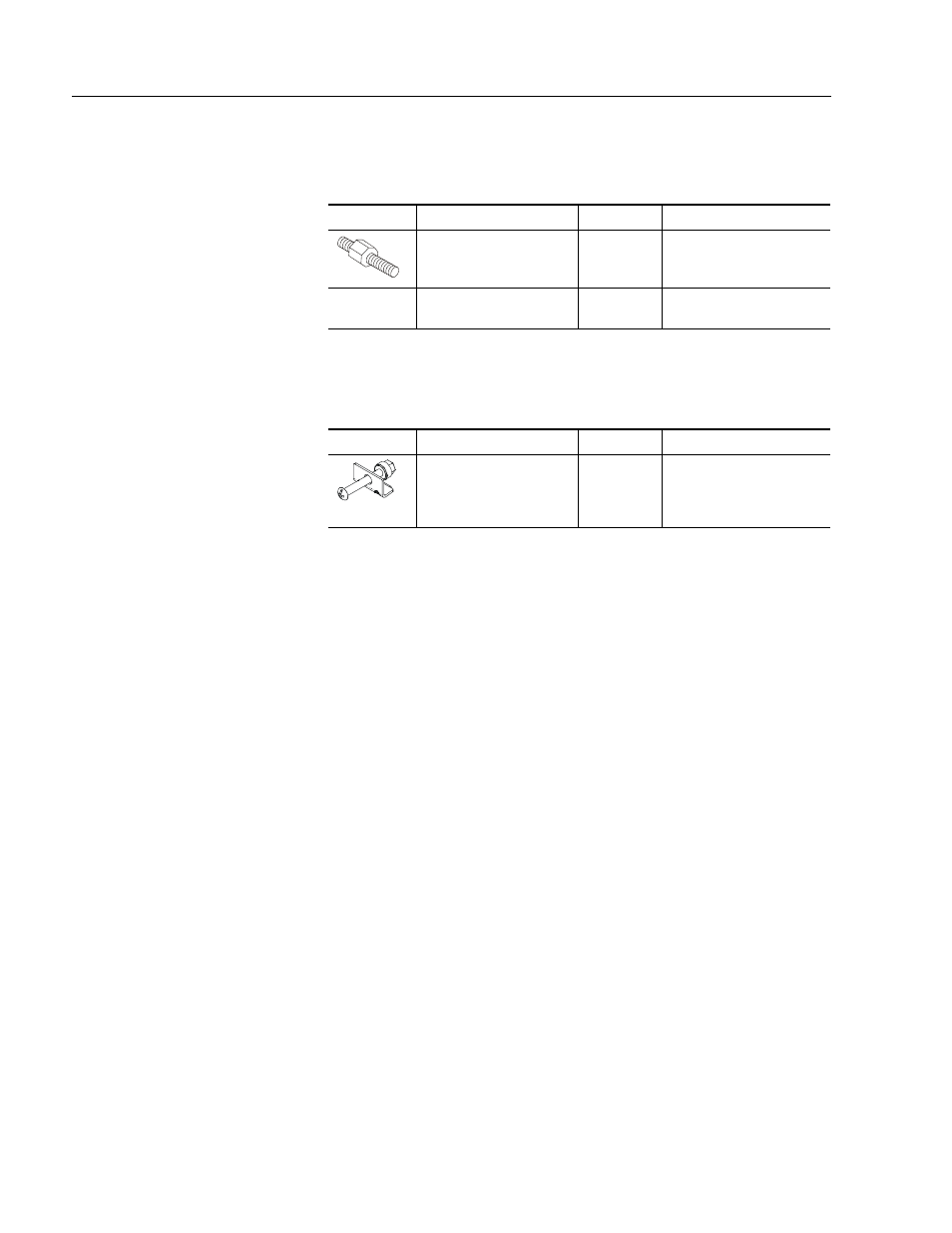

The 6180 Computer is shipped with the following mounting hardware
installed on the bezel.
Item Description
Quantity Use
For
1.265
−
inch long
mounting studs with
integral spacer
18
Panel or enclosure
mounting
<needed>>
Self-locking nuts
18
Panel, enclosure, or
rack mounting
Mounting clips can be used instead of the mounting studs and are
ordered separately.
Item Description
Quantity Use
For
Mounting Clips
Catalog No. 2711-
NP1
Each
Package
Contains
10 Clips
Panel or enclosure
mounting
In addition to the tools required to make the cutout, you will need the
following tools:
•
3/8 inch socket
•
14 inch (36 cm) extension rod (minimum)
•
Socket driver (in/lb torque wrench recommended)
•
7/32 hex wrench
•
Ruler
Mounting Hardware
Tools Required
