Page 132
13–10
Keypad Configuration Utility Software
Publication 6180-6.0

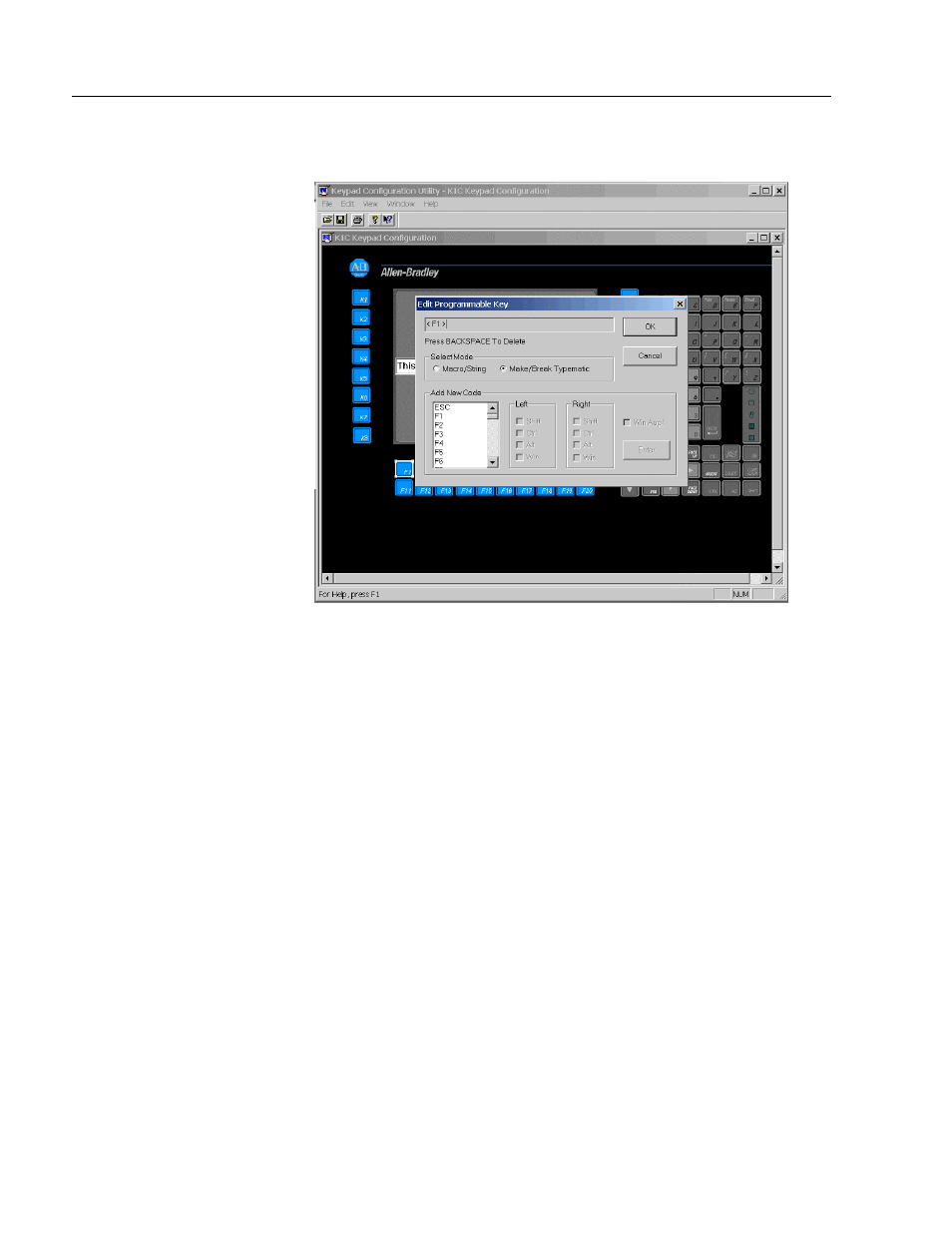

Figure 13- 4
Entering a Keypad Description
The text edit box at the bottom of the keypad configuration window
allows you to enter a description to identify the keypad. The text edit
box accepts up to 128 characters.
To edit a description, click in the text edit box and start typing or editing
the text.
With the cursor in the text edit box, click the right mouse button to open
the popup menu. Use the commands on this menu to copy/cut, paste and
delete selected text. To select all the text in the description box, choose
Select All from the popup menu.
The new keypad description takes effect when you select Store Keypad
Configuration to KIC on the File menu.
Getting Help
You can get general Help information on the Keypad Configuration
Utility by:
