Keypad Configuration Utility Software 13–23
Publication 6180-6.0

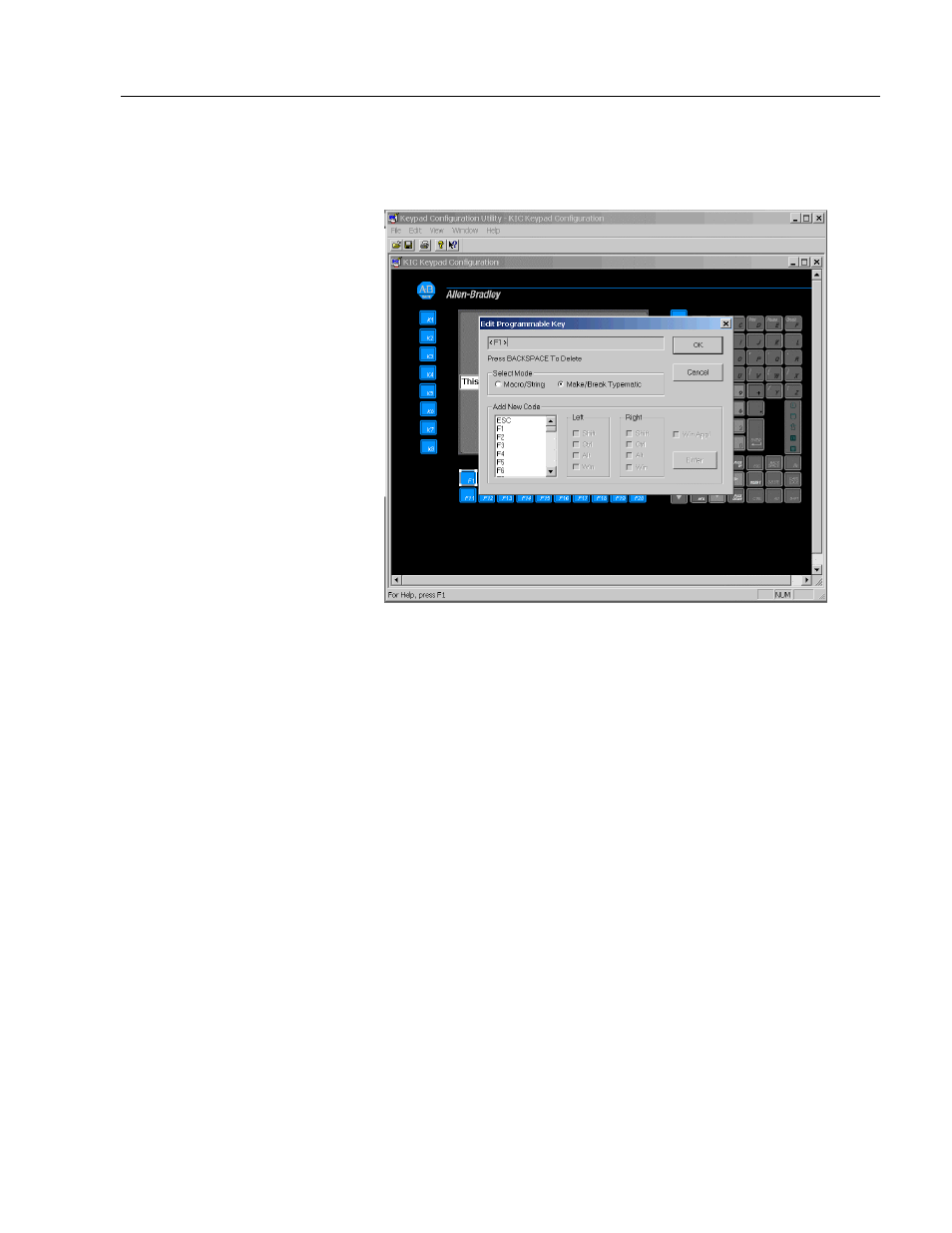

Figure 13- 17
3. Edit the key definition.
To select a key definition from the Add New Code list:
•
Select (or click on) a code in the Add New Code list.
•
Under Left or Right, select the Shift, Ctrl, Alt, or Win check boxes to
enable one or modifiers for the code.
To enter the shifted character for a code (e.g., A) select the left or right
Shift check box after selecting the code a.
To assign the Windows Application modifier to a code, select the
WinAppl check box.
•
Click Enter to display the new code in the text box.
If entering multiple codes, click Enter after each code selection or
double-click each code selection. The text box is automatically updated.
To enter a command or key definition in the Text box:
•
Type the characters in the Text box as you want them to appear using
shifted or unshifted characters.
Use the Backspace key to delete characters and re-enter text.
