Programming the RediPANEL Modules

4–6

SLC Bit Addresses (Decimal)

Two Module Groups (or words) of bit addresses
are needed for the 32 push buttons:

Bit addresses 00 through 07 and 10 through

17 of the starting I/O group are assigned to
the lamps and push buttons 1 through 16.

Bit addresses 00 through 07 and 10 through

17 of the next I/O group number are assigned
to the lamps and push buttons 17 through 32.

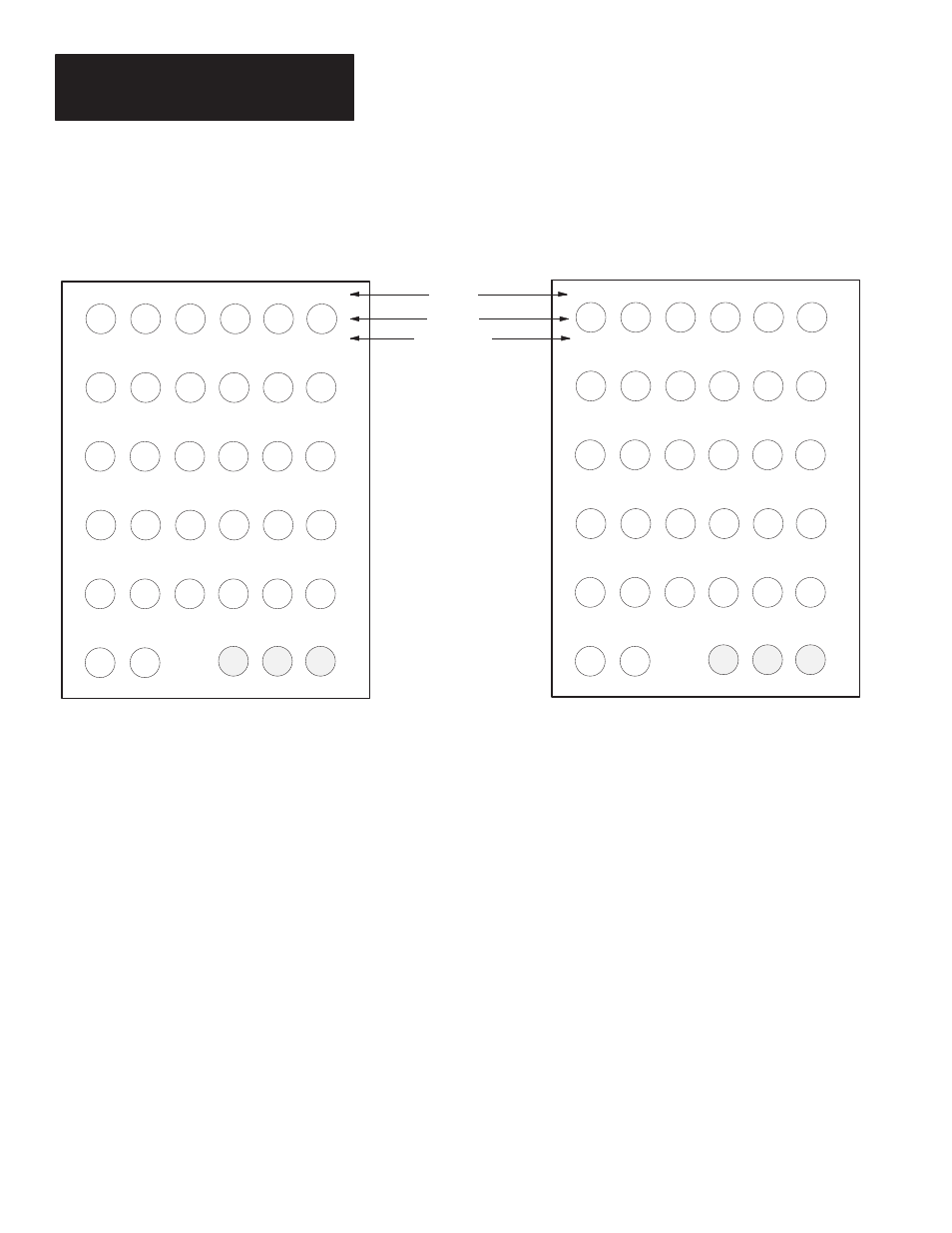

Front Panel Views

See next section for

PLC/SLC addressing examples.

When using a PLC with 800EM/EP Push Button Mod-
ules, the cables that connect to the push buttons are
marked PB1 – PB32 and diagnostics. This corresponds
to PLC input and output bit locations 00 – 17.

When using an SLC with 800EM/EP Push Button Mod-
ules, the cables that connect to the push buttons are
marked PB1 – PB32 and diagnostics. This corresponds
to SLC input and output bit locations 00 – 15.

Two Module Groups (or words) of bit addresses
are needed for the 32 push buttons:

D Bit addresses 00 through 15 of the starting I/O

group are assigned to the lamps and push
buttons 1 through 16.

D Bit addresses 00 through 15 of the next I/O

group number are assigned to the lamps and
push buttons 17 through 32.

*PB1

PB2

PB3

PB4

PLC Bit Addresses (Octal)

Cable #

Button #

Address Bit #

Bit Addresses for 32 Button

800EM/EP Modules

PB6

PB5

PB8

PB7

PB10

PB9

PB12

PB11

PB14

PB13

PB16

PB15

PB18

PB17

PB20

PB19

PB22

PB21

PB24

PB23

PB26

PB25

PB28

PB27

PB30

PB29

PB32

PB31
