Chapter 3
Wiring and Installation
3–12
800EM/EP Fiberglass Enclosure Mounting
To mount a 16 or 32 Push Button 800EM/EP Fiberglass Enclosure
Module:
1. Mark the locations of the four mounting holes. See Figure 3.6

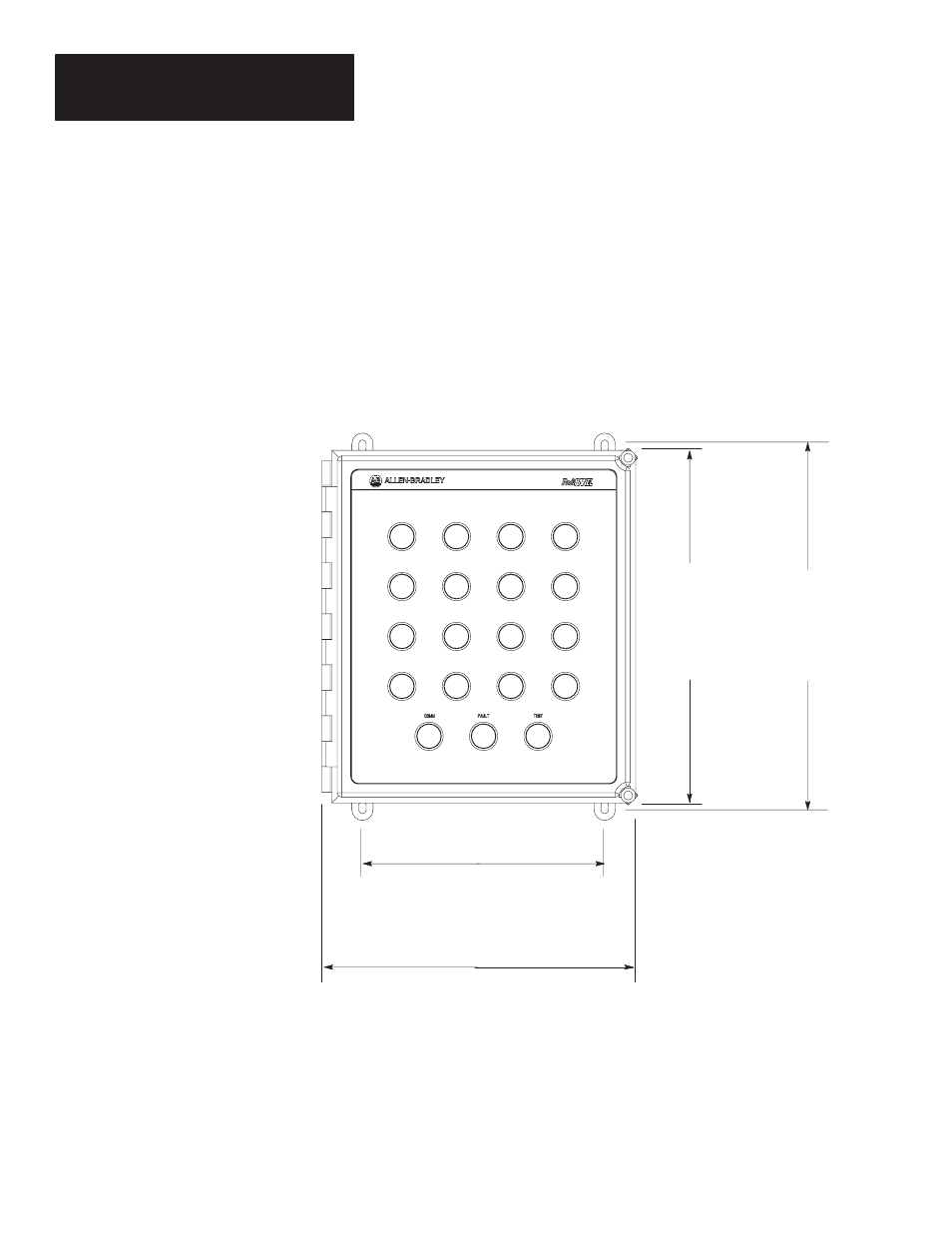

Figure 3.6
Fiberglass Enclosure Mounting Dimensions in Inches (mm)
800EM/EP Push Button Modules
14.55
(369.6)
16 button module
Fiberglass Enclosure
16.55
(420.4)
32 button module
14.94
(379.5)
16 button module
16.94
(430.3)
32 button module
10.00
(254.0)
16 button module
12.00
(304.8)
32 button module
12.96
(329.2)
16 button module
14.96
(380.0)
32 button module
2. Drill four mounting holes suitable for your mounting hardware. The
mounting flange on the enclosure will acommodate a fastener up to
.50 in (12.7 mm) long x .31 in (7.9 mm) wide.
3. Secure the enclosure with the fastening hardware.
