Dimensões de corte do painel, Orientações sobre a montagem em painel – Rockwell Automation 6181X-15xxxxxxx VersaView 6181X-IN001B-MU-P User Manual
Page 92
92 Computadores com Tela Integrada VersaView 6181H
Publicação 6181H-IN001B-MU-P
Dimensões de Corte do Painel
Orientações sobre a Montagem em Painel
Observe as precauções a seguir ao instalar o computador em um painel:
• Confirme se há espaço adequado atrás do painel. Um painel com uma
profundidade mínima de 127 mm (5,0 pol.) é suficiente.
• Os painéis de suporte devem ter pelo menos bitola 14 para assegurar uma
vedação adequada contra água e pó e para fornecer um suporte adequado. O
equipamento de montagem fornecido pode ser usado com painéis de até 6 mm
(0,24 pol.) de espessura.
IMPORTANTE
Os painéis de suporte devem ser cortados conforme as
especificações antes da instalação.

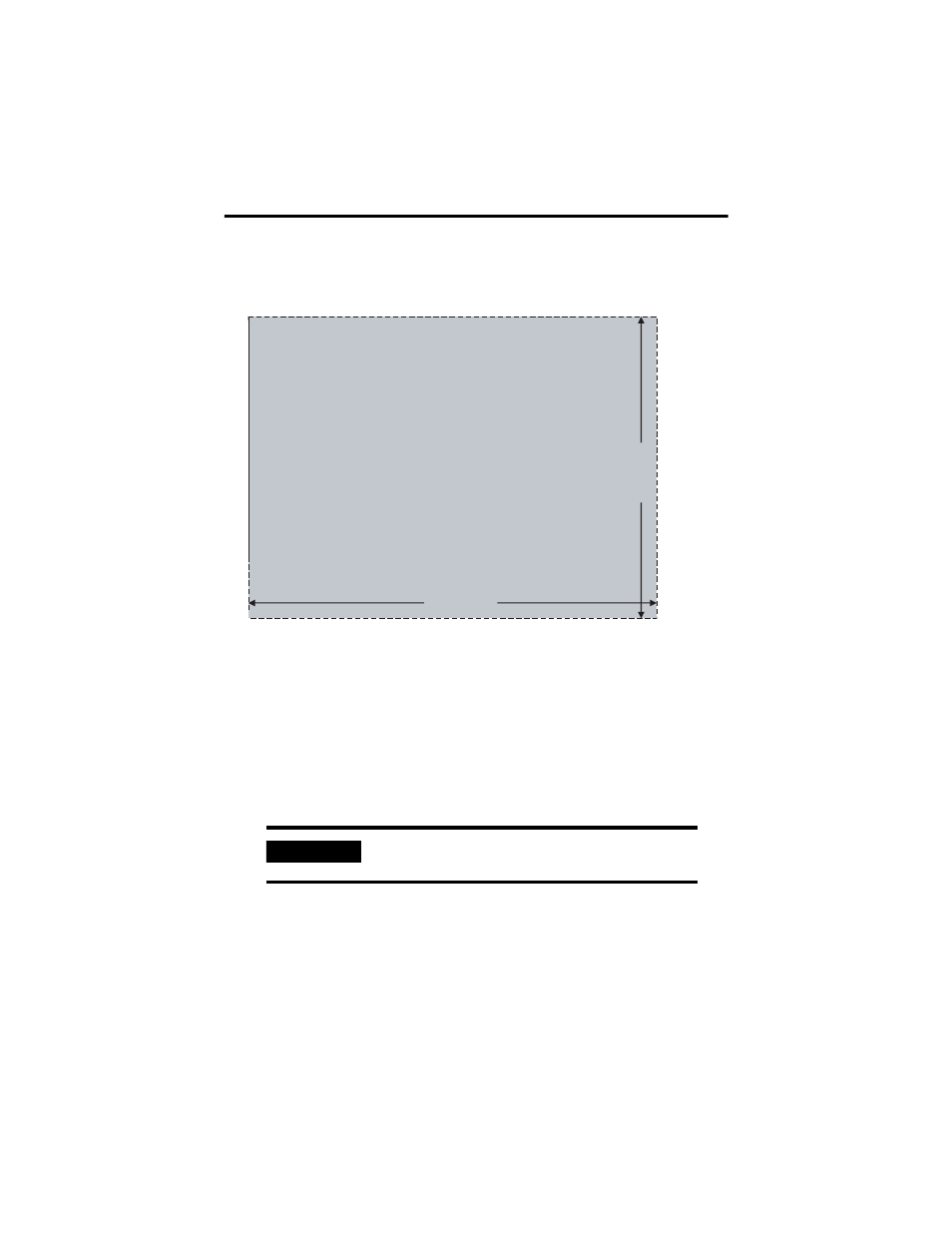

Computador com Tela Integrada VersaView 1500P
386,60 [15,22]
285,0
[11,24]
