76 Computer con schermo integrato VersaView 6181H
Publicazione 6181H-IN001B-MU-P

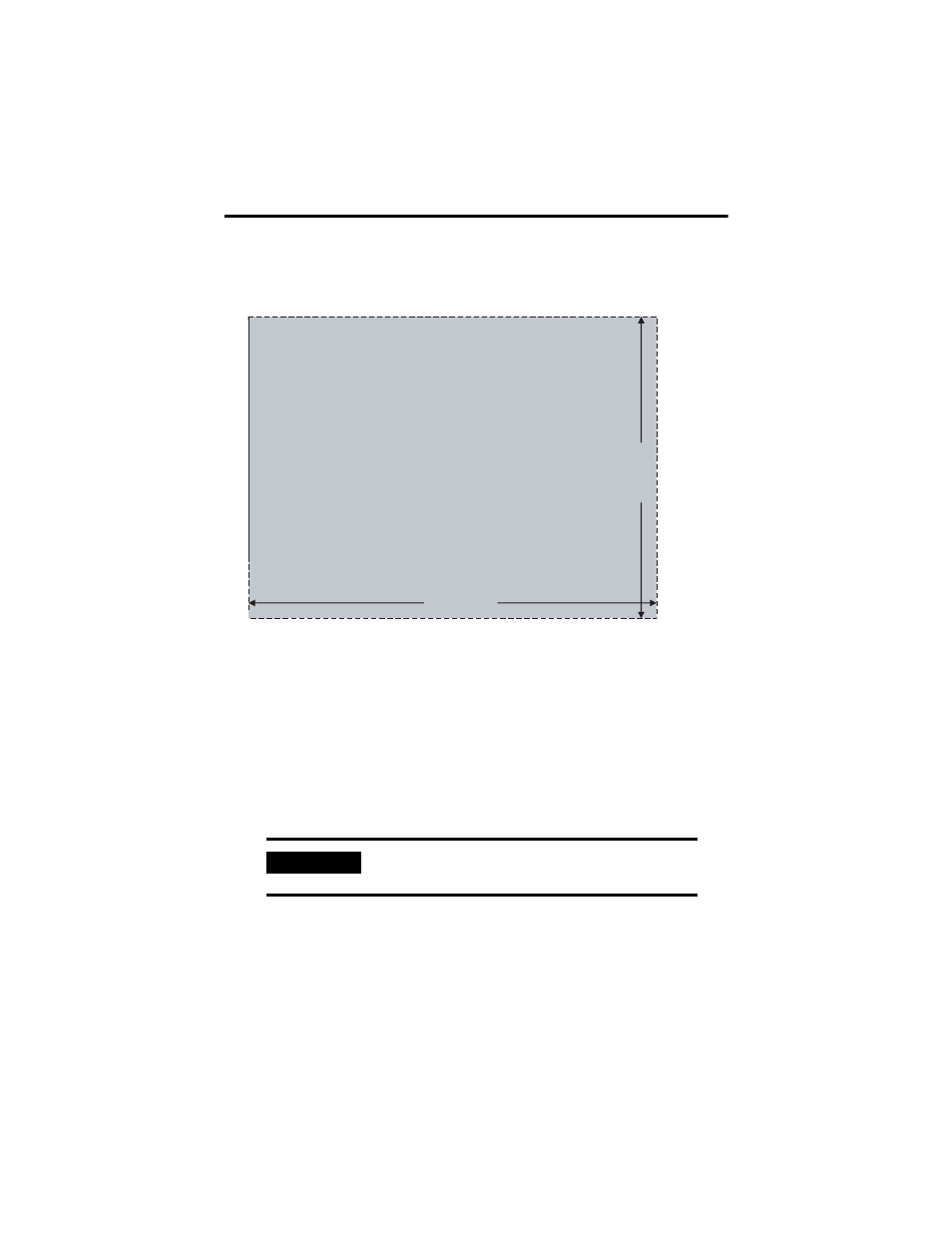

Dimensioni dell'apertura del pannello
Criteri per l'installazione a pannello
Osservare le seguenti precauzioni quando si installa il computer su un pannello:
• Verificare che dietro il pannello vi sia sufficiente spazio. Un armadio
profondo almeno 127 mm (5 pollici) è sufficiente.
• I pannelli di supporto devono essere almeno di calibro 14 per assicurare la
corretta tenuta all'acqua, alla polvere e per fornire un adeguato sostegno. Gli
elementi di montaggio forniti sono utilizzabili per pannelli spessi fino a 6
mm (0,24 pollici).
IMPORTANTE
I pannelli di supporto devono essere tagliati secondo
le specifiche prima di eseguire l'installazione.
Computer con schermo integrato VersaView 1500P
386,60 [15,22]
28
5,0 [11,2
4]
