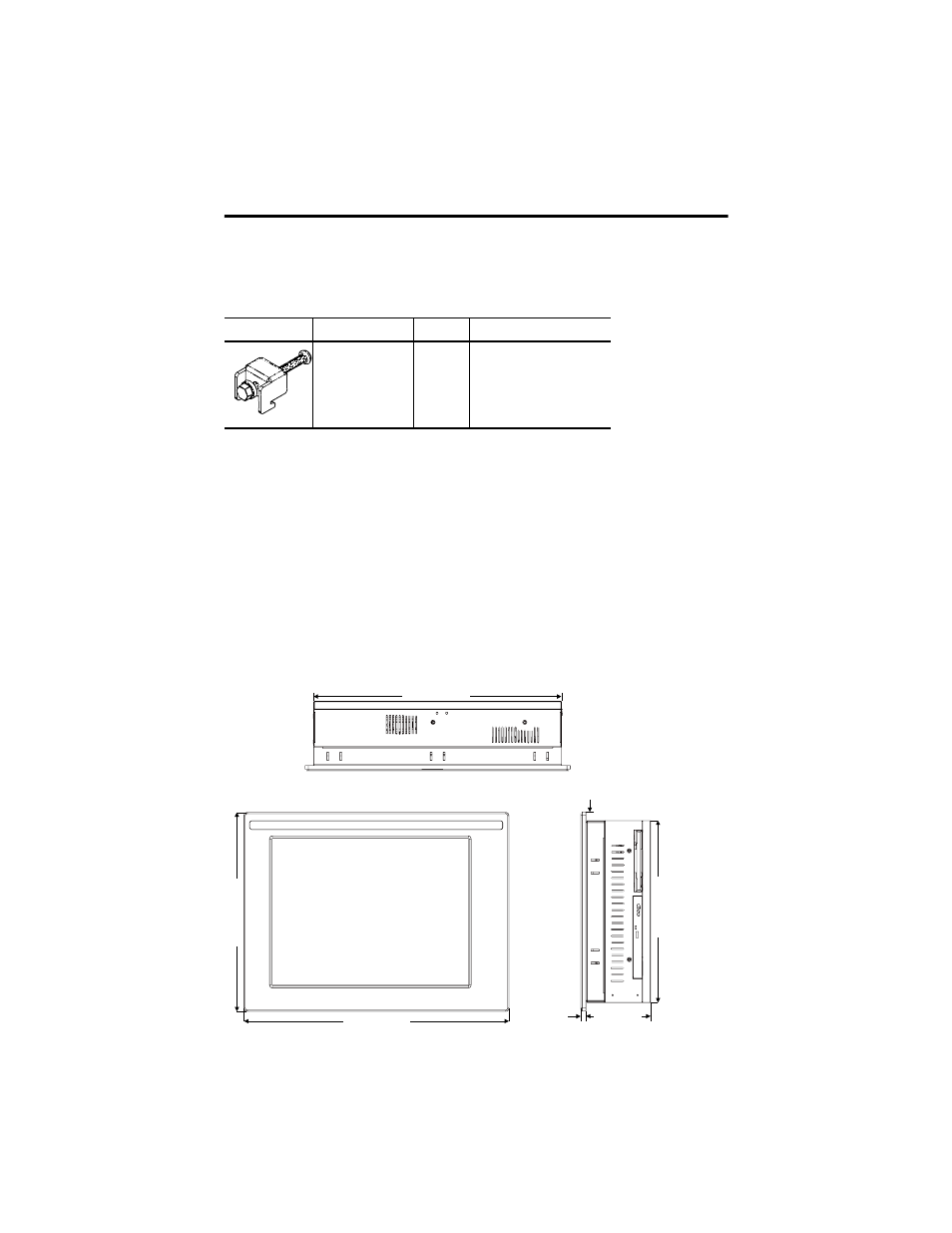

42 VersaView-Computer 6181H mit integrierter Anzeige
Publikation 6181H-IN001B-MU-P
Montagezubehör
Der Computer wird mit folgenden Montageelementen geliefert.
Erforderliche Werkzeuge
Neben den Werkzeugen, die für den Ausschnitt erforderlich sind, benötigen Sie folgende
Werkzeuge:
• Kreuzschlitz-Schraubendreher #2
Einbaumaße
VersaView-Computer 1500P mit integrierter Anzeige
Komponente
Beschreibung
Menge
Verwendungszweck
Montageklammern
10
Schaltschrank- oder
Gehäusemontage
Alle Maßangaben
in mm 383,60
410,00
13,20
99,9
8,00
282,60
309,00
