1
Publication 1797-6.5.6 - June 2005
Chapter
11
1797-OE8H FLEX Ex 8 Output HART
Analog Module
General Information
Modules must be used with a 1797-TB3 or -TB3S intrinsically safe terminal
base unit.
Module Installation
Rotate keyswitch on terminal base unit clockwise to position 4 as required for
this type of module. Do not change the position of the keyswitch after
wiring the terminal base unit.
Outputs
Each output channel can operate an analog field device. Do not apply any
non-intrinsically safe signals to this module.
When using an intrinsically safe electrical apparatus according to EN50020,
the European Community directives and regulations must be followed.
The channels in this module are electrically connected to each other.
Wiring to a 1797-TB3 or
-TB3S Terminal Base Unit

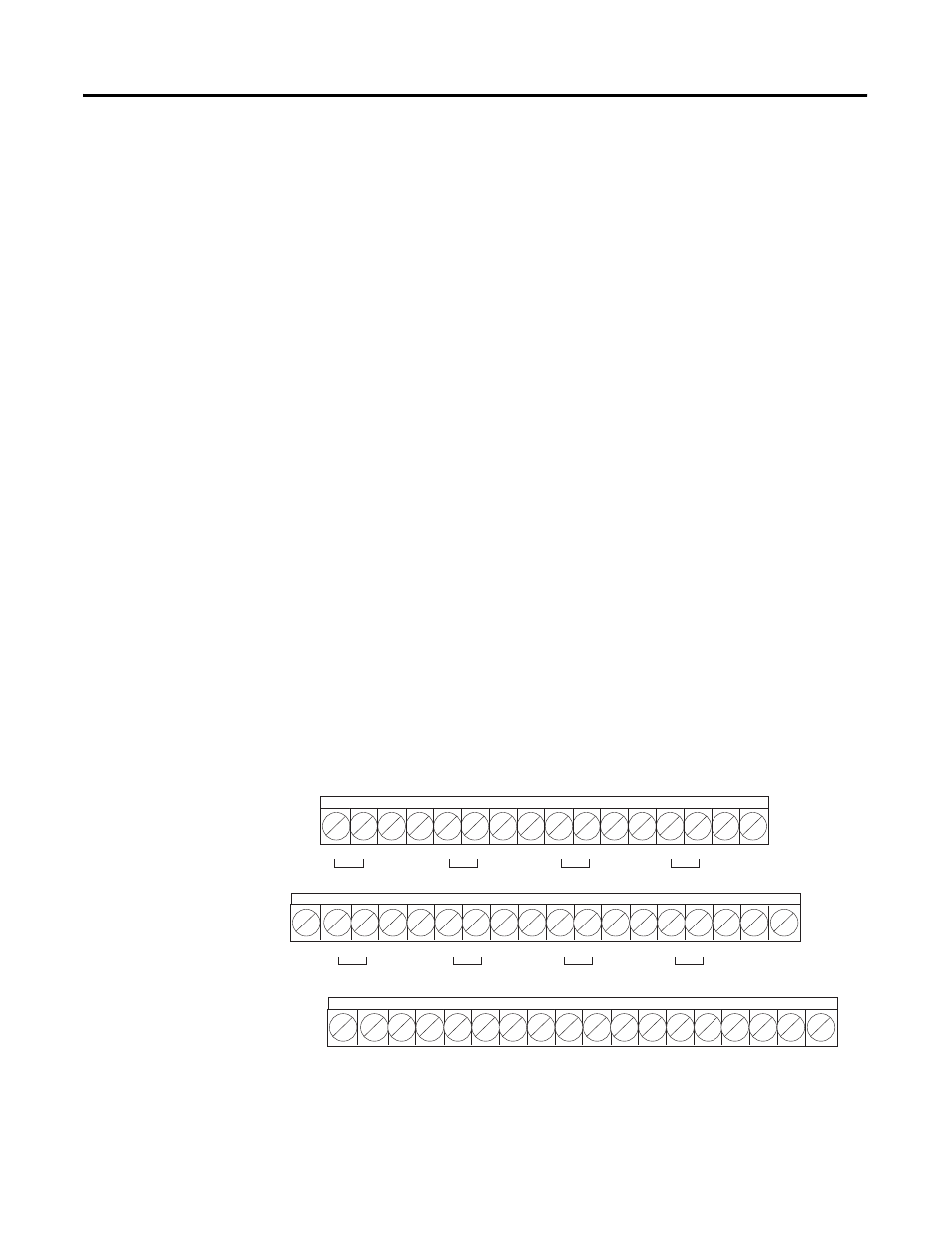

Connect wiring to the terminal base as shown below.
41440
Row A
Row B
Row C
ch0
ch1
ch2
ch3
+V
+V
-V
-V
+
+
+
+
-
-
-
-
ch4
ch5
ch6
ch7
+
-
+
-
+
-
+
-
No connections allowed to terminals 2, 3, 6, 7, 10, 11, 14, 15, 19, 20, 23,
24, 27, 28, 31, 32, 36, 37, 38, 39, 46, 47, 48, 49
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
