Rockwell Automation 2755 StrataScan Bar Code Readers User Manual
Page 9
1–3
Introduction to StrataScan Bar Code Readers
Publication 2755-6.13
3.
Install the reader.
Reference

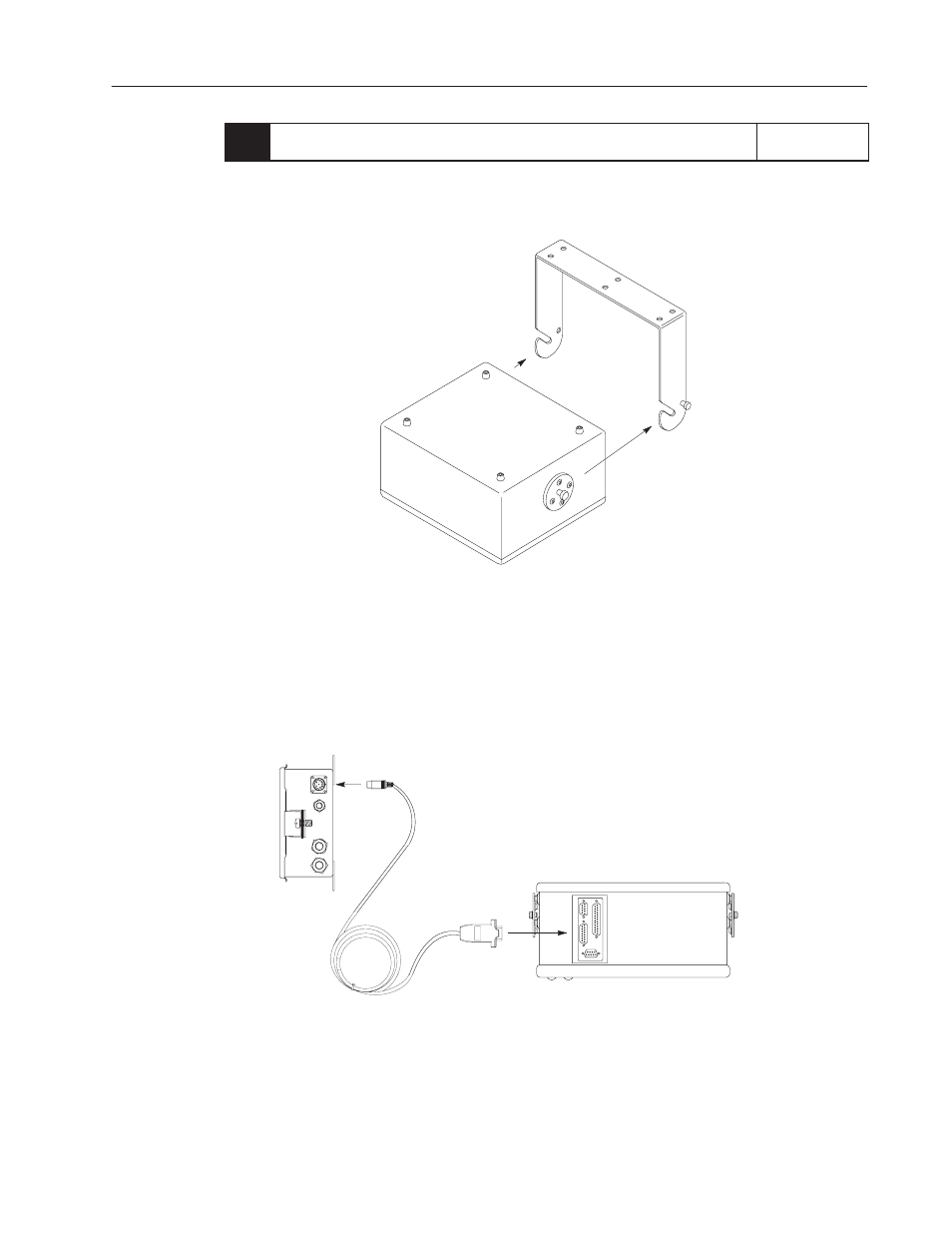

Mount the reader(s) (Catalog Nos. 2755-LHR–3C, 2755-LHR–5C, 2755-LHR–5B, 2755-LHR–5BX1)
to the mounting bracket(s) (Catalog No. 77126–898–01 or 77126–898–02).
Chapter 4
(Installing Your
Hardware)
Reader
Mounting
Bracket
Make sure placement of the mounting bracket allows you to connect the reader to the interface box
(Catalog No. 2755-LHB–1). Skip this information and step #4 if you are not using an interface box.
The standard cable (Catalog No. 2755–LHC–2) from the interface box to the reader is 10 ft. long
(3.05 m).
To 15-pin
connector
To interface box (8–pin connector)
Reader
Interface Box
