Reader master/slave cable pinouts – Rockwell Automation 2755 StrataScan Bar Code Readers User Manual
Page 59
Cable Pinouts
B–7
Publication 2755-6.13
1
8
9
15
1
13
14
25

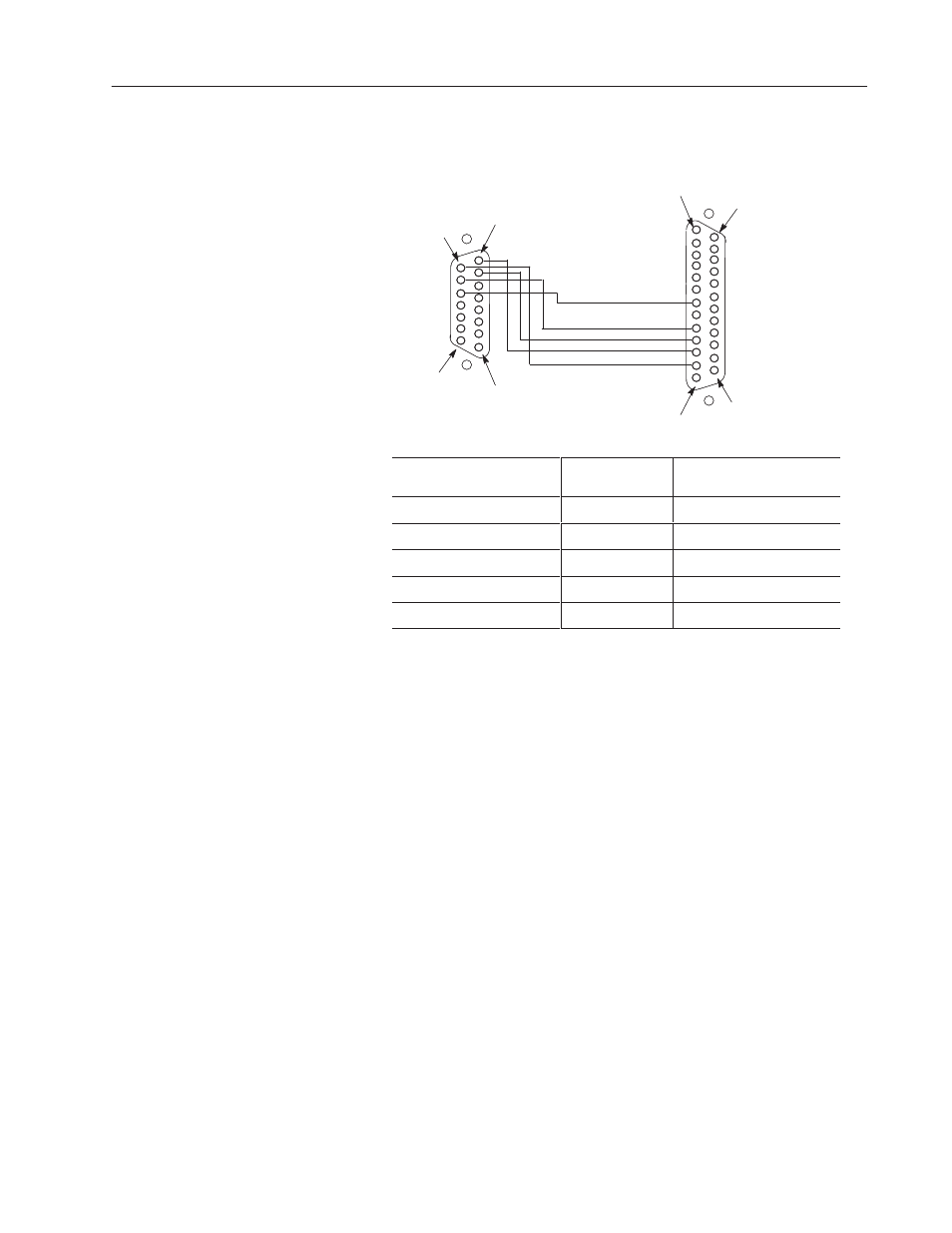

Master Reader Connector
Slave Reader Connector
1
8
9
15
1
13
14
25
Master Reader Connector
Slave Reader Connector
Master Reader Connector
(15-Pin) Pin Number
Signal from
Master Reader
Slave Reader Connector
(25-Pin) Pin Number
1
RXD (input)
3
2
CTS (output)
4
9
TXD (output)
2
10
RTS (input)
5
11
GND
7
Reader Master/slave Cable
Pinouts
