Mounting bracket dimensions – Rockwell Automation 2755 StrataScan Bar Code Readers User Manual
Page 51
Specifications
A–6
Publication 2755-6.13

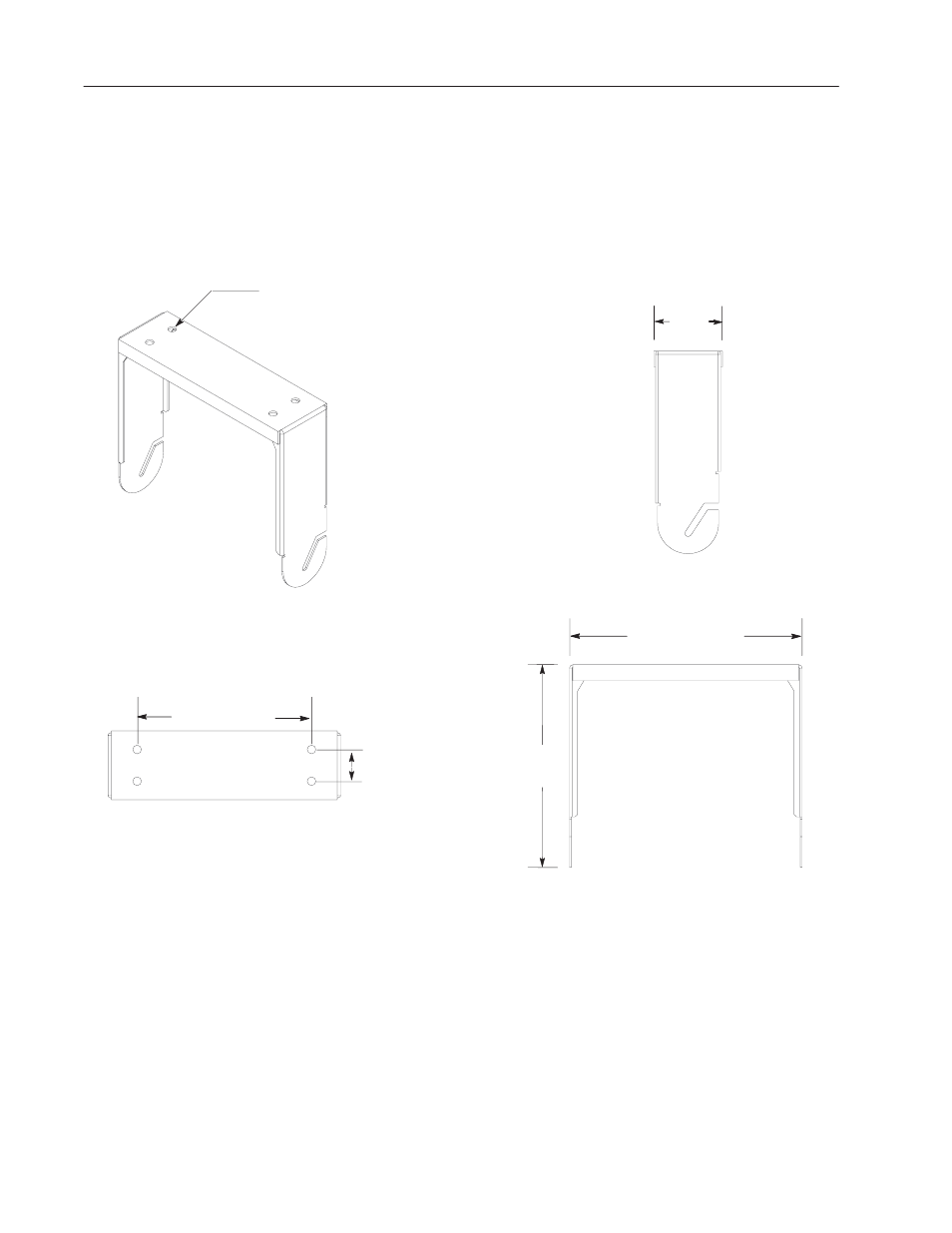

Mounting bracket dimensions for all StrataScan readers are shown
starting below:
Replacement Part Number 77126-898-01 (for reader
2755-LHR-5B)
3.25 in.
(8.26 cm)
8.25 in. (20.96 cm)
11.00 in. (27.94 cm)
9.75 in.
(24.77 cm)
0.41 in. (1.04 cm)
1.50 in. (3.81 cm)
Top View
Front View
Side View
Mounting Bracket
Dimensions
