Cable Pinouts B–10
Publication 2755-6.13
1
8
9
15
1
13
14
25
Master Reader Connector
Slave Reader Connector
1
8
9
15
1
13
14
25
Master Reader Connector
Slave Reader Connector
D
C E
F
G
B
A
H

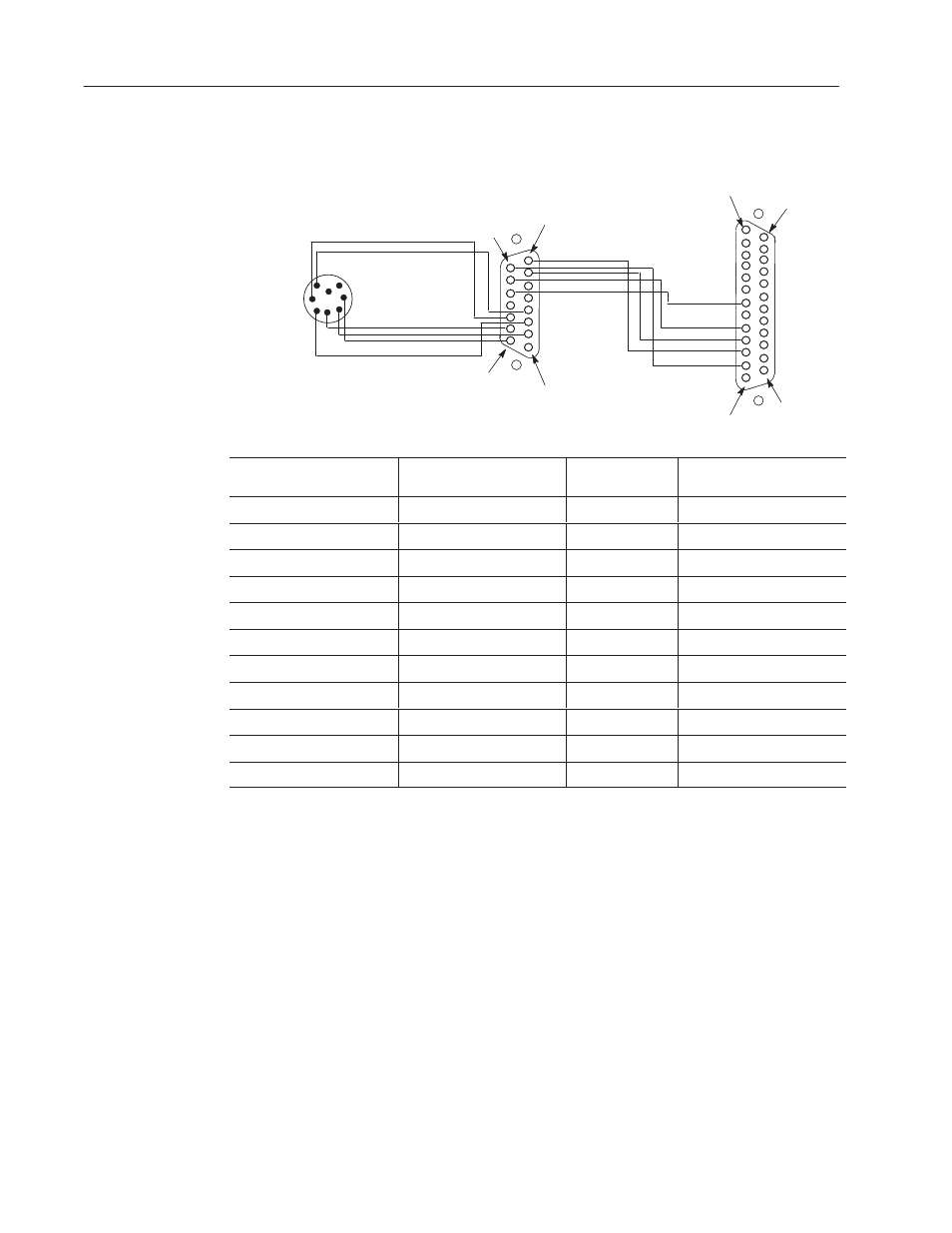

Interface Box Connector
Interface Box Connector
(8-Pin) Pin Number
Master Reader Connector
(15-Pin) Pin Number
Signal from
Master Reader
Slave Reader Connector
(25-Pin) Pin Number
No connection 1 RXD (input) 3
No connection 2 CTS (output) 4
A 5 Triac+ No connection
C 6 Sensor+ No connection
E 7 Sensor alarm+ No connection
No connection 9 TXD (output) 2
No connection 10 RTS (input) 5
No connection 11 GND 7
B 13 Triac– No connection
D 14 Sensor– No connection
F 15 Sensor alarm– No connection
Interface Box Master/slave
Cable Pinouts
