Cable Pinouts B–5
Publication 2755-6.13

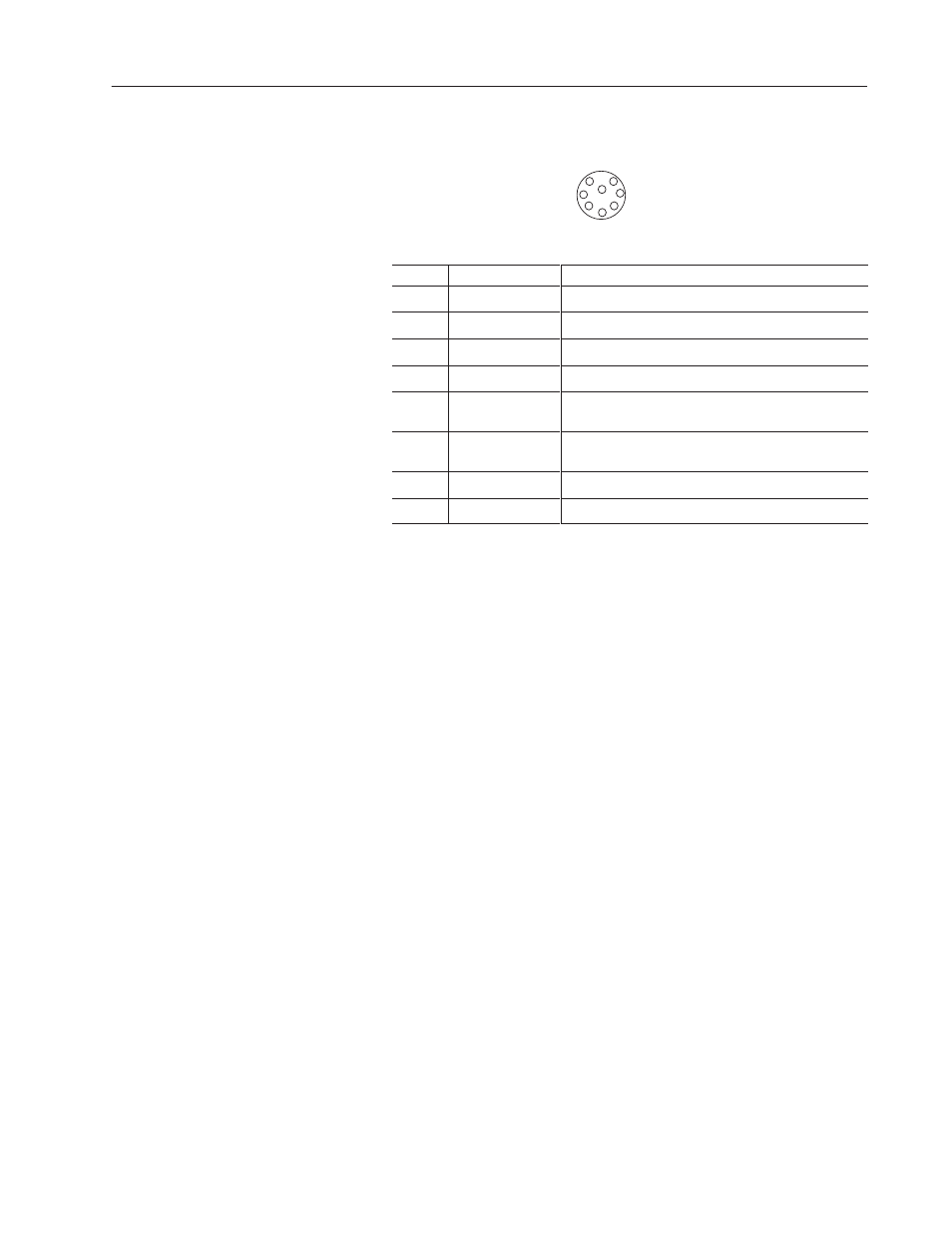

D
E C
B
A
F
G
H
Pin Signal Function
A Triac+ Controls the triac input.
B Triac– Controls the triac input.
C Sensor+ Provides the sensor’s object detected input signal.
D Sensor– Provides the sensor’s object detected input signal.
E Sensor Alarm
Provides the sensor’s optional marginal sensing alarm
input signal.
F Sensor Alarm
Provides the sensor’s optional marginal sensing alarm
input signal.
G Not Used Pin not used.
H Not Used Pin not used.
Interface Box Pinouts
