End the sfc, Use a stop element – Rockwell Automation Logix5000 Controllers Sequential Function Charts Programming Manual User Manual

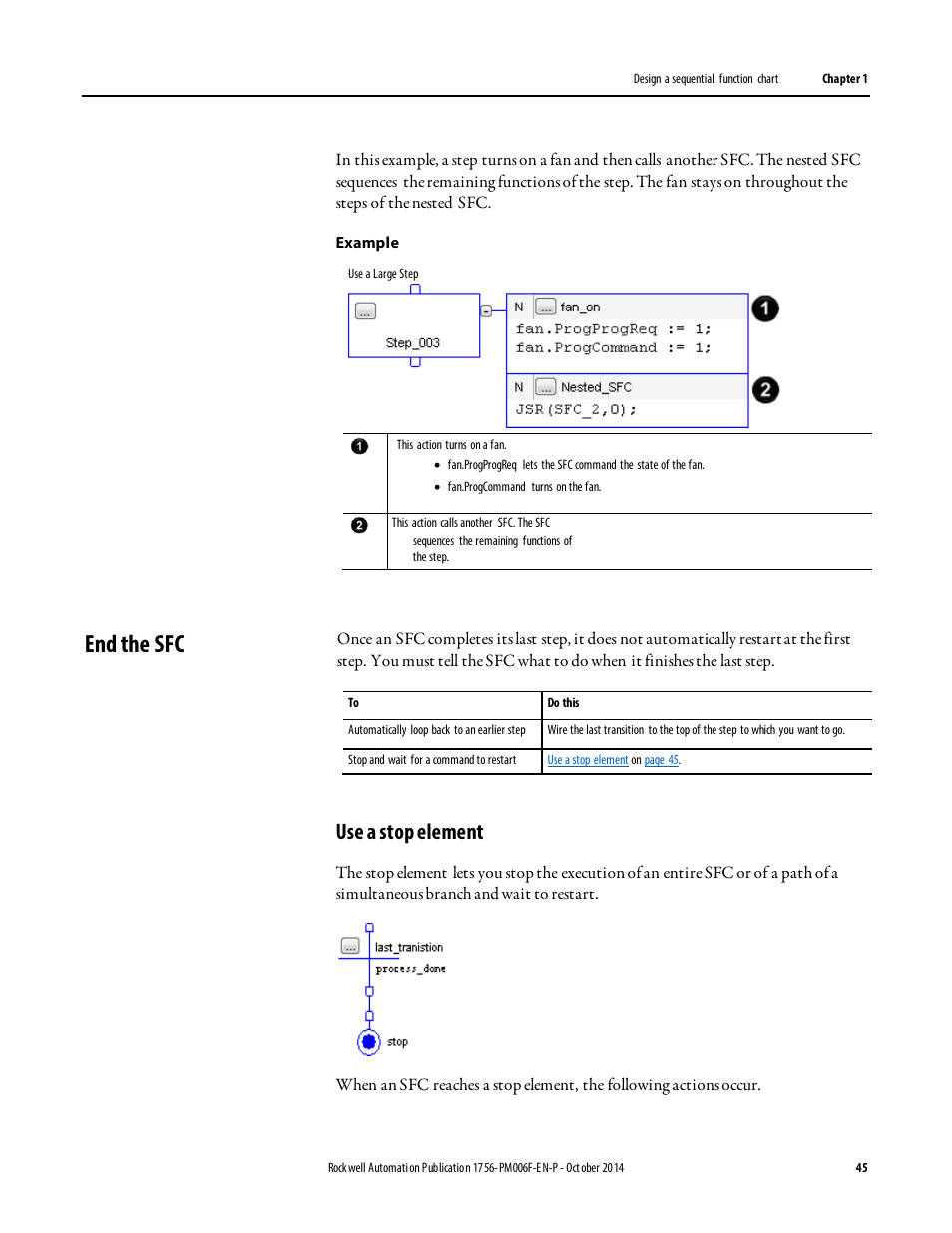

Page 45
