FLEX I/O Modules 3-17
Wiring the Analog Output Module in Current Mode
In addition to following the General Considerations when using Any FLEX
I/O Analog Output Module on page 3-13, consider the following application
guideline before wiring the module in current mode:

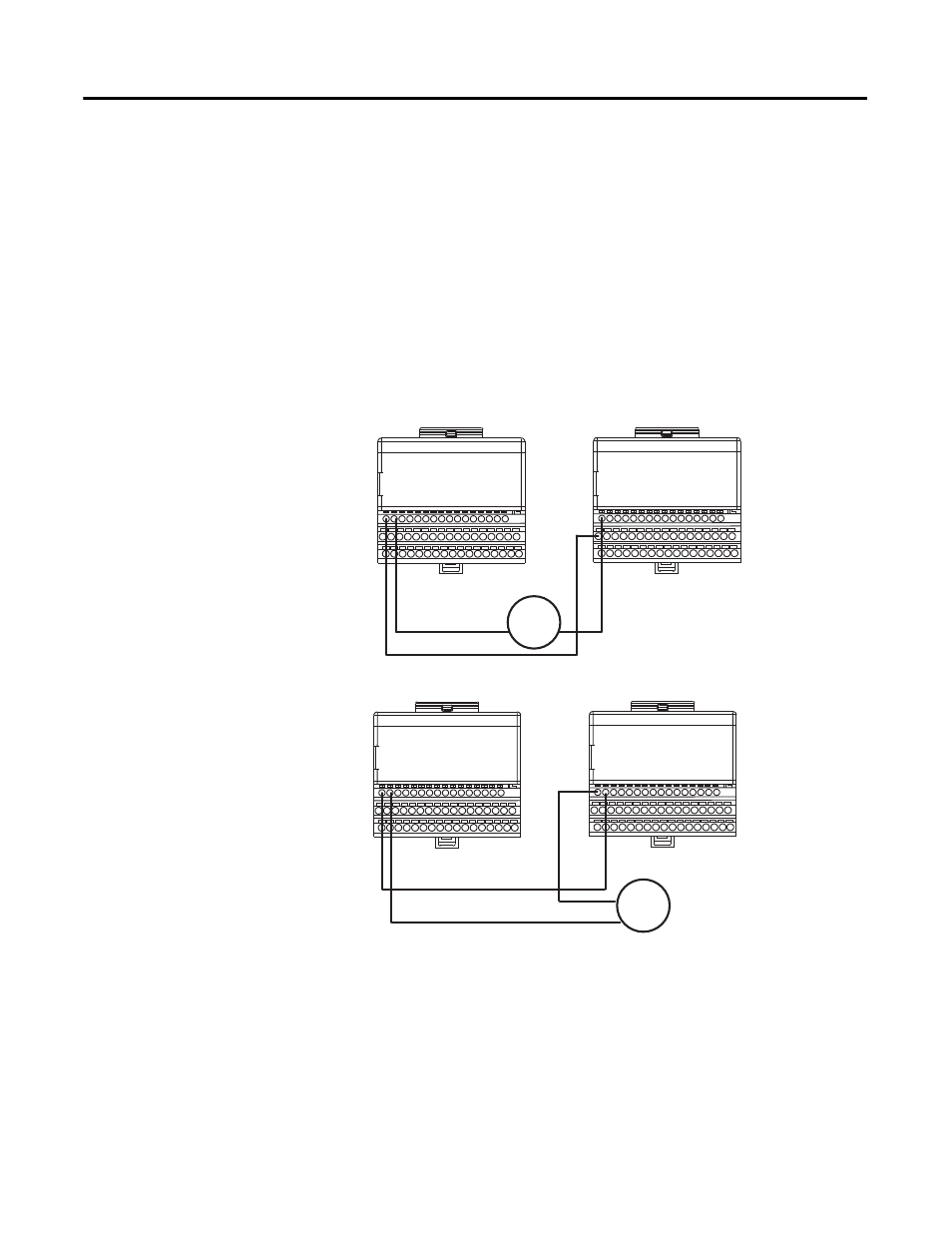

• Placement of Other Devices in Current Loop: you can locate other
devices in an output channel’s current loop anywhere as long as the
current source can provide sufficient voltage to accommodate all of the
voltage drops.
+ _
+ _
1794-TB3
1794-IF4I
Analog Output
Module
1794-TB3
1794-IE8
Analog Input
Module
Isolated Analog
Output Module
Isolated Analog
Input Module
1794-OF4I
1794-TB3 1794-TB3
Actuator
Actuator
1794-OE4
