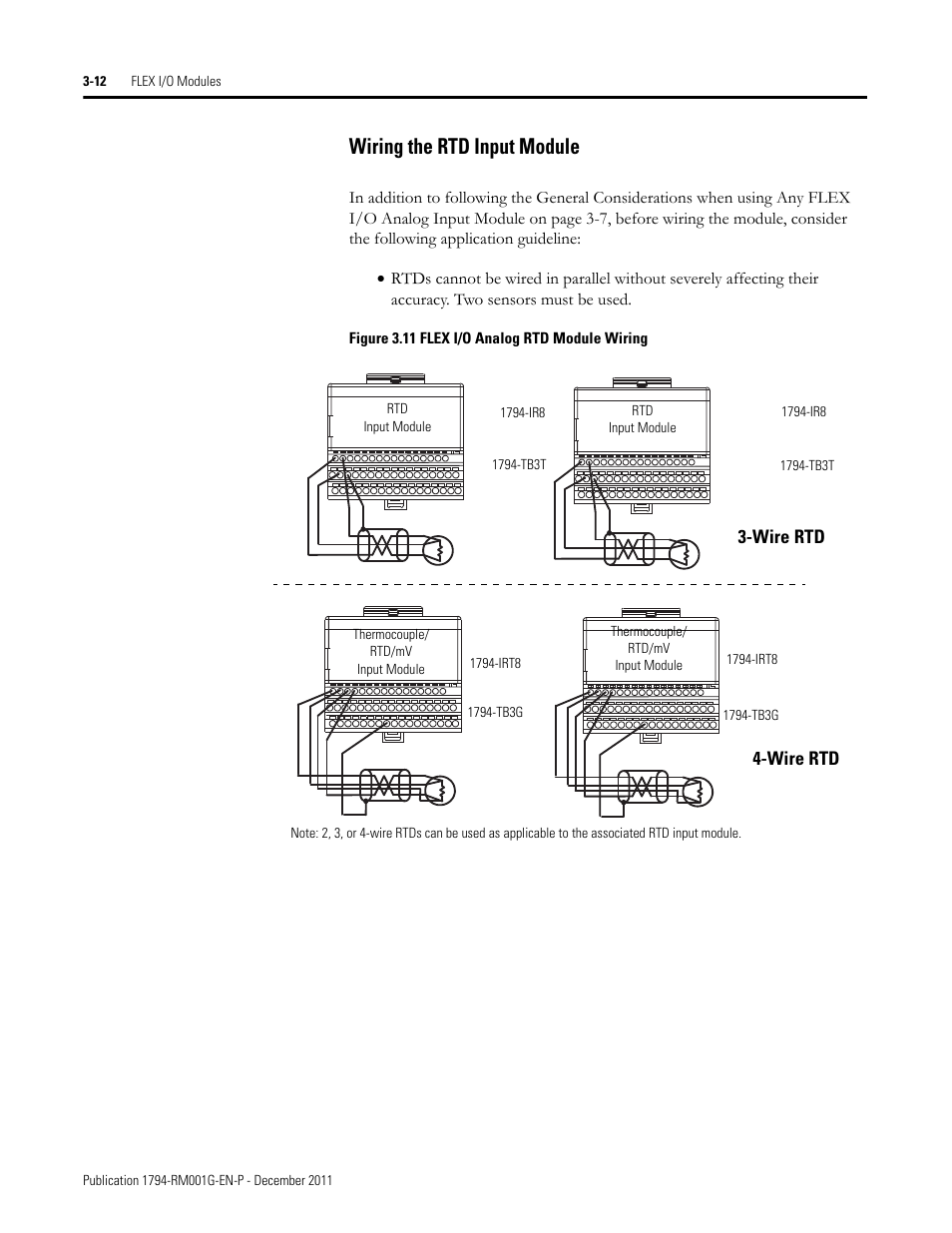

Wiring the rtd input module – Rockwell Automation 1794 FLEX I/O System with ControlLogix for SIL2 User Manual
Page 34
