Rockwell Automation Publication 1734-UM018B-EN-P - October 2013
59
Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software Chapter 5
6. Enter or select values for Series, Revision, Electronic Keying, Connection,
and Chassis Size, noting that we used the following values:
Connection choices
include:
•
None – the adapter makes a direct connection to each of the modules
referenced by the data. RPI is disabled in this case.
•
Rack optimization– digital I/O data is collected into a rack image. This
does not include analog or specialty I/O modules.
•
Listen only - rack optimization– read or verify data only, but does not
control the modules. When you have multiple controllers - one controller
is used to control and the other controllers are used to monitor.
7. Because we are making a mixed connection (both a direct connection and
rack-optimized connection), choose Rack Optimization as the
Connection for the 1738-AENT adapter and click OK.

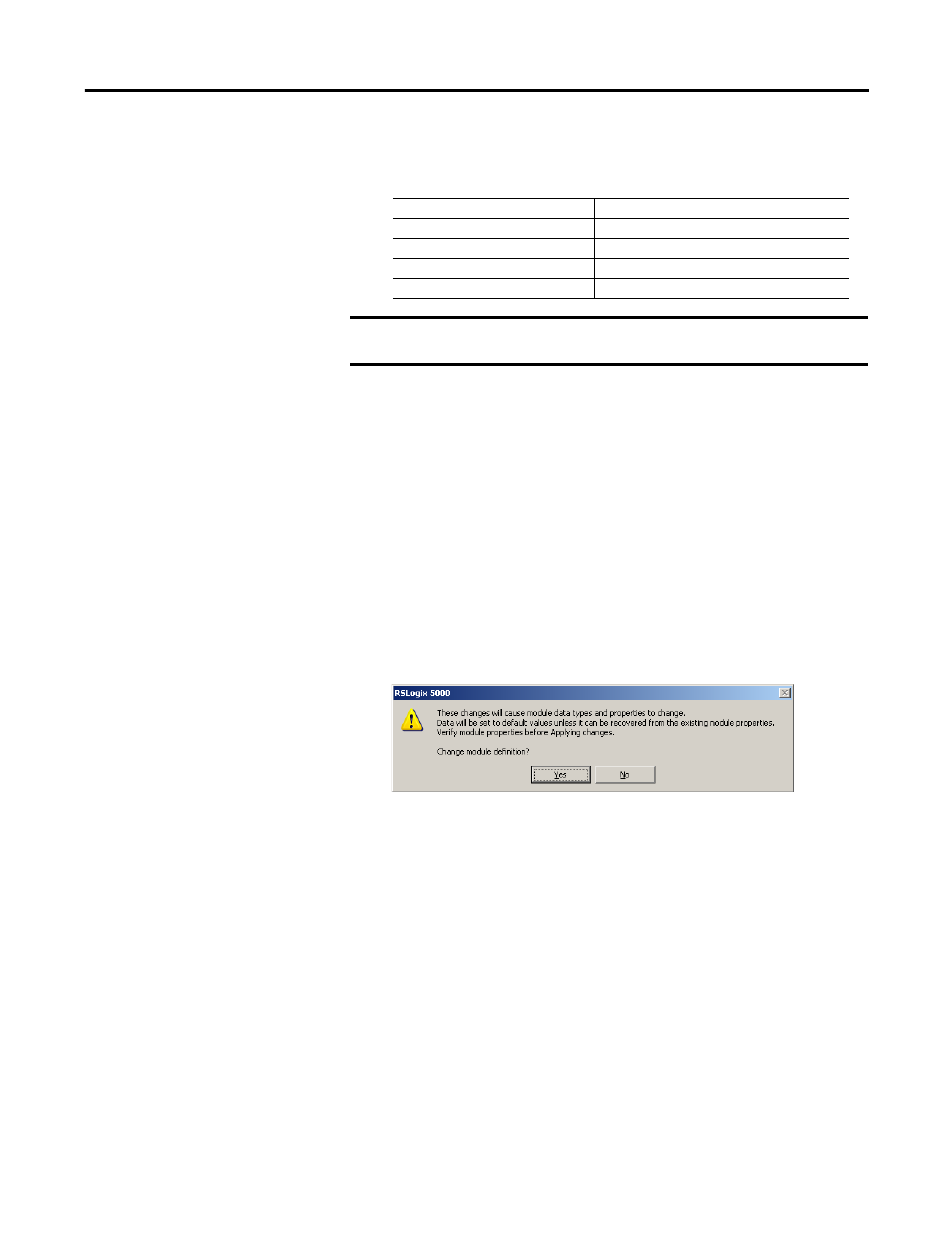

A dialog box opens.
8. Click Yes.
Series
B
Connection
Rack Optimization
Chassis Size
5
Electronic Keying
Compatible Module
Revision
4.3
IMPORTANT
The chassis size value equals 1 for the adapter plus the number of I/O
modules installed (physically present on the I/O backplane).
