Overview of the 1734 POINT I/O EtherNet/IP Adapter Chapter 1
Physical Features of Your
Adapter The 1734 Adapters have the following components:
• Removable Terminal Block (RTB);
• Network address Thumbwheel
• Connector (one RJ45 EtherNet/IP connector)
• Status indicators (Module Status; Network Status; POINTBus Status;
Network Activity; Link 1 Activity/Status; Link 2 Activity/Status;
System Power; Field Power)

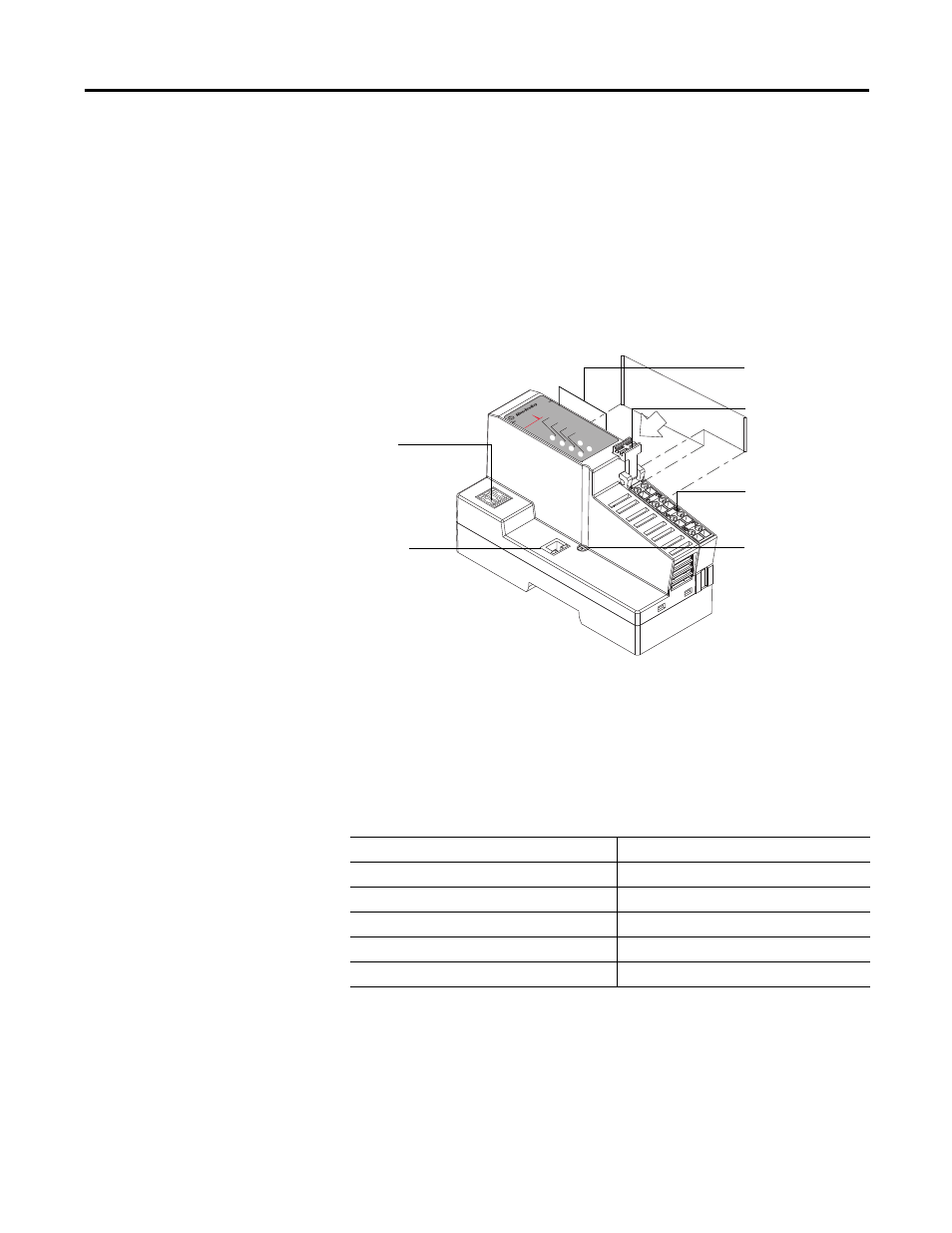

Physical Features of the 1734-AENT Series B Adapters
Hardware/Software
Compatibility The I/O adapters and the applications described in this manual are compatible
with the following firmware revisions and software releases.
Contact Rockwell Automation if you need software or firmware upgrades to use
this equipment
Module Status
Network Activity
Network Status
Point Bus Status
System Power
Field Power
POINT I
O
1734-AENT Series B
0 2 0
31533
Status indicators
RTB removal handle
DIN rail locking screw
(orange)
Network
address
thumbwheel
EtherNet
network
RJ45
connector
Removable Terminal
Block (RTB)
Product Firmware Revision/ Software Release
1734-AENT Series B adapter 4.002 or later
1756-ENBT module 4.5 or later
Logix controller 17 or later
RSLogix 5000 software 17 or later
RSLinx software 2.56 or later
