System Components
We used the following components for the example applications. You need the
same or similar components to set up your own control system using POINT I/O
modules on an EtherNet/IP network.
Quantity
Product Name
Catalog Number
Hardware
1
POINT I/O EtherNet/IP adapter
1734-AENT
1
POINT I/O 24V DC sink output module
1734-OV4E/C
1
POINT I/O relay output module
1734-OW2/C
1
DIN rail
199-DR1 or equivalent
1
ControlLogix chassis
1756-A4 (or 1756-A7, 1756-A13,1756-A17)
1
ControlLogix power supply
1756-PA72 (or 1756-PB72)
1
L63 controller
1756-L63
1
ControlLogix EtherNet/IP bridge module 1756-ENBT
1
Personal computer that supports
RSLogix 5000 software
Any appropriate model running Windows NT
4.0, Service Pack 6A or higher
1
Ethernet switch
Refer to manufacturer’s specifications
1
24V DC power supply
1734-EP24DC
Associated media and connectors as needed
Software
1
RSLinx communications software,
version 2.31.00 or later
9355-WAB, 9355-WABOEM, 9355-WABC

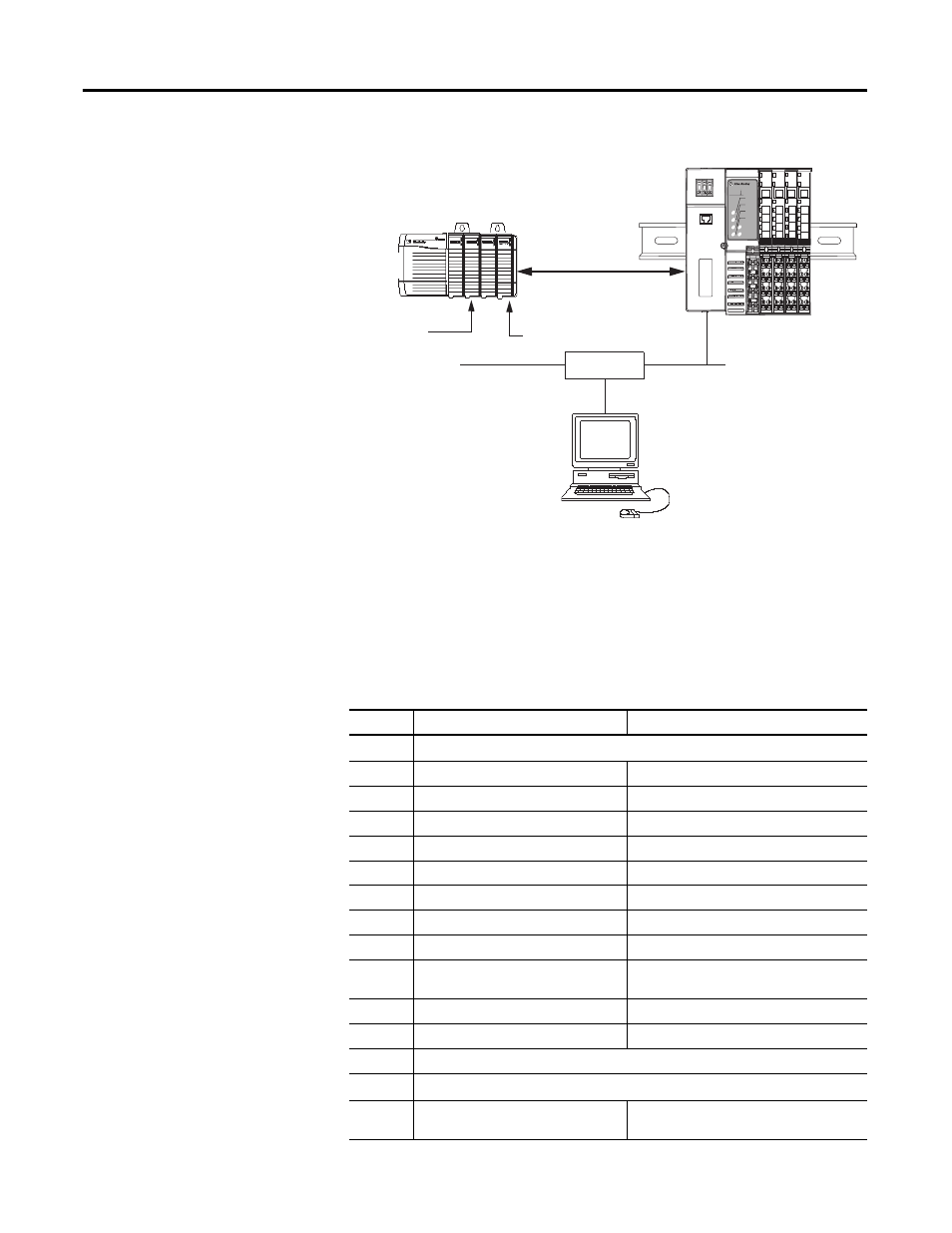

31393
Local
chassis
POINT I/O
L63
controller (slot 1)
1756-ENBT
10.88.70.4 (slot 3)
Data
Switch
10.88.70.26
Programming
terminal
Slot 0 1 2 3
1734-AENT
10.88.70.2
Slot 0 1 2 3 4
0 2
0
1734-AENT Series B
Module
Status
Network
Activity
Network
Status
Point Bus
Status
System
Power
Field
Power
POINT I O
IP ADDRESS
