38 Rockwell Automation Publication 1734-UM018B-EN-P - October 2013
Chapter 4 Configure the Adapter for Direct Connection in RSLogix 5000 Software
Add the POINT I/O Modules to the I/O Configuration
You now add POINT I/O modules to the I/O Configuration List under the
adapter.
In this example, you add a 1734-OW2 relay output module and a 1734-OV4E
sink output module with standard configurations. Use these steps as a guide when
configuring different I/O modules for your system.
Add the Digital Relay Output Module

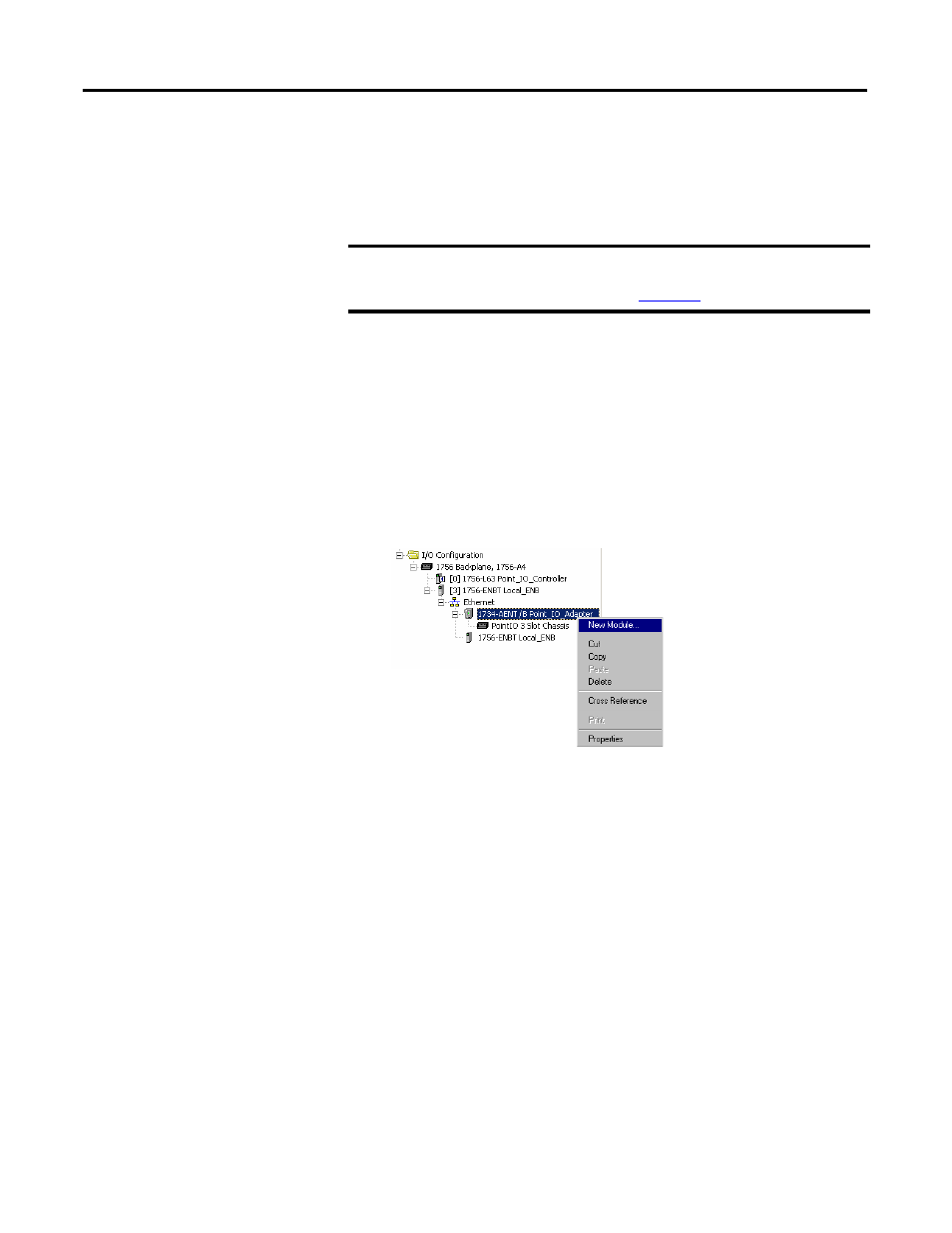

1. Highlight the 1734-AENT/B adapter under the I/O Configuration
folder, right-click and select New Module.
The Select Module Type dialog opens.
2. Select the appropriate filter for Module Type Category (for the example we
selected Digital) and Module Type Vendor (for the example we selected
Allen-Bradley).
Note: to select only one category you will need to unselect those already
selected.
TIP ATTENTION: This example application uses I/O module default
configurations. For more information, refer to the POINT I/O
Selection Guide, publication
1734-SG001 .
