54 Rockwell Automation Publication 1734-UM018B-EN-P - October 2013
Chapter 5 Configure the Adapter for Direct Connection and Rack Optimization in RSLogix 5000 Software
Configure the I/O Modules You now add the I/O modules to the controller I/O configuration. To do this,
first add the local 1756-ENBT Bridge module to the I/O configuration. Next,
add the I/O adapter as a child of the 1756-ENBT module, and then add the I/O
modules as children of the adapter.
Add the Local EtherNet/IP Bridge to the I/O Configuration

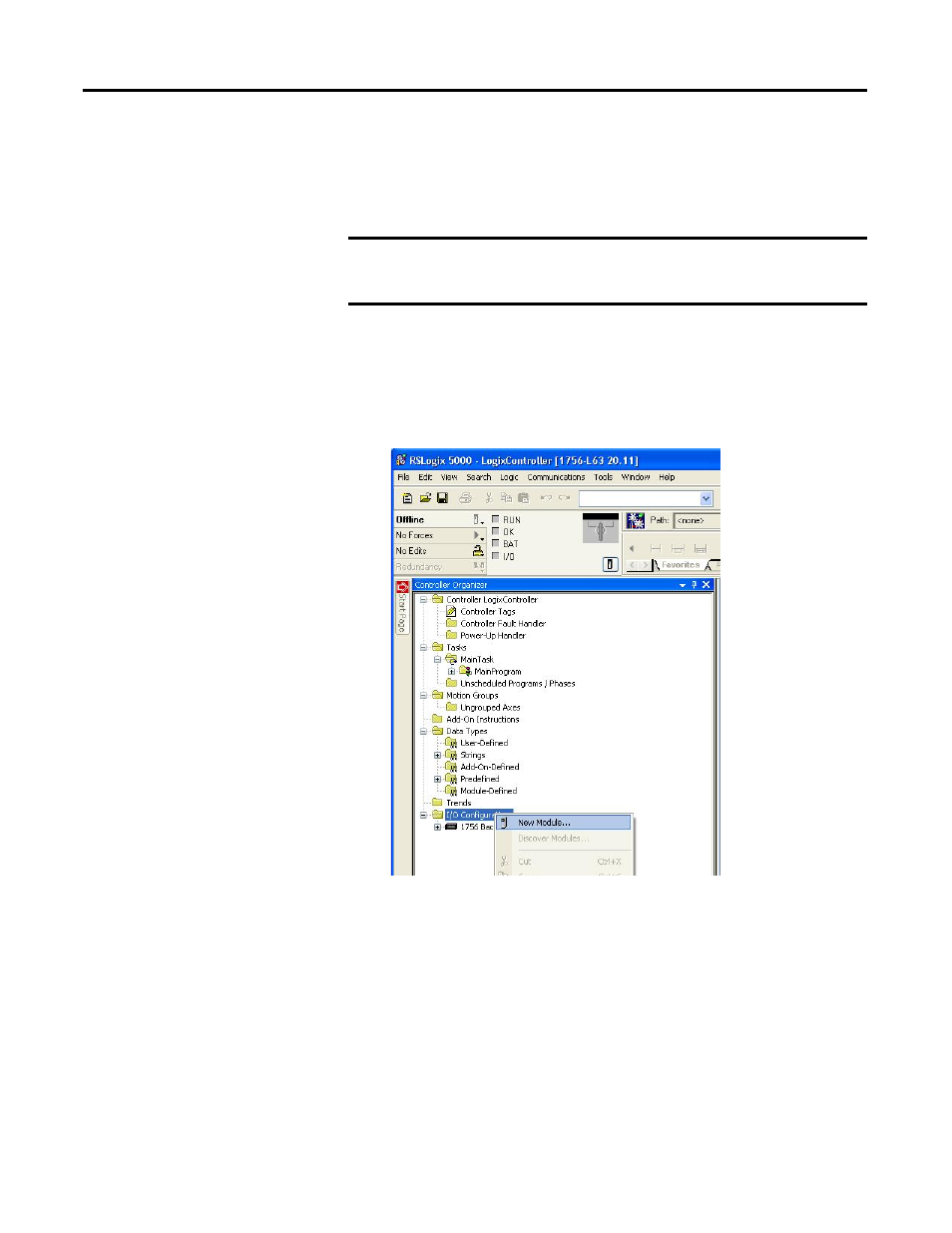

1. Right-click the I/O Configuration folder in the project dialog and select
New Module.
The Select Module Type dialog opens.
IMPORTANT Click the Help button on the configuration dialog shown in this
section if you need assistance in selecting and setting the
parameters.
