Auxiliary power cable, Chapter summary and what’s next – Rockwell Automation 1732E-IB16M12SOEDR EtherNet/IP ArmorBlock supporting Sequence of Events User Manual
Page 23
Publication 1732E-UM002A-EN-P - March 2010
Install Your Module 15
Auxiliary Power Cable
Attach the mini-style 4-pin connector to the mini-style 4-pin receptacle as
shown below.
Auxiliary Power is based on a 4-pin connector system and is used to provide
24V DC power to I/O modules and other devices. Pins 3 and 4 are connected
inside the module.
Chapter Summary and
What’s Next
In this chapter, you learned how to install and wire your module. The
following chapter describes how to configure your module to communicate on
the EtherNet/IP network by providing an IP address, gateway address, and
Subnet mask.
ATTENTION
To comply with the CE Low Voltage Directive (LVD), this
equipment and all connected I/O must be powered from a
source compliant with the following:
Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage
(PELV).
4
2
3
1

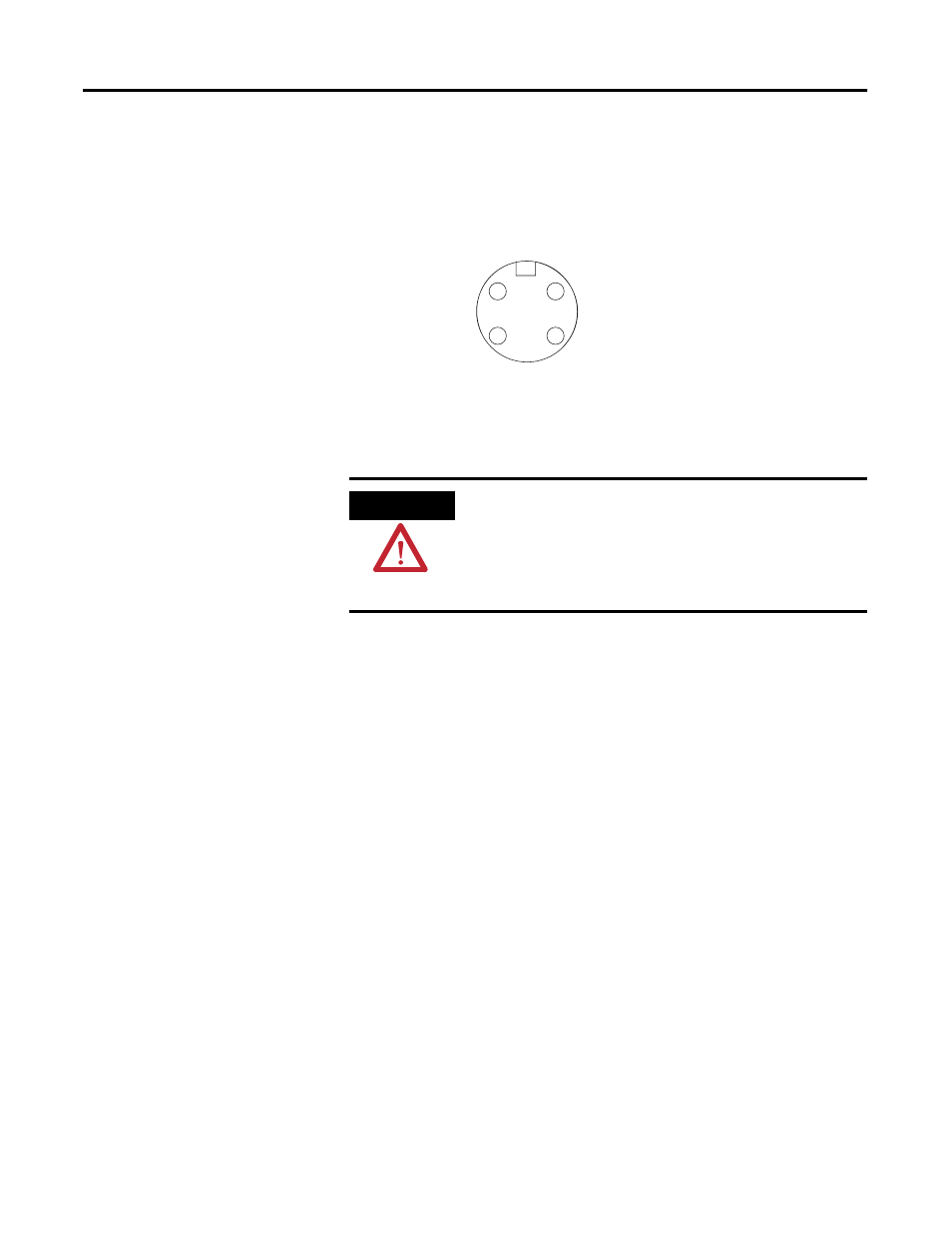

Mini-style 4-Pin Male Receptacle
44809
(View into receptacle)
Pin 1 NC
Pin 2 Sensor/MDL power+
Pin 3 Sensor/MDL power-
Pin 4 NC
