14 Mold Pressure Module
Publication 1746-5.13 July 1998
Convert counts as read from the module to PSI, where
F8:0 = Full load sensor range, in pounds
F8:1 = Ejector pin diameter, in inches
0000
CPT
Compute
Dest
F8:2
0.0<
Expression ( I:8.1 * F8:0 ) | ( ( F8:1 * F8:1 ) * 2894.58 )

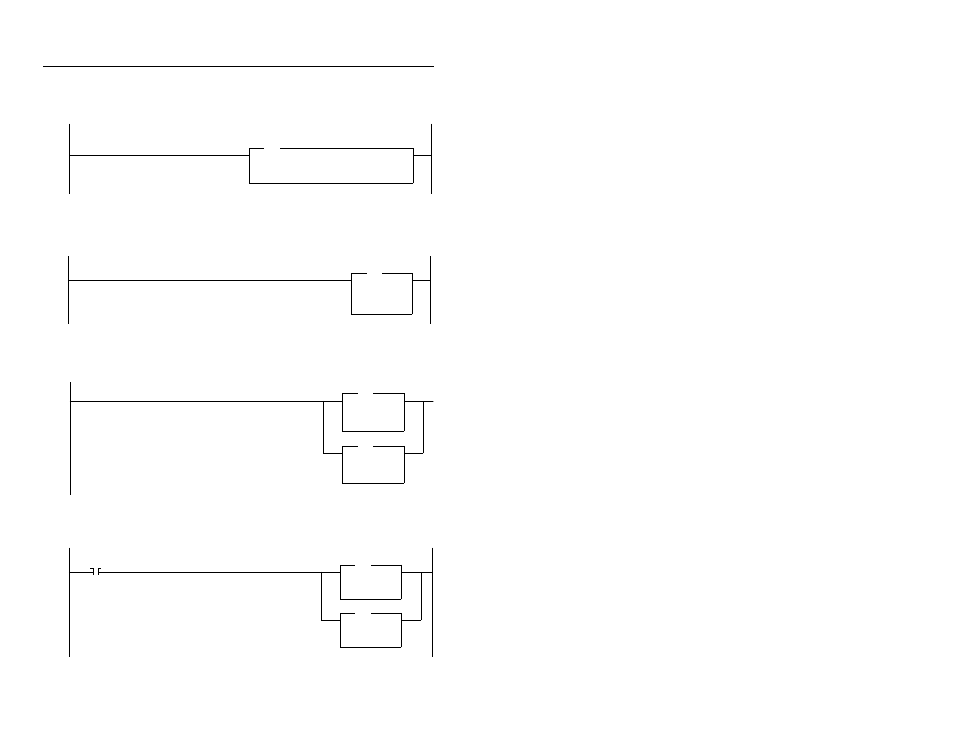

CPT
41321
Example 5
0000
MOV
Move
Source
N105:1
0<
Dest O:8.2
0<
MOV
Write Hydraulic
Pressure to MPM
41322
Example 6
Save Channel 1 and 2 Configuration
0000
COP
Copy File
Source
#M0:8.0
Dest #N7:0
Length 49
COP
COP
Copy File
Source
#M1:8.0
Dest #N7:50
Length 49
COP
41323
Example 7
Restore module configuration on first program scan
0000
S2:1
15
First Pass
COP
Copy File
Source
#N7:1
Dest #M0:8.0
Length 49
COP
COP
Copy File
Source
#N7:50
Dest #M1:8.0
Length 49
COP
41324
Example 8
