Rockwell Automation 440R MSR300 Modular Safety Control System User Manual
Page 38
MSR300 Safety System Manual
Rockwell Automation
MSR300 Manual.doc
Pg 38 of 85
4.3.2 LED Indicators
Function / Diagnostics
Ch 1
Ch 2
Relay 1 on
Green
-
Relay 1 off
Off
-
Relay 2 on
-
Green
Relay 2 off
-
Off
4.4 MSR329 Muting Lamp Module
Functions:
Connection and control of muting lamps.
Capacity:
Two main muting lamps plus two reserve muting lamps
Muting is the safe, automatic and temporary suspension of an electrosensitive protective
device, in accordance with EN 61496-1 A.7. Muting is typically applied to allow material in
process to be moved into and out of a hazardous area. Typically, muting causes the
signal inputs from safety barriers such as opto-switches or light curtains to be temporarily

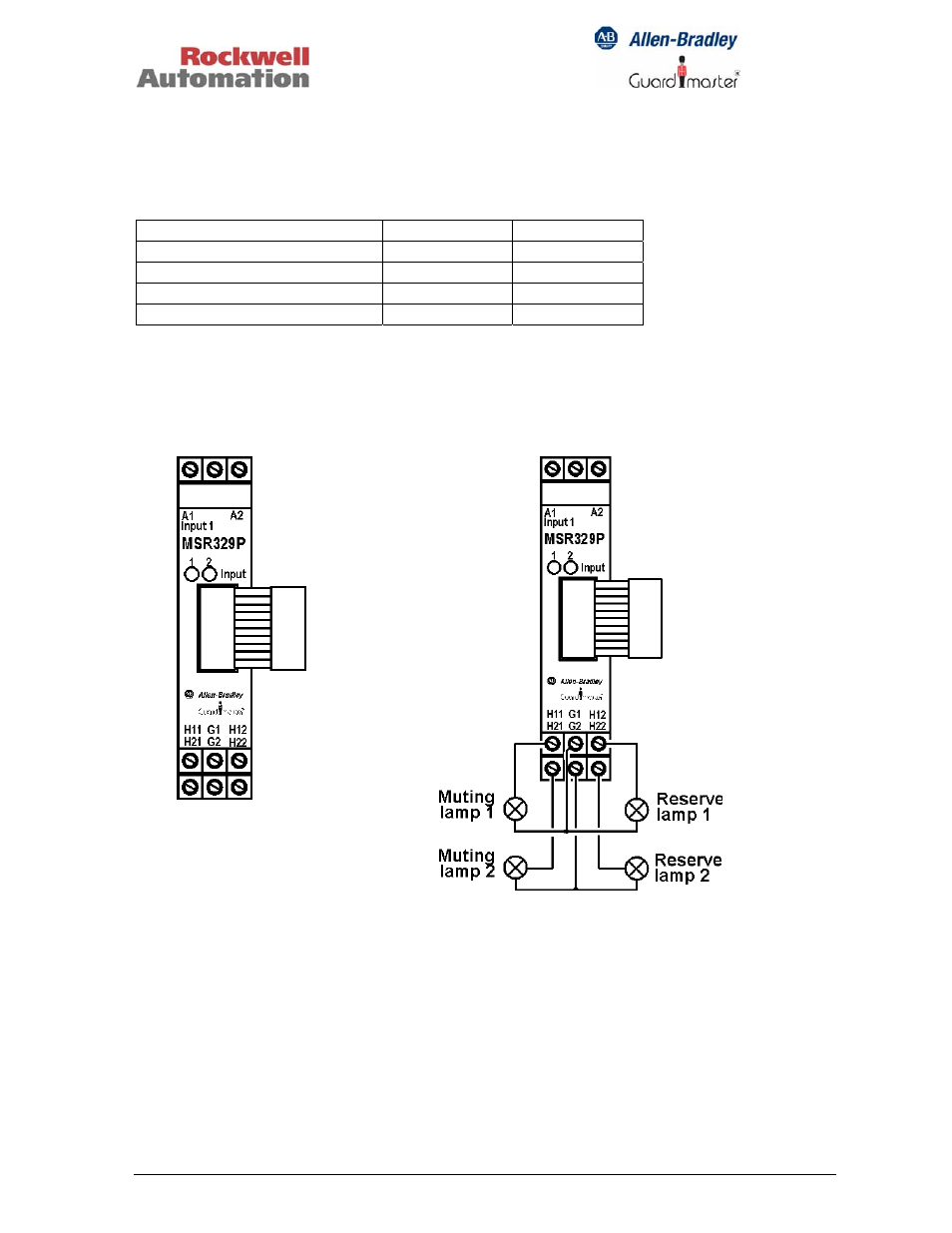

MSR329 Connections
MSR329
Front View
