Rockwell Automation 440R MSR300 Modular Safety Control System User Manual
Page 23
MSR300 Safety System Manual
Rockwell Automation
MSR300 Manual.doc
Pg 23 of 85
4.1.3 Settings, Connections, Start-Up

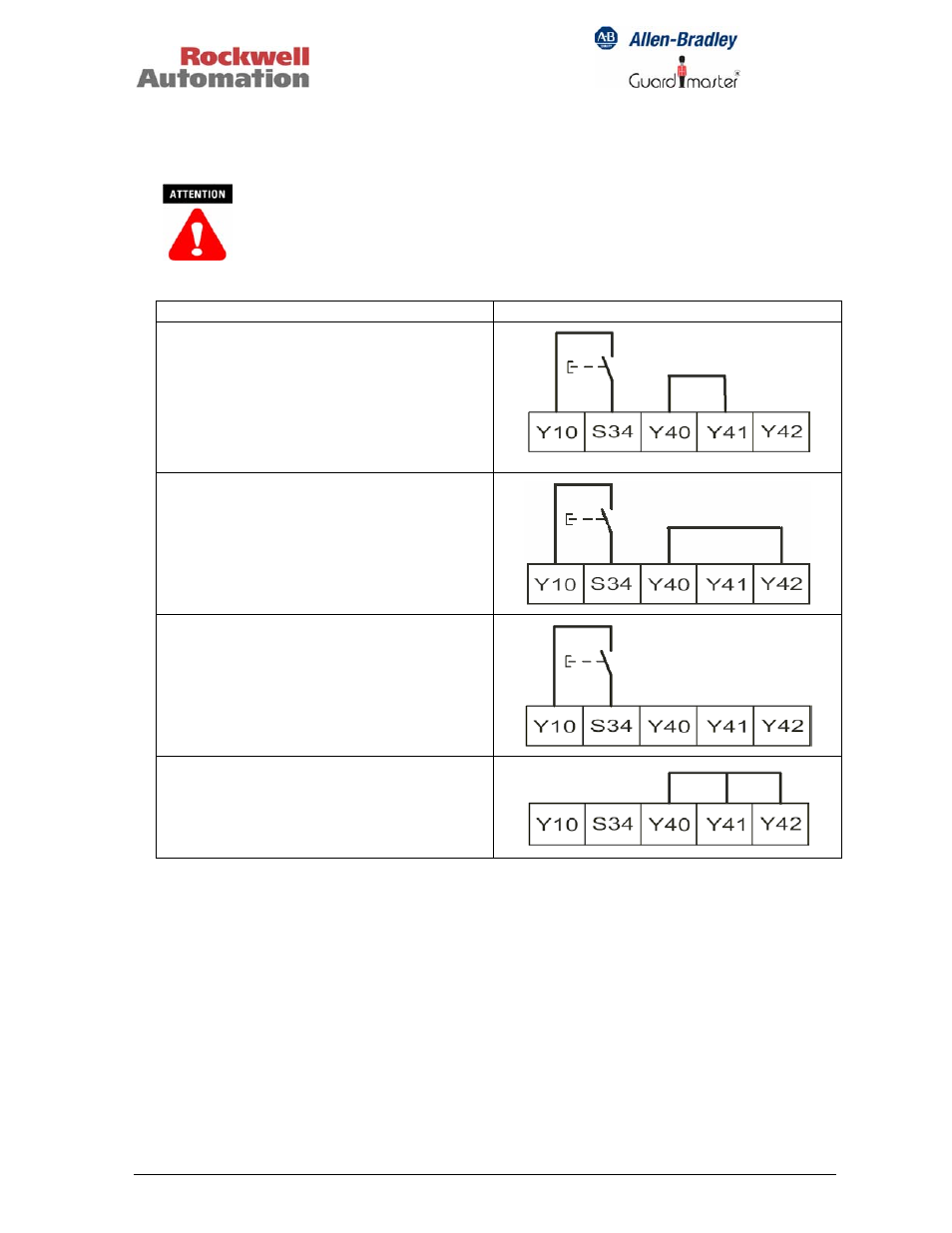

Reset mode selection (reset switch connection and jumper settings):
Reset button has to be installed at a place where the dangerous area can
be visual monitored. Automatic reset is only allowed if the start of the
machine cannot lead to a hazard or a restart interlock must be
accomplished by other means of control (per EN 60204-1)
Reset behavior
Circuit
Group1 and 2: manual, monitored reset
Group3: automatic reset
Group 1 and 2: automatic reset
Group 3: manual, monitored reset
Groups1, 2 and 3: manual, monitored
reset
Groups 1, 2 and 3: automatic reset
