Robot cell 3 areas, Msr300 system configuration, 0 degrees – Rockwell Automation 440R MSR300 Modular Safety Control System User Manual

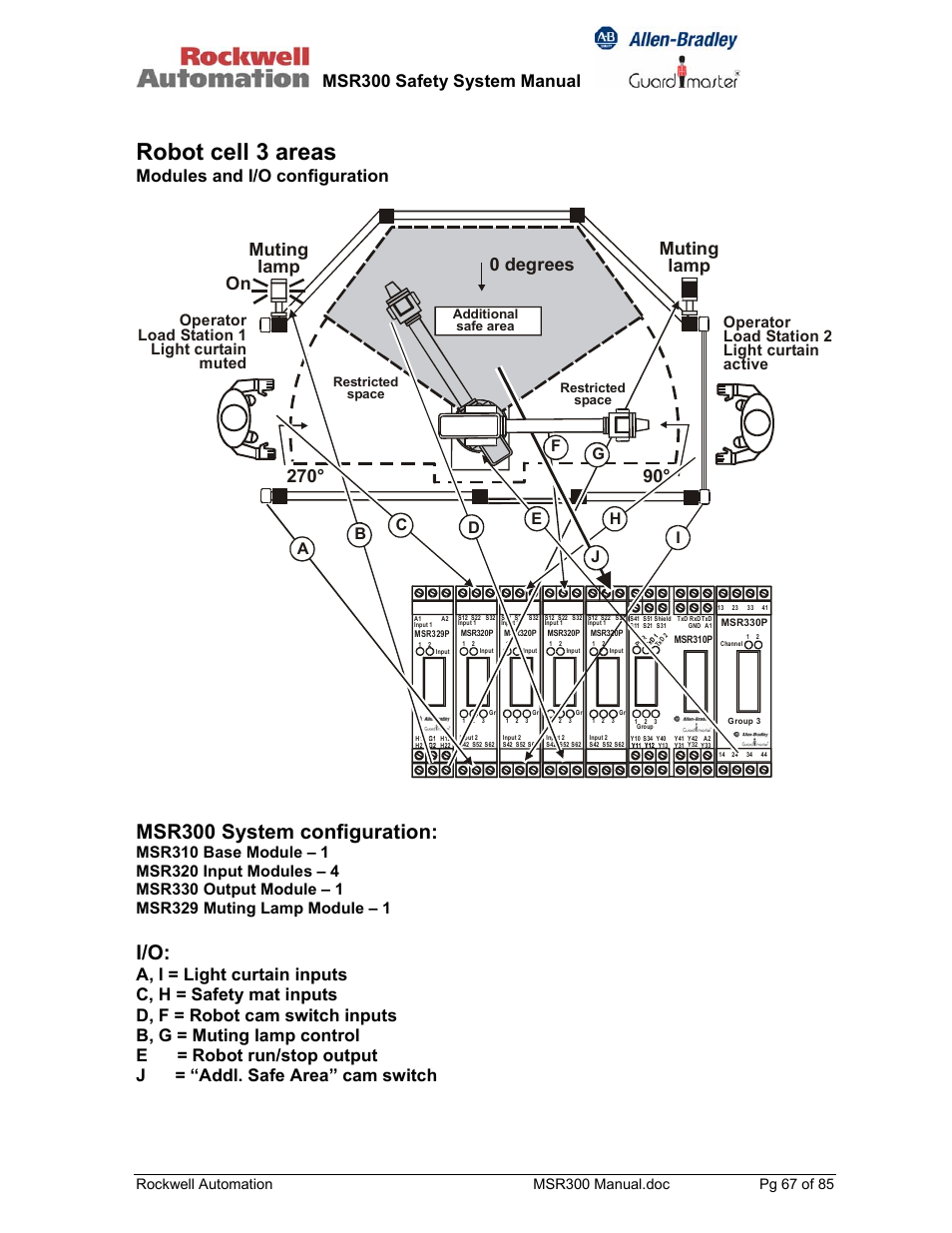

Page 67: Msr300 safety system manual, Modules and i/o configuration
