Therma-Tru COMP 3 Classic-Craft Door Panel Dimensions - Book Size - Manual (Page 9)

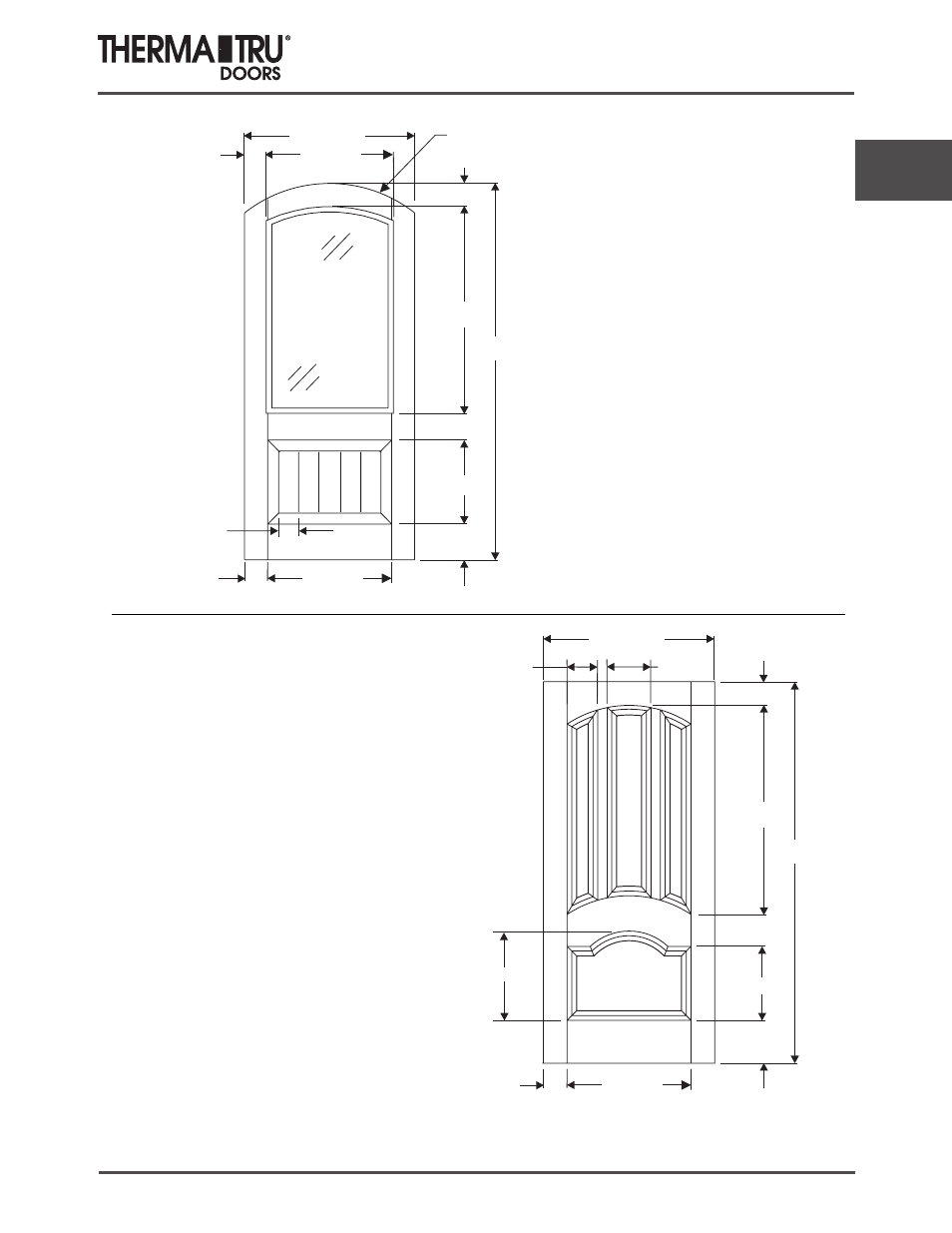

Classic-Craft
Door Panel
Dimensions
Comp 3 2014 (BOOK SIZE) 3.9
6/8 Classic-Craft Canvas Doors
4-57/64”
35-15/16”
43-9/16”
79-1/4”
6-21/32”
15-27/64”
8-23/32”
NOTE: 3/0 only. NOTE: 3/0 only.
NOTE: 3/0 only.
4-39/64”
35-15/16”
27-1/16”
44-1/16”
79-1/4”
5-9/32”
4-27/64”
TYP.
17-33/64”
7-25/32”
R 28-57/64”
26-7/32” 4-55/64”
TYP.
18-19/32”
Wrought Iron Only
4-1/64”
TYP.
26-7/32” 4-55/64”
TYP.
6-29/64”
TYP.
9-9/32”
4 Panel Soft Arch
(Slab-CCV455NR)
(Impact-CCV455H)
Arched 2/3 Arch Lite
1 Panel Plank
(2542A-1W)
(Slab-CCV205A)
Daylight Opening: 24" x 41"
(965 sq.in.)
